Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable

Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable

  • Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable
  • Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable
Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IB1100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Tumble Drop Test Machine Model: IB1100
Implementation Standards: IEC 60068-2-32;GB/T 2423.8-1995 Drop Height: 1000mm(1sets)
Maximum Weight Of Test Piece: 5KG Drop Frequency: 1~40 Times/min (Can Be Set)
Power: Electronic Warranty: 1 Year
Highlight:

Smooth Running Drop Test Machine

,

Settable Drop Test Machine

,

Tumble Drop Test Machine

Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable

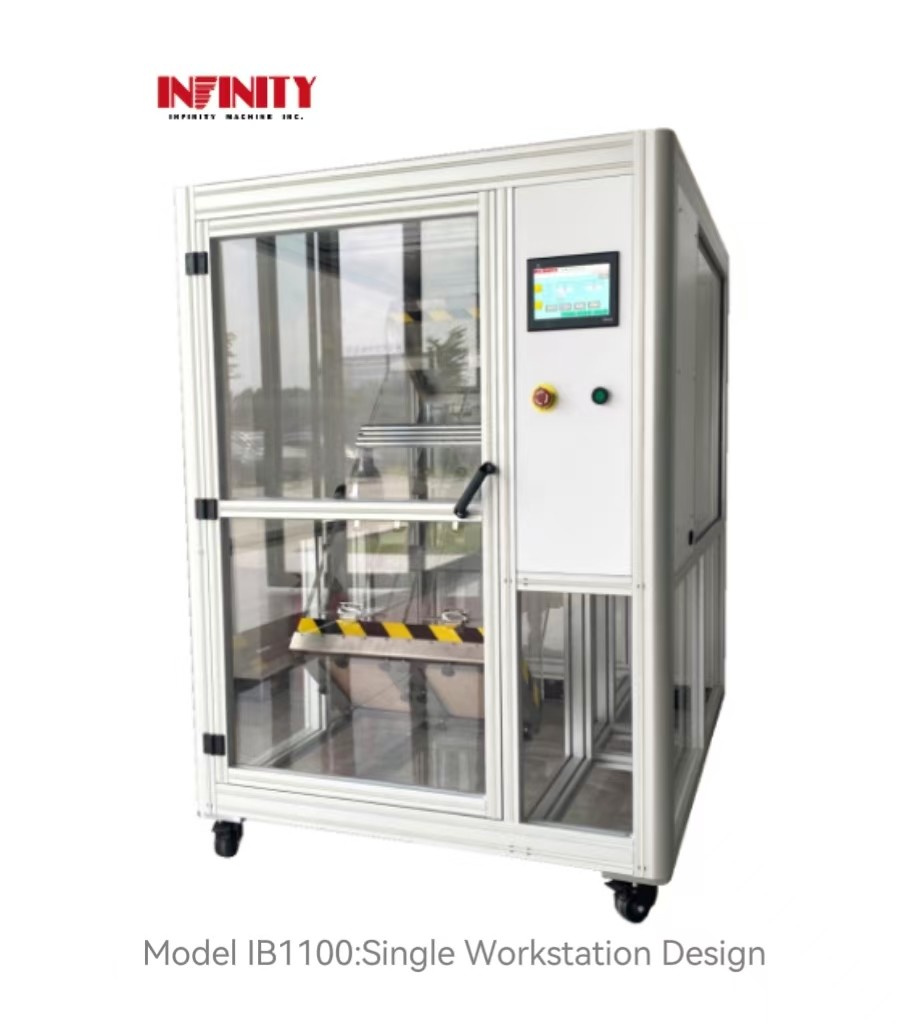

Product Model:IB1100





Equipment use:

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.

Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable 0

Features:

  • Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
  • Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
  • Using touch screen control, you can set the number of tests, test speed, and have a power-down memory function. It will automatically stop when the set number of times is reached.
  • Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Specifications:

Project Specification

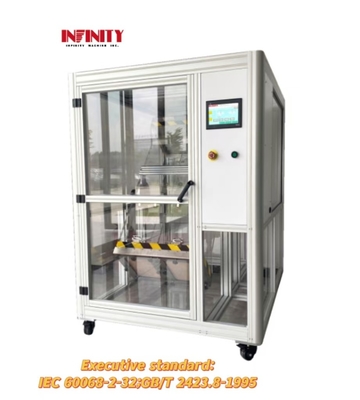

Implementation standards IEC 60068-2-32;GB/T 2423.8-1995
Drop height 1000mm(1sets)
Maximum weight of test piece 5KG
Drop frequency

1~40 times/min (Can be set)

Roller width 300mm
Barrel material Transparent acrylic

Falling plank material

5mm thickness steel plate+19mm thickness solid wood board(or specify)
Number of drops 1~9999999 (Can be set)
Machine size (WxDxH) W950xD1550xH1630mm
Machine weight 278KG
Working power supply AC220V 5A 50Hz
Equipment power 750W





Dimensions:(mm)

Smooth Running Tumble Drop Test Machine Drop Frequency 1~40 times/min Settable 1



Recommended products:

1.Repeated Slight drop Test Machine:This machine is suitable for repeated micro drop testing of electronic products such as mobile phones, tablets, laptops, e-books, etc. Intended to simulate the testing of products that are lightly dropped onto surfaces such as desktops, metal surfaces, marble slabs, etc. during use, in order to evaluate the impact of slight drops on the overall product performance, the durability of the shell, and the resistance of the internal structure of the product to light drops.

2.Carton drop test machine:Suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.

3.Directional drop test machine:Suitable for drop testing of mobile phones, tablets, and various small consumer electronic products, it can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.



Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
