Heavy Duty Simulated Transport Vibration Test Bench Vibration Frequency 1~300rpm

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IZ1515

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200SET PER MONTH

Contact Now

Detailed Product Description

Product Name:	Heavy-duty Simulated Transportation Vibration Test Bench	Model:	IZ1515
Frequency Of Oscillation:	1~300rpm	Display Frequency Accuracy:	±1rpm
Testing Time:	0~999.99 Hours	Mode Of Vibration:	Eccentric Circle Auto-cycles
Power:	Electronic	Warranty:	1 Year
Highlight:	300rpm Vibration Test Bench , Simulated Transport Vibration Test Bench , Heavy Duty Vibration Test Bench

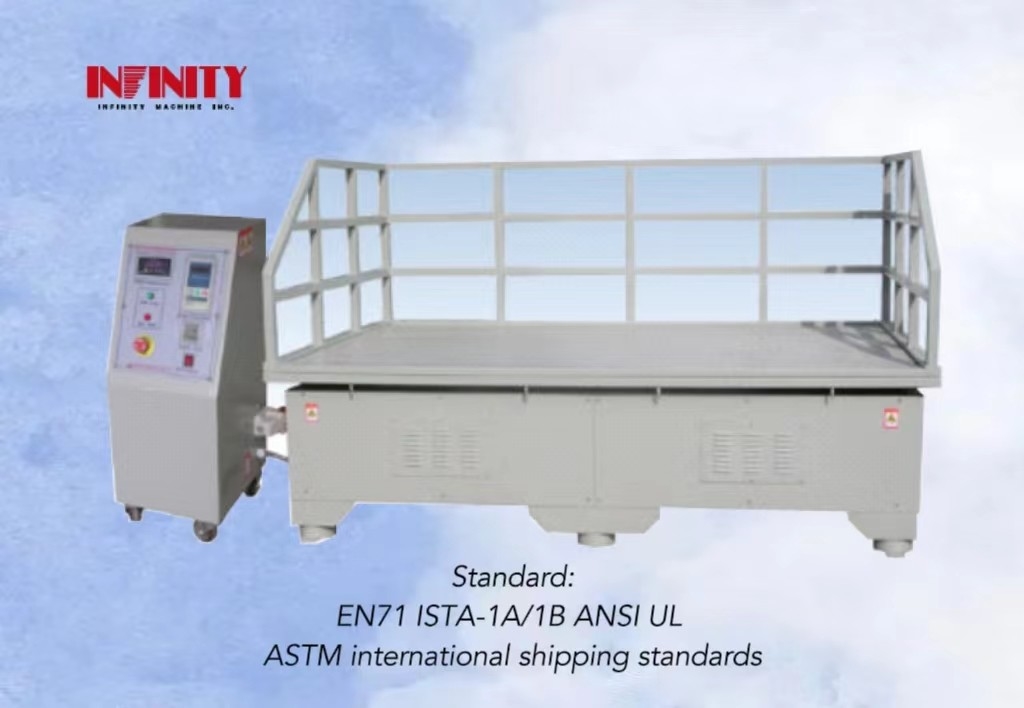

Heavy-duty Simulated Transport Vibration Test Bench Vibration Frequency 1~300rpm

Model Number:IZ1515

Equipment use:

Suitable for transportation testing of toys, electronic parts, household items, IT, communications, furniture, gifts, and packaging that comply with U.S. and European transportation standards.

Heavy Duty Simulated Transport Vibration Test Bench Vibration Frequency 1~300rpm 0

Standard test:

EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.

Features:

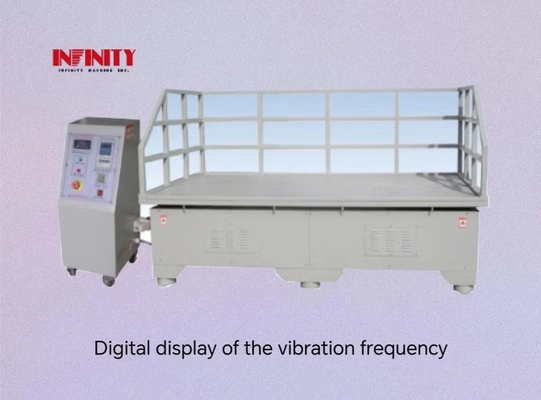

Vibration frequency digital display.
Low noise: Adopt synchronous noiseless belt drive.
Test sample loading and unloading using slides: simple and safe operation.
The bottom plate of the machine is made of heavy-duty channel steel and vibration-absorbing rubber to ensure safe and stable operation.
Cyclic Vibration System: Meets US and European shipping standards.

Specifications:

Model	IZ1515
Frequency of oscillation	1~300rpm
Display frequency accuracy	±1rpm
Amplitude	25.4mm (1 Inch)
Testing time	0~999.99 hours
Mode of vibration	Eccentric circle auto-cycles
Maximum load-bearing capacity	1000kg
Mesa size	2500x 1500x 1500mm
Electrical machinery	15HP (750W)
Equipment Size: (WxDxH)	2600x 1600x 2150mm
Weight	About 3500kg
Source	AC220V 30A or specified by user

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
