| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF1552 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |

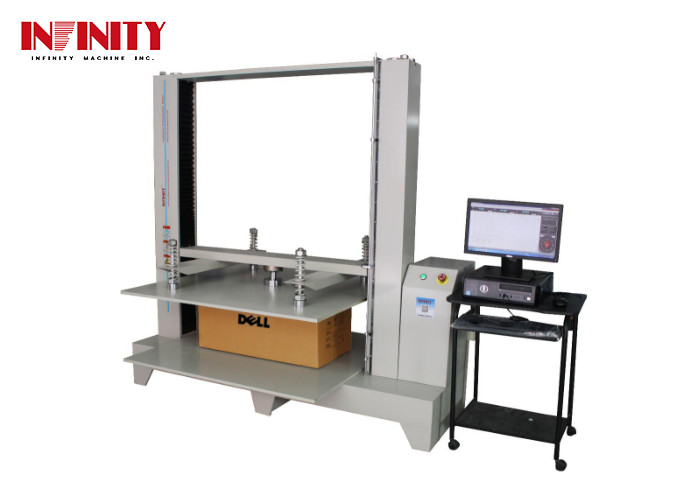

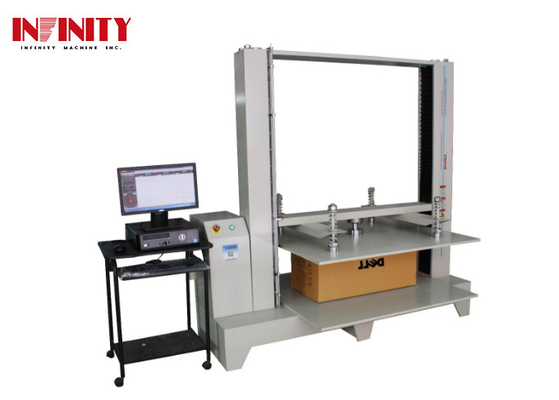

| Product Name: | Package Container Compression Tester | Capacity (optional): | 20KN (2T) |
|---|---|---|---|
| Motor: | AC Servo Motor | Load Accuracy: | ±1% |
| Unit (switchable): | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 | Test Standards: | GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212. |
| Power Supply: | AC220V 50HZ 5A Or Specified By User | Warranty: | 1 Year |
| Highlight: | Package Container Compression Resistance Test Machine,Package Container Compression Resistance Test,20KN Package Test Machine |
||
Model:IF1552
Application:
Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.
Test standards:
GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Features:
1.High stability:
Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.
2.High precision:
Adopt highly precise explosion-proof load cell, repeat tolerance: ±0.01%F.S.
3.Professional control software:
Servo motor control and computer professional software control. It can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .
Specification:
| Model | IF1552 |
| Capacity (optional) | 20KN (2T) |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Load resolution | 1/250,000 |
| Load accuracy | ±1% |
| Test space | 1000x1000x1200mm |
| Test speed | 0.001~200mm/min |
| Stroke resolution | 0.001mm |
| Software | Special close-loop control software |
| Motor | AC servo Motor |
| Dimension (WxDxH) | 1710x1000x2000mm |
| Weight | 1250kg |
| Power supply | AC220V 50HZ 5A or specified by user |
The test introduction
1. The compression test.
This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.
1. 1.1The test setting interface.
1.2 The testing interface and real-time testing graph.
The test graph can be saved and to edit the test report.
There are two graphs can be displayed, Force vs displacement, Force vs Time
1.3 The testing report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.
2.The stacking test.
2.1 The stacking test setting and program interface.
2.2. The stacking testing interface and the testing real-time graph.
2.3. The test report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.
