| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF1551 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Product Name: | Package Container Compression Tester | Warranty: | 1 Year |
|---|---|---|---|
| Test Standards: | GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212. | Power: | Electronic |
| Capacity: | 10KN,20KN | ||
| Highlight: | Carton Box Compression Strength Testing Machine,Container Block Stacking Package Testing Machine,10KN Package Test Machine |
||

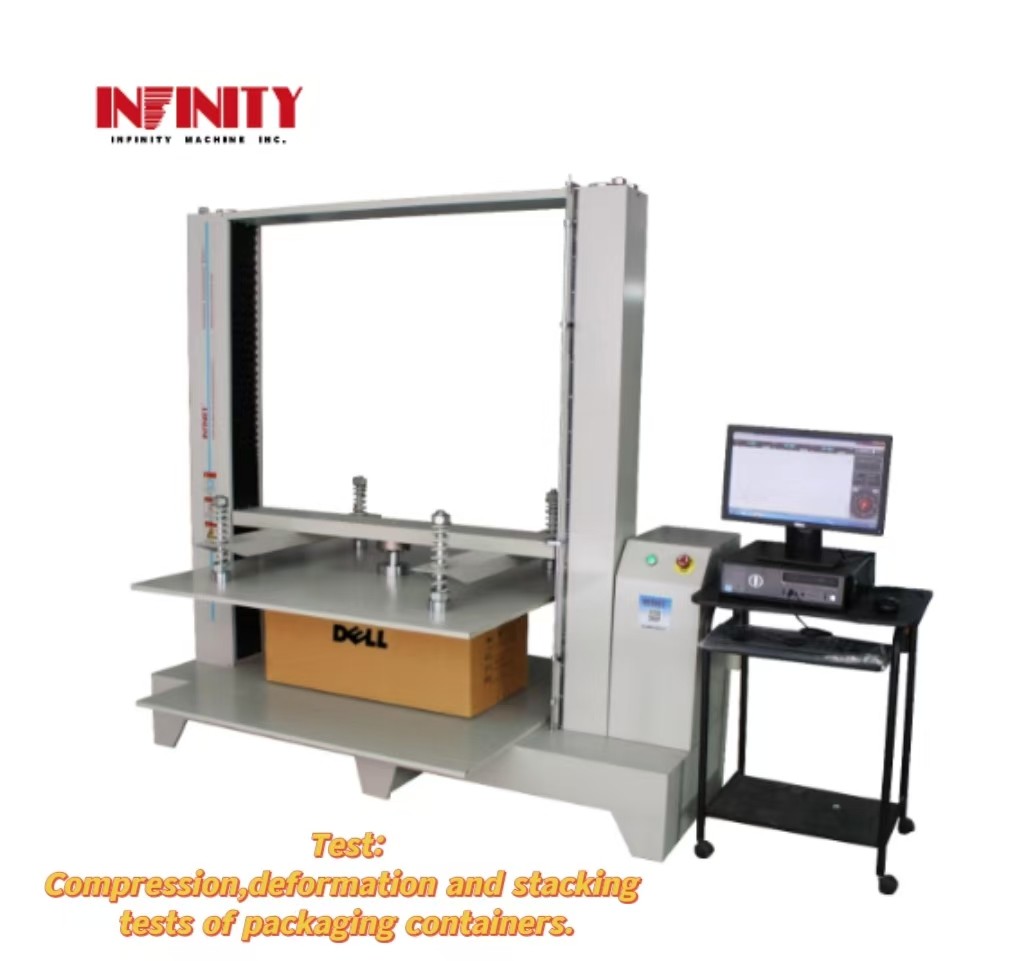

Package Container Compression Tester
Model:IF1551
Application:

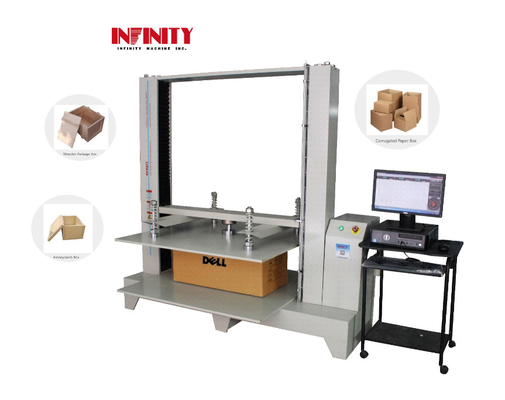

Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.
Test standards:
GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Features:
High stability:
Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.
High precision:
Adopt highly precise explosion-proof load cell, repeat tolerance: ±0.01%F.S.
Professional control software:
Servo motor control and computer professional software control. It can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .
Specification:
Model | IF1551 |
Capacity (optional) | 10KN |
Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
Load resolution | 1/250,000 |
Load accuracy | ±1% |
Test space | 1000x1000x1200mm |
Test speed | 0.001~200mm/min |
Stroke resolution | 0.001mm |
Software | Special close-loop control software |
Motor | AC servo Motor |
Dimension (WxDxH) | 1710x1000x2000mm |
Weight | 1250kg |
Power supply | AC220V 50HZ 5A or specified by user |
The test introduction
1. The compression test.
This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.
1.1 The test setting interface.
1.2 The testing interface and real-time testing graph.
The test graph can be saved and to edit the test report.
There are two graphs can be displayed, Force vs displacement, Force vs Time
1.3 The testing report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.
2.The stacking test.
2.1 The stacking test setting and program interface.
2.2. The stacking testing interface and the testing real-time graph.
2.3. The test report.
The parameters in the test report can be edited, the testing result is auto created.
The testing report can be printed and also can be converted to be PDF format.
The Carton Compression Tester product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to assist with installation, troubleshooting, and maintenance of the machine. We also offer training and consultation services to help users maximize the capabilities of the machine. Additionally, we provide calibration and repair services to ensure accurate and reliable test results. Our goal is to provide our customers with the highest level of support and service to ensure their satisfaction with the Compression Test Machine product.
Packing and Shipping:
Product Packaging:
The Carton Compression Tester will be securely packed in a sturdy cardboard box with foam inserts to prevent any damage during shipping.
Shipping:
The Carton Compression Tester will be shipped via a reputable freight carrier to ensure timely and safe delivery. The estimated delivery time is 7-14 business days depending on the location of the customer.
FAQ:
Q: What is the brand name of this Carton Compression Tester?
A: The brand name of this machine is Infinity Machine.
Q: What is the model number of this Carton Compression Tester?
A: The model number of this machine is IF1551.
Q: Where is this Carton Compression Tester made?
A: This Compression Test Machine is made in China.
Q: What certifications does this Carton Compression Tester have?
A: This Compression Test Machine has CE and ISO certifications.
Q: What is the packaging and delivery time of this Carton Compression Tester?
A: The packaging details of this machine include clear sheet, sponge, and wood carton. The delivery time is usually 20-30 days after order confirmation.
Q: What are the payment terms and supply ability of this Carton Compression Tester?
A: The payment terms for this machine include TT, PayPal, Moneygram, and other options. The supply ability is 200 sets per month, and the price is negotiable.
