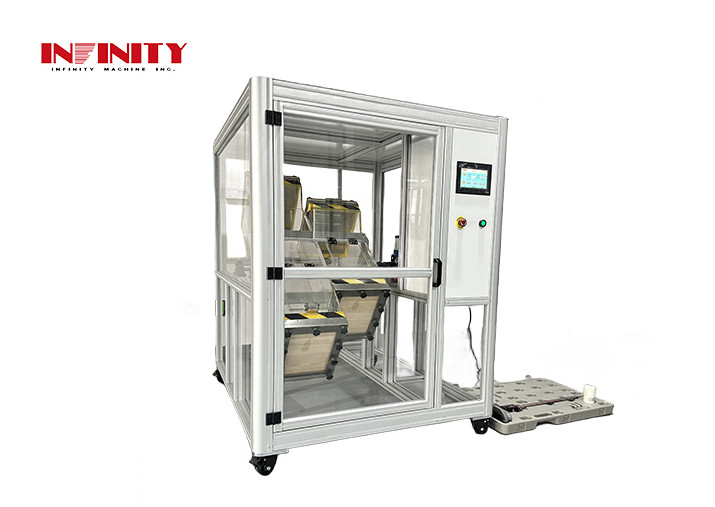

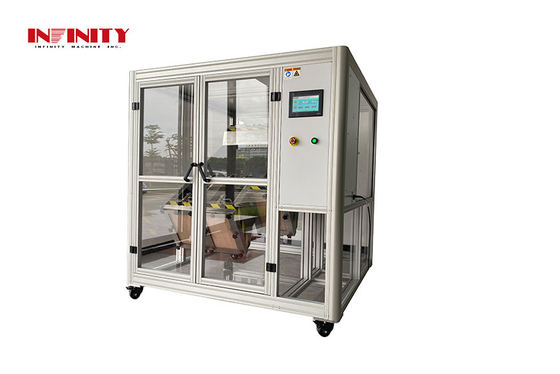

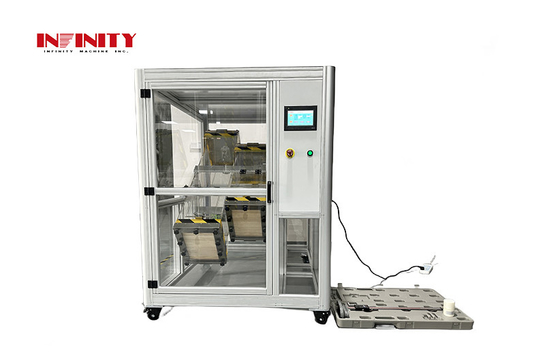

Tumble Drop Test Machine Rolling barrel drop test machine

Tumble Drop Test Machine Rolling barrel drop test machine

Tumble Drop Test Machine Rolling barrel drop test machine
Tumble Drop Test Machine Rolling barrel drop test machine
Tumble Drop Test Machine Rolling barrel drop test machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IB1151
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 35 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Products: Tumble Drop Test Machine Implementation Standards：: IEC 60068-2-32；GB/T 2423.8-1995
Drop Height：: 500（1set）1000mm（1set） Maximum Weight Of Test Piece：: 5KG
Drop Frequency：: 1~40 Times / Min (customized) Roller Width：: 300mm
Barrel Material：: Transparent Acrylic Falling Plank Material：: 3mm Thickness Steel Plate+19mm Thickness Solid Wood Board (or Specified)）
Number Of Drops：: 1~9999999 (customized) Machine Size (WxDxH)：: W1445xD1560xH1650mm
Machine Weight：: 378KG Working Power Supply：: AC220V 5A 50Hz
Equipment Power:: 750Ｗ
Highlight:

Rolling barrel drop test machine

,

Drop Test Machine

,

Tumble Drop Test Machine

                                                       Tumble Drop Test Machine

                                                                    Product Model: IB1151

                   Tumble Drop Test Machine Rolling barrel drop test machine 0



Equipment use:

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.

Features:

  • Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
  • Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
  • Using touch screen control, you can set the number of tests, test speed, and have a power-down memory function. It will automatically stop when the set number of times is reached.
  • Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Specifications:

Tumble Drop Test Machine Rolling barrel drop test machine 1

Dimensions (mm)



Tumble Drop Test Machine Rolling barrel drop test machine 2





Working Video:



Tumble Drop Test Machine Rolling barrel drop test machine 3
