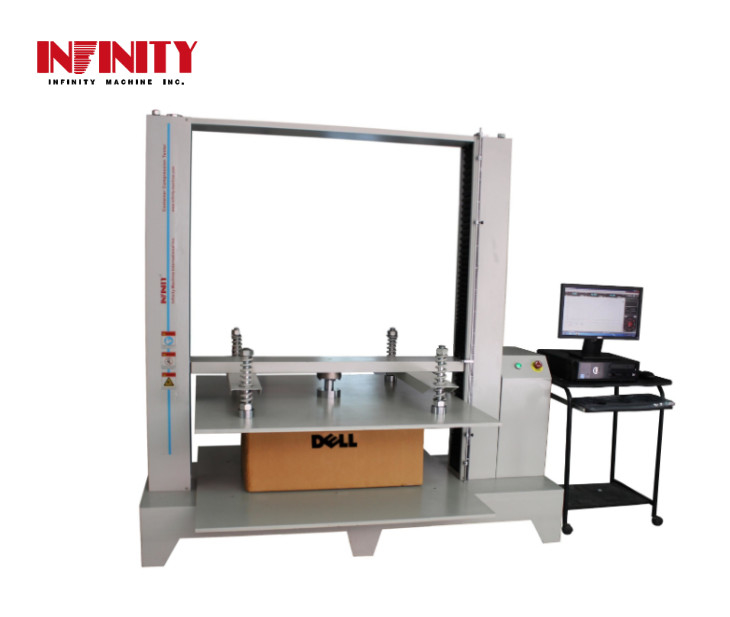

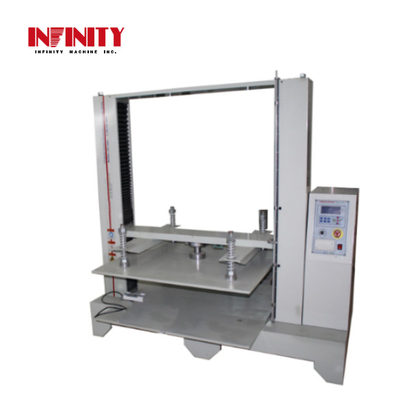

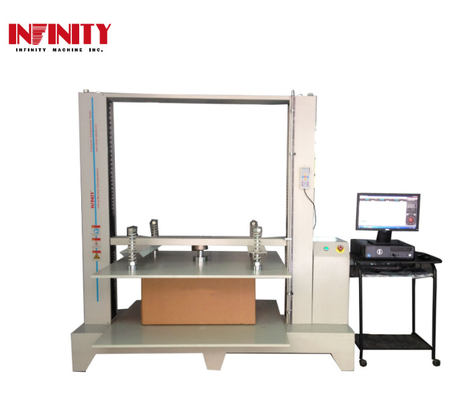

10KN 20KN Manufacturer high quality carton compression testing machine

10KN 20KN Manufacturer high quality carton compression testing machine

  • 10KN 20KN Manufacturer high quality carton compression testing machine
  • 10KN 20KN Manufacturer high quality carton compression testing machine
  • 10KN 20KN Manufacturer high quality carton compression testing machine
10KN 20KN Manufacturer high quality carton compression testing machine
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IF1551
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Name: Carton Compression Testing Machine Model: IF1551
Capacity (optional): 10KN (Customized) Unit (switchable): N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
Load Resolution: 1/250,000 Load Accuracy: ±1%
Test Space: 1000x1000x1200mm Test Speed: 0.001~200mm/min
Stroke Resolution: Stroke Resolution Software: Special Close-loop Control Software
Motor: AC Servo Motor Dimension (WxDxH): 1710x1000x2000mm
Weight: 1250kg Power Supply: AC220V 50HZ 5A Or Specified By User

                               Carton compression testing machine

                                                     Model :IF1551



 Application:

Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.

 Test standards:

GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.

Features:

High stability:

Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.

High precision:

Adopt highly precise explosion-proof load cell, repeat tolerance: ±0.01%F.S.

Professional control software:

Servo motor control and computer professional software control. It can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .

Specification:

10KN 20KN Manufacturer high quality carton compression testing machine 0



   The test introduction



1. The compression test.

This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.



1.   1.1 The test setting interface.

10KN 20KN Manufacturer high quality carton compression testing machine 1



1.2 The testing interface and real-time testing graph.

The test graph can be saved and to edit the test report.

10KN 20KN Manufacturer high quality carton compression testing machine 2



There are two graphs can be displayed, Force vs displacement, Force vs Time

1.3 The testing report.

The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.



10KN 20KN Manufacturer high quality carton compression testing machine 3

2.The stacking test.

   2.1 The stacking test setting and program interface.

10KN 20KN Manufacturer high quality carton compression testing machine 4



2.2. The stacking testing interface and the testing real-time graph.

10KN 20KN Manufacturer high quality carton compression testing machine 5



2.3. The test report.

    The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.

10KN 20KN Manufacturer high quality carton compression testing machine 6
