Name: Simple Safe Heavy Duty Simulated Transportation Vibration Test Bench For Easy Loading And Unloading
Brand: Infinity Machine International Inc.
SKU: IZ1515
Price: 100000.00 USD
Availability: InStock

Home Products Package Test Machine

Simple Safe Heavy Duty Simulated Transportation Vibration Test Bench For Easy Loading And Unloading

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	CE ISO
Model Number:	IZ1515

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	L/C, T/T
Supply Ability:	200SET PER MONTH

Contact Now

Detailed Product Description

Product Name:	Heavy-duty Simulated Transportation Vibration Test Bench	Model:	IZ1515
Equipment Size： (WxDxH):	2600x1600x2150mm	Weight:	About 3500kg
Power Supply:	AC220V 30A Or Specified By User
Highlight:	Simple Simulated Transportation Vibration Test Bench , Safe Simulated Transportation Vibration Test Bench , Heavy Duty Simulated Transportation Vibration Bench

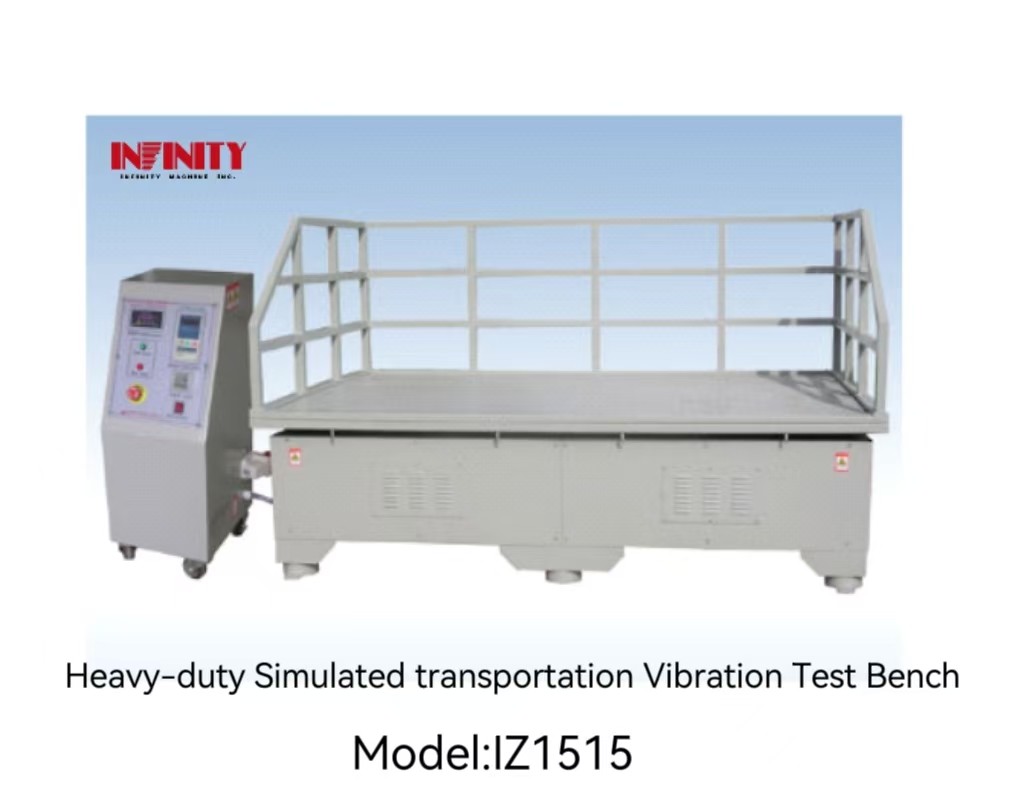

Heavy-duty Simulated Transportation Vibration Test Bench

Model Number:IZ1515

Equipment use:

Suitable for transportation testing of toys, electronic parts, household items, IT, communications, furniture, gifts, and packaging that comply with U.S. and European transportation standards.

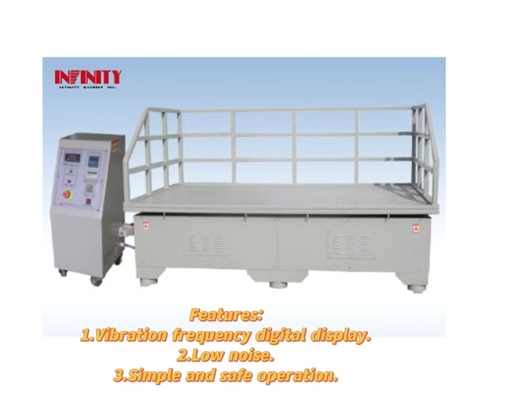

Simple Safe Heavy Duty Simulated Transportation Vibration Test Bench For Easy Loading And Unloading 0

Standard test:

EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.

Features:

1.Vibration frequency digital display

2.Low noise: Adopt synchronous noiseless belt drive.

3.Test sample loading and unloading using slides: simple and safe operation.

4.The bottom plate of the machine is made of heavy-duty channel steel and vibration-absorbing rubber to ensure safe and stable operation.

5.Cyclic Vibration System: Meets US and European shipping standards.

Specifications:

Vibration frequency	1~300rpm
Display frequency accuracy	±1rpm
Amplitude	25.4mm (1 Inch)
Testing time	0~999.99hours
Vibration mode	Eccentric circle automatic cycle
Weight capacity	1000kg
Table size	2500x1500x1500mm
Motor	15HP (750W)
