4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply

4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply

4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply
4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply
4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply
Product Details:
Place of Origin: China
Brand Name: Infinity
Certification: CE,ISO
Model Number: ID6001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Package
Delivery Time: 15-30DAYS
Supply Ability: 100Sets/Month
Contact Now
Detailed Product Description
Impact Plate Size:: W1600×H1600 Mm Equipment Size:: L7600× W1600× H 1950 Mm
Maximum Weight Of Test Piece:: 1500Kg Impact Speed Range:: 1.305 ~ 3.78 M/s
Impact Velocity Error:: ≤±5% Maximum Size Of Test Piece Allowed:: 1600x1600x1600( L×W×H )
Name: Packaging Incline Impact Testing Machine Device Power Supply:: AC220V 50HZ(or Specify)
High Light:

AC220V 50HZ Package Test Machine

,

4000mm Package Test Machine

4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply

Product Description:

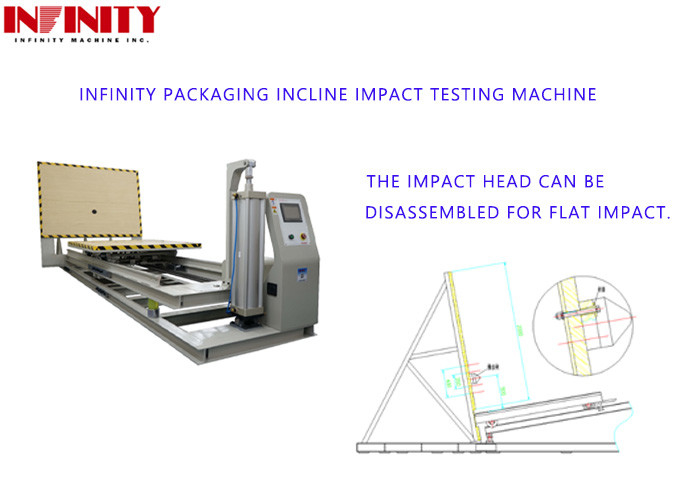

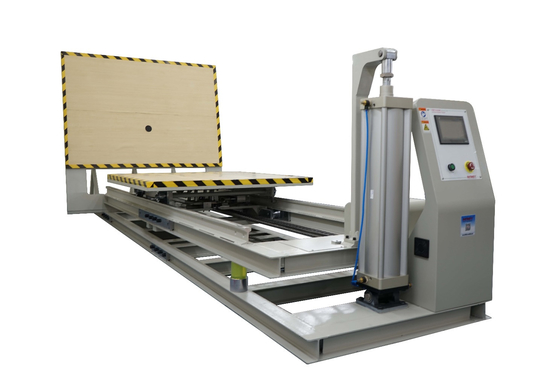

Package Test Machine

The Package Test Machine is a state-of-the-art testing equipment designed to assess the durability and safety of packaging materials and products. With its advanced features and precise measurements, this machine is the perfect solution for companies looking to ensure the quality of their packaging.

Equipment Size and Capabilities

The Package Test Machine has an equipment size of L7600× W1600× H 1950 Mm, making it compact and easy to fit into any testing facility. It can handle a maximum sliding length of test piece of 4000mm, which can also be customized according to the needs of the user. This allows for versatile testing of different packaging sizes and shapes, making it suitable for a wide range of industries.

The maximum weight of test piece that this machine can handle is 1500Kg, ensuring that it can accurately assess the performance of heavy and bulky packaging materials. This also makes it suitable for testing a variety of products, from small household items to large industrial equipment.

Precision and Accuracy

The Package Test Machine is equipped with advanced technology that ensures precise and accurate results. The angle between the impact surface and the track plane is set at 90±1°, in accordance with the ASTM standards. This ensures that the impact is delivered at the desired angle, resulting in consistent and reliable data.

Moreover, the machine has an impact velocity error of ≤±5%, which is well within the acceptable range set by the ISTA Drop Test Machine and ASTM Drop Test Machine standards. This ensures that the results obtained are highly reliable and can be used for making important decisions regarding the quality of packaging materials and products.

Key Features and Benefits

The Package Test Machine has a range of features that make it the ideal choice for companies looking to test their packaging materials and products. Some of its key features include:

  • Compact size, easy to fit into any testing facility
  • Customizable sliding length to accommodate various packaging sizes and shapes
  • High weight capacity for testing heavy and bulky products
  • Precise angle and impact velocity for accurate and reliable results
  • Compliant with ASTM and ISTA standards for packaging testing

By investing in the Package Test Machine, companies can ensure that their packaging materials and products meet the highest quality standards, resulting in increased customer satisfaction and reduced product returns due to packaging issues.



Features:

  • Product Name: Package Test Machine
  • The angle between the impact surface and the track plane: 90±1°
  • Name: Packaging Incline Impact Testing Machine
  • Impact speed range: 1.305 ~ 3.78 M/s
  • Maximum size of test piece allowed: 1600x1600x1600 (L×W×H)
  • Impact velocity error: ≤±5%

Key Features:

  • Package drop testing system
  • Packaging Materials Evaluation Instrument
  • Packaging Performance Tester


Technical Parameters:

Model ID6001
Name Packaging Incline Impact Testing Machine
The angle between the impact surface and the track plane 90±1°
Equipment size L7600×W1600×H1950 mm
Impact speed range 1.305 ~ 3.78 m/s
Maximum sliding length of test piece 4000 mm (or Customized)
Maximum size of test piece allowed 1600x1600x1600 (L×W×H)
Impact plate size W1600×H1600 mm
Impact velocity error ≤±5%
Device power supply AC220V 50HZ (or Specify)
4000mm Sliding Length Package Test Machine for AC220V 50HZ Device Power Supply 0

Applications:

Package Test Machine - Infinity ID6001
Brand Name: Infinity

Model Number: ID6001

Place of Origin: China

Certification: CE,ISO

The Package Test Machine - Infinity ID6001 is a state-of-the-art equipment designed for testing the packaging performance of various products. It is widely used in industries such as electronics, food and beverage, pharmaceuticals, and consumer goods to ensure that their products are well-protected during transportation and handling.

Application Scenarios

The Package Test Machine is suitable for testing the packaging performance of various products, including:

  • Electronics - such as smartphones, laptops, and other electronic devices
  • Food and Beverage - including bottles, cans, and other packaged food products
  • Pharmaceuticals - such as medicine bottles and packages
  • Consumer Goods - including cosmetics, toys, and other packaged products
Package Testing Standards

The Infinity ID6001 Package Test Machine is designed to meet the standards of International Safe Transit Association (ISTA) Packaging Testing. It can be used to perform various tests, including:

  • Drop Test - to simulate the impact of a package during handling and transportation
  • Compression Test - to test the resistance of a package to vertical pressure
  • Stacking Test - to assess the ability of a package to withstand the weight of other packages during storage and transportation
  • Vibration Test - to simulate the vibration that occurs during transportation
Product Features
Impact plate size: W1600×H1600 Mm
Impact speed range: 1.305 ~ 3.78 M/s
Maximum weight of test piece: 1500Kg
Equipment size: L7600× W1600× H 1950 Mm
Maximum sliding length of test piece: 4000mm (or Customized)

Customization:

Brand Name: Infinity
Model Number: ID6001
Place of Origin: China

Certification: CE, ISO

Our Package Test Machine, also known as the Packaging Test Machinery, is designed to provide accurate and reliable testing for your packaging materials. With our ISTA Drop Test Machine, you can ensure the strength and durability of your packaging, giving you peace of mind when it comes to transporting your products.

Our machine is equipped with the following features:

  • Impact plate size: W1600×H1600 mm
  • Impact speed range: 1.305 ~ 3.78 m/s
  • Maximum size of test piece allowed: 1600x1600x1600 (L×W×H)
  • Device power supply: AC220V 50HZ (or Specify)
  • Maximum sliding length of test piece: 4000mm (or Customized)

Our Package Strength Testing Device is perfect for any company looking to ensure the quality of their packaging. With our customizable options, we can meet your specific needs and requirements. Trust us to provide you with the best packaging testing solution on the market.
