Product Description:

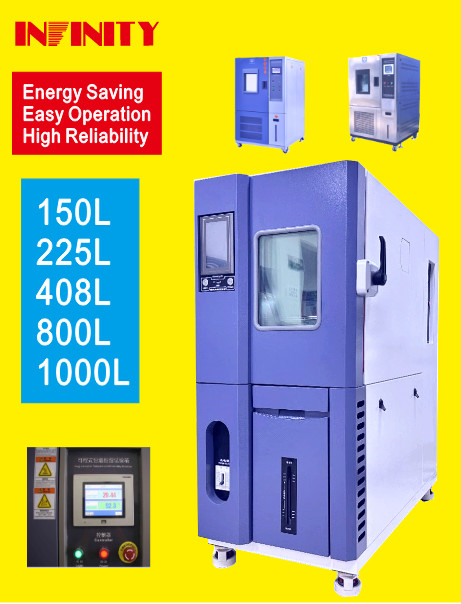

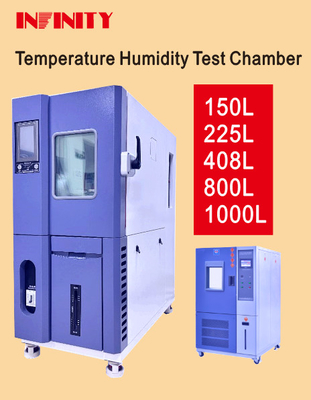

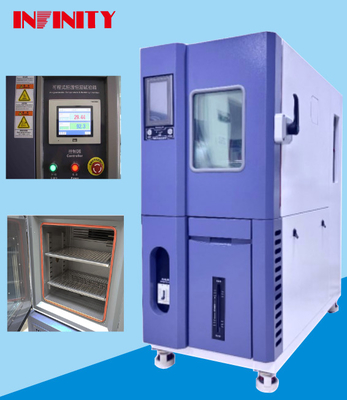

Constant Temperature and Humidity Test Chamber
Product Overview
The Constant Temperature and Humidity Test Chamber is a high quality and durable testing equipment designed for the simulation of various environmental conditions to evaluate the performance and reliability of products. It is widely used in industries such as electronics, aerospace, automotive, and pharmaceuticals.
| Model |
IE10A1 150L |
IE10A1 225L |
IE10A1 408L |
IE10A1 800L |
IE10A1 1000L |
| Temp. range |
-20℃ ～ +150℃ |
| Temp. fluctuation |
±0.5℃ |
|
Temp. uniformity
|
≦2.0℃ |
| Heating rate |
from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) |
| Temp.decrease rate |
from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) |
| Humidity control range |
20%R.H～98%R.H |
| Humidity deviation |
±3.0％RH(＞75％RH)
±5.0％RH(≤75％RH)
|
| Humidity evenness |
±3.0％RH (no-load test) |
| Humidity fluctuation |
±1.0％RH |
|
Inner box size
WxHxD(mm)
|
500x600x500 |
500x750x600 |
600×850×800 |
1000×1000×800 |
1000×1000×1000 |
|
Outside box size
WxHxD(mm)
|
720×1500×1270 |
720×1650×1370 |
820×1750 ×1580 |
1220×1940 ×1620 |
1220×1940 ×1820 |
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole
● Inner wall material :SUS304# stainless steel plate.
● Insulation material: hard polyurethane foam insulation layer + glass fiber.
|
| Door |
For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. |
| Inspection window |
The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. |
| Lighting device |
1 set LED lighting device, installed on the window. |
| Sample holder |
Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. |
| Refrigeration compressor |
France Tecumseh fully closed compressor |
| Refrigerant |
Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic |
| Condenser system |
air-cooled |
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection;
Tank low water level warning.
|
| Power supply |
AC220V;50Hz;4.5KW |
AC380;V50Hz;6KW |
AC380;V50Hz;7KW |
AC380;V50Hz;9KW |
AC380;V50Hz;11KW |
|
Key Features
- Programmable constant temperature and humidity control for precise and stable testing environment
- High quality carbon steel and SUS304# stainless steel materials for durability and corrosion resistance
- Insulation material of hard polyurethane foam and glass fiber for efficient temperature and humidity control
- Adjustable sample holder with 2 layers and a weight-bearing capacity of 30kg per layer
- Wide humidity control range of 20%R.H～98%R.H for versatile testing applications
- Air-cooled condenser system for efficient cooling and energy-saving operation
Applications:
INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Product Description
The INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber is a high-quality, reliable and efficient product designed for various testing needs. This chamber is designed to provide precise and stable conditions of temperature and humidity for a wide range of applications, making it an essential tool for industries such as electronics, aerospace, pharmaceuticals, and more.
Application
The INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber is ideal for testing the effects of temperature and humidity on various products and materials, including but not limited to:
- Electronic components and devices
- Pharmaceutical products
- Food and beverage products
- Automotive parts
- Plastic and rubber materials
- Textiles and fabrics
Features
- Programmable Constant Temperature And Humidity: The chamber allows for precise control of temperature and humidity, with a humidity uniformity of ±3.0％RH (no load) and a humidity fluctuation of ±1.0％RH.
- Energy Saving And Consumption Reduction: The chamber uses a gas-liquid bypass mode to adjust the cooling capacity, ensuring energy efficiency and reducing consumption.
- Easy To Operate: Featuring a programmable color LCD touch controller, the chamber allows for easy operation and flexible recording and processing of experimental data.
- High Reliability: The key parts of the chamber are imported, ensuring a long service life and high reliability.
Specifications
- Product Name: Programmable Constant Temperature And Humidity Test Chamber
- Humidity Uniformity: ±3.0％RH (no load)
- Humidity Fluctuation: ±1.0％RH
- Humidity Deviation: ±3.0％RH (>75％RH) and ±5.0％RH (≤75％RH)
Experience the precision, reliability and efficiency of the INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber for all your testing needs. Contact us today to learn more and place your order.
Customization:
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Humidity Uniformity: ±3.0％RH (no load)
Humidity Deviation: ±3.0％RH (>75％RH) ±5.0％RH (≤75％RH)
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95.
Temperature Range: -20℃ ～ +150℃
Warm-keeping Box:
- Outer Chamber Material: High quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole.
- Inner Chamber Material: SUS304# stainless steel plate.
- Insulation Material: Hard polyurethane foam insulation layer + glass fiber.
Packing and Shipping:
constant temperature and humidity test chamber Packaging and Shipping
The constant temperature and humidity test chamber is carefully packed and shipped to ensure safe delivery to our customers. Below is the detailed information about the packaging and shipping process:
- The test chamber is wrapped in bubble wrap to provide extra protection during transportation.
- It is then placed in a sturdy and durable cardboard box.
- The box is sealed with high-quality packaging tape to prevent any damage during shipping.
- For international orders, the test chamber is placed in a wooden crate to meet packaging requirements and ensure safe delivery.
- Labels with clear handling instructions and shipping information are attached to the package.
- The package is then shipped via a reliable and trusted courier service.
Customers can also choose to use their preferred shipping method and provide us with their shipping account details for a seamless delivery process.
We strive to ensure that our customers receive their constant temperature and humidity test chamber in perfect condition and on time.
FAQ:
- Q: What is the brand name of this product?
A: The brand name is INFINITY.
- Q: What is the model number of this product?
A: The model number is IE10A1.
- Q: Where is this product made?
A: This product is made in China.
- Q: What certifications does this product have?
A: This product is certified with CE and ISO.
- Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1 set.
- Q: Can the price of this product be negotiated?
A: Yes, the price can be negotiated.
- Q: How is this product packaged?
A: This product is packaged with clear sheet, sponge, and wood carton.
- Q: How long is the delivery time for this product?
A: The delivery time is 20-30 days after order confirmed.
- Q: What are the available payment terms for this product?
A: The available payment terms include TT, PAYPAL, Moneygram, and others.
- Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets per month.
