| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Temperature Range: | -40℃ ～ +150℃ |
|---|---|---|---|
| Humidity Control Range: | 20%R.H～98%R.H | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
| Humidity Uniformity: | ±3.0％RH（no Load） | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electro Thermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) |

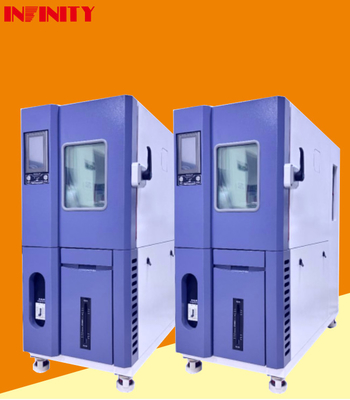

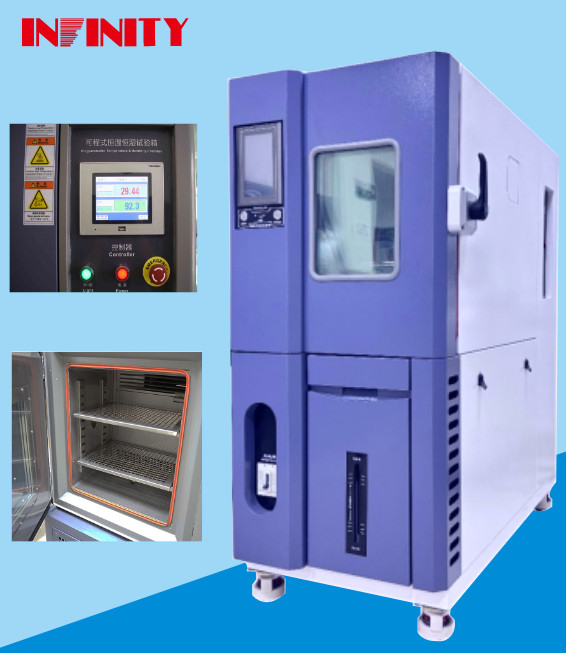

Height Adjustable Constant Temperature Humidity Test Chamber with 1 LED Lighting Device
A programmable constant temperature and humidity test chamber is a vital tool for conducting climatic tests and simulating different environmental conditions to evaluate the performance and reliability of products. Our company is a leading supplier of climatic test chambers, providing high-quality and efficient testing solutions for various industries.
The constant temperature and humidity test chamber is designed for precise and stable control of temperature and humidity levels to meet the testing needs of different products. It is equipped with advanced technology and high-quality materials to ensure accurate and reliable results.
The outer chamber is made of high-quality carbon steel plate with an electrostatic color spray treatment, providing a durable and corrosion-resistant surface. The left side of the box has a φ50mm diameter hole for easy access. The inner material is made of SUS304# stainless steel plate, ensuring a hygienic and clean testing environment. The insulation material used is hard polyurethane foam insulation layer and glass fiber, providing excellent insulation and energy efficiency.
The humidity control range of our constant temperature and humidity test chamber is 20%R.H～98%R.H, allowing for precise control and adjustment of humidity levels to simulate different environmental conditions.
Our constant temperature and humidity test chamber comes in various models to accommodate different testing needs. The available models are IE10 150L, IE10 225L, IE10 408L, IE10 800L, and IE10 1000L.
The temperature range of our test chamber is -40℃ ～ +150℃, providing a wide range of temperature settings to simulate extreme environmental conditions.
The air-cooled condenser system ensures efficient cooling and maintains a stable temperature and humidity level within the chamber. It also helps to reduce water consumption and saves energy.
Our constant temperature and humidity test chamber is a reliable and efficient tool for conducting climatic tests and ensuring the quality and durability of products. Contact us today to learn more about our products and how we can meet your testing needs.
The INFINITY IE10 is a programmable constant temperature and humidity test chamber, designed and manufactured in China. It is a top-of-the-line product that meets all international standards and certifications, making it a reliable choice for various testing needs.
The constant temperature and humidity test chamber is a versatile laboratory equipment that is used in various industries for testing the effects of temperature and humidity on different products. Some of the common applications and scenarios where this product is used include:
The INFINITY IE10 is a reliable and efficient product that can accurately simulate and control temperature and humidity conditions for various testing needs. Its compact design and advanced features make it a popular choice among scientists, researchers, and engineers across different industries.
| Model | IE10 150L | IE10 225L | IE10 408L | IE10 800L | IE10 1000L | ||||
| Temp. range | -40℃ ～ +150℃ | ||||||||
| Temp. fluctuation | ±0.5℃ | ||||||||
| Temp. uniformity | ≦2.0℃ | ||||||||
| Heating rate | from -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Temp. decrease rate | from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Humidity control range | 20%R.H～98%R.H | ||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
||||||||
| Humidity uniformity | ±3.0％RH(no load) | ||||||||
| Humidity fluctuation | ±1.0％RH | ||||||||
|
|
|||||||||
|
Inside dimensions: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | ||||
|
Outside box size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | ||||
| Warm-keeping box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | ||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electro thermal coated glass can effectively keep heat and prevent condensation. | ||||||||
| Lighting device | 1 LED lighting device, installed on the window. | ||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | ||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | ||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | ||||||||
| Condenser system | air-cooled | ||||||||
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. | ||||||||
| Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | ||||
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets/month
For more information about our customizable constant temperature and humidity test chamber, please contact us.
Our constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers:
For shipping, we offer both air and sea freight options to accommodate our customers' needs:
Once shipped, we will provide our customers with the necessary tracking information to monitor the delivery of their test chamber. Our goal is to ensure that our products arrive in perfect condition and on time.
