Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE10 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
---|---|---|---|
Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electro Thermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Foam Insul |
Humidity Fluctuation: | ±1.0%RH | Humidity Deviation: | ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
Heating Rate: | From -40℃ To +100℃ Within 60min (No Load, Ambient Temperature +25℃) | Power: | AC220V;50Hz;4.5kw-11kw |

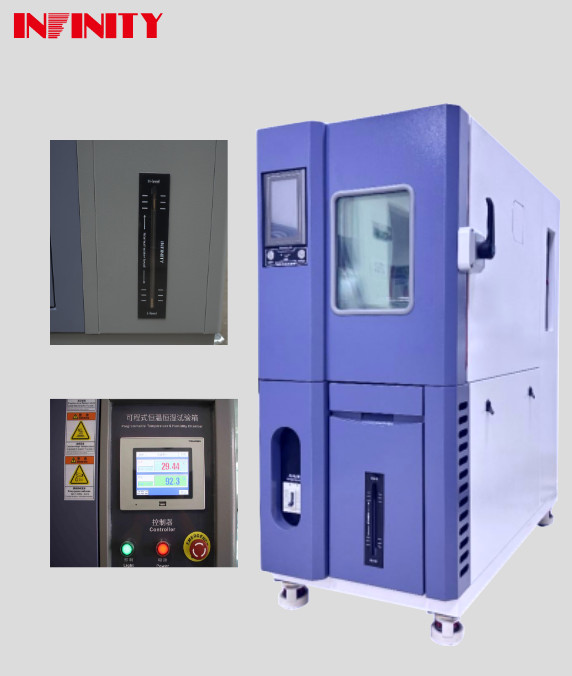

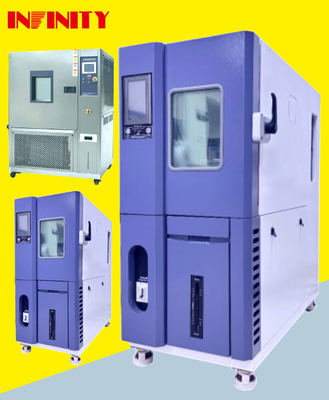

Programmable Constant Temperature Humidity Test Chamber Height Adjustable Sample Holder
The constant temperature and humidity test chamber is a highly reliable and efficient industrial test chamber that provides precise and accurate testing of products, parts, and materials under different temperature and humidity conditions. It is designed to simulate the temperature and humidity change conditions that products may encounter during their usage, storage, and transportation, making it an essential tool for quality and reliability testing.
Model | IE10 150L | IE10 225L | IE10 408L | IE10 800L | IE10 1000L | ||||
Temp. range | -40℃ ~ +150℃ | ||||||||
Temp. fluctuation | ±0.5℃ | ||||||||
Temp. uniformity | ≦2.0℃ | ||||||||
Heating rate | from -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | ||||||||
Temp. decrease rate | from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | ||||||||
Humidity control range | 20%R.H~98%R.H | ||||||||
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
||||||||
Humidity uniformity | ±3.0%RH(no load) | ||||||||
Humidity fluctuation | ±1.0%RH | ||||||||
|
|||||||||
Inside dimensions: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | ||||
Outside box size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | ||||
Warm-keeping box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
||||||||
Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | ||||||||
Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electro thermal coated glass can effectively keep heat and prevent condensation. | ||||||||
Lighting device | 1 LED lighting device, installed on the window. | ||||||||
Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | ||||||||
Refrigeration compressor | France Tecumseh fully closed compressor | ||||||||
Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | ||||||||
Condenser system | air-cooled | ||||||||
Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. | ||||||||
Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW |
The constant temperature and humidity test chamber is widely used in various industries for quality and reliability testing of products, parts, and materials. Some of its common applications include:
To order the constant temperature and humidity test chamber, please provide the following information:
For any further inquiries or assistance, please contact us .
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
The INFINITY IE10 Constant Temperature and Humidity Test Chamber is a reliable and advanced equipment for controlling temperature and humidity. It is highly versatile and can be used in various industrial, laboratory, research, quality control, manufacturing, and production settings.
The IE10 is equipped with a single door design, with a heating wire installed in the door frame to prevent condensation at low temperatures. This design ensures the accuracy and reliability of the test results.
The IE10 uses an air-cooled condenser system, which is efficient and requires minimal maintenance.
The INFINITY IE10 Constant Temperature and Humidity Test Chamber is widely used in various industries and fields, including:
To purchase the INFINITY IE10 Constant Temperature and Humidity Test Chamber, please contact us for a quote. Our prices are negotiable and we offer flexible payment terms. We can also provide customization services to meet your specific needs.
Don't compromise on the quality and reliability of your temperature and humidity testing. Choose the INFINITY IE10 Constant Temperature and Humidity Test Chamber for accurate and efficient results.
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature fluctuation: ±0.5℃
Application: Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
Lighting device: 1 LED Lighting Device, Installed On The Window.
Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Models: IE10 150L, IE10 225L, IE10 408L, IE10 800L, IE10 1000L
Environmental Testing Chambers
Programmable constant temperature and humidity test chamber
Programmable constant temperature and humidity test chamber for customized services
The constant temperature and humidity test chamber is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials used are sturdy and durable, providing adequate protection during transportation.
The chamber is first wrapped in a layer of protective film to prevent any scratches or damage to the surface. It is then placed in a strong wooden crate and secured with straps to prevent any movement during transit.
For international shipments, the chamber is placed in an export-grade wooden crate and packed with foam padding to provide extra protection against any potential damage during long-distance transportation.
Our shipping team carefully inspects each package before it is loaded onto the delivery truck to ensure that it is in perfect condition. We work with trusted and reliable shipping companies to ensure prompt and safe delivery of our products.
For domestic shipments, we offer express delivery options for urgent orders. For international shipments, we provide various shipping options, including air and sea freight, to cater to our customers' needs.
Upon arrival, our customers can expect to receive their constant temperature and humidity test chamber in excellent condition, ready to be put to use for their testing needs.
