Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE10 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electro Thermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Humidity Fluctuation: | ±1.0%RH |
---|---|---|---|
Models: | IE10 150L ,IE10 225L, IE10 408L, IE10 800L ,IE10 1000L | Humidity Uniformity: | ±3.0%RH(no Load) |
Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
Humidity Control Range: | 20%R.H~98%R.H | Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And |

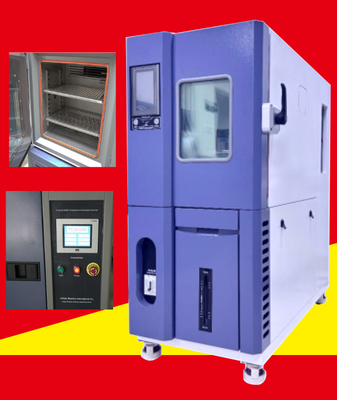

Constant Temperature Humidity Test Chamber -40C ~ 150C Inspection Window W 300×H 400mm
The Programmable Constant Temperature and Humidity Test Chamber is an industrial test chamber designed for high and low temperature and humidity testing. It is suitable for a wide range of products, parts, and materials, and is ideal for simulating temperature and humidity changes for quality and reliability testing.
The chamber is equipped with a W 300×H 400mm observation window on the door. The multi-layer hollow electro thermal coated glass effectively retains heat and prevents condensation, allowing for clear observation of the testing process.
The chamber features a single door with a heating wire installed in the door frame. This prevents condensation from forming in the door frame at low temperatures, ensuring accurate and reliable testing results.
The Programmable Constant Temperature and Humidity Test Chamber is suitable for testing electrical, electronic, and mechanical products, parts, and materials. It can simulate a wide range of temperature and humidity conditions, making it ideal for quality and reliability testing.
The chamber is designed with the following features:
The official name of this product is the Programmable Constant Temperature and Humidity Test Chamber, emphasizing its programmable features and ability to maintain constant temperature and humidity levels.
The INFINITY Programmable Constant Temperature And Humidity Test Chamber is a top-of-the-line product designed for precise and accurate testing of various products in a controlled environment. With its advanced features and high-quality design, this test chamber is widely used in various industries such as electronics, automotive, pharmaceuticals, and more.
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and more
Supply Ability: 200 sets / month
Models: IE10 150L, IE10 225L, IE10 408L, IE10 800L, IE10 1000L
The INFINITY Programmable Constant Temperature And Humidity Test Chamber is available in various models to suit different testing needs. Each model comes with a specific volume and power capacity to cater to different product sizes and testing requirements. The main specifications of these models are as follows:
The test chamber is equipped with a powerful heating and cooling system that ensures quick and accurate temperature control. The humidity control system uses advanced technology to maintain the desired humidity level with minimal fluctuations. The test chamber also comes with a variety of shelves and trays for easy and organized testing of multiple products at once.
The INFINITY Programmable Constant Temperature And Humidity Test Chamber is suitable for a wide range of applications and industries, including:
With its precise and reliable performance, the INFINITY Programmable Constant Temperature And Humidity Test Chamber is an essential tool for any industry that requires testing and quality control of products in a controlled environment.
The INFINITY Programmable Constant Temperature And Humidity Test Chamber is a high-quality and versatile product that offers precise temperature and humidity control for various testing needs. Its advanced features, durable construction, and user-friendly design make it a top choice for industries and businesses that require accurate and reliable testing. Choose INFINITY for your environmental test chamber needs and experience the best in quality and performance.
Model | IE10 150L | IE10 225L | IE10 408L | IE10 800L | IE10 1000L | ||||
Temp. range | -40℃ ~ +150℃ | ||||||||
Temp. fluctuation | ±0.5℃ | ||||||||
Temp. uniformity | ≦2.0℃ | ||||||||
Heating rate | from -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | ||||||||
Temp. decrease rate | from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | ||||||||
Humidity control range | 20%R.H~98%R.H | ||||||||
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
||||||||
Humidity uniformity | ±3.0%RH(no load) | ||||||||
Humidity fluctuation | ±1.0%RH | ||||||||
|
|||||||||
Inside dimensions: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | ||||
Outside box size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | ||||
Warm-keeping box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
||||||||
Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | ||||||||
Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electro thermal coated glass can effectively keep heat and prevent condensation. | ||||||||
Lighting device | 1 LED lighting device, installed on the window. | ||||||||
Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | ||||||||
Refrigeration compressor | France Tecumseh fully closed compressor | ||||||||
Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | ||||||||
Condenser system | air-cooled | ||||||||
Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. | ||||||||
Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW |
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature fluctuation: ±0.5℃
Humidity uniformity: ±3.0%RH(no Load)
Condenser system: Air-cooled
Lighting device: 1 LED Lighting Device, Installed On The Window.
Equipment Overview: This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95 "Low Temperature, High Temperature, Constant Wet Heat, Alternating-wet Heat Test Equipment For Environmental Test Equipment Of Electrical And Electronic Products Basic Parameter Verification Method".
Key Features: Programmable constant temperature and humidity control, Programmable High & Low Temperature humidity testing, Climate testing capabilities.
Our constant temperature and humidity test chambers are carefully packaged to ensure safe delivery to our customers. Each chamber is wrapped in protective materials and placed in a sturdy wooden crate for added protection during transportation.
For international orders, we work closely with our shipping partners to ensure that all necessary documents and customs clearance procedures are completed in a timely manner.
Once your order has been shipped, you will receive a tracking number to monitor the progress of your delivery. We strive to deliver our products to our customers as quickly and efficiently as possible.
