| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
|---|---|---|---|
| Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres |
| Lighting Device: | 1 LED Lighting Device, Installed On The Window. | Product Name: | Programmable Constant Temperature And Humidity Test Chamber |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electro Thermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic |

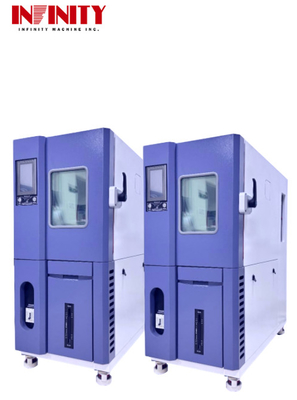

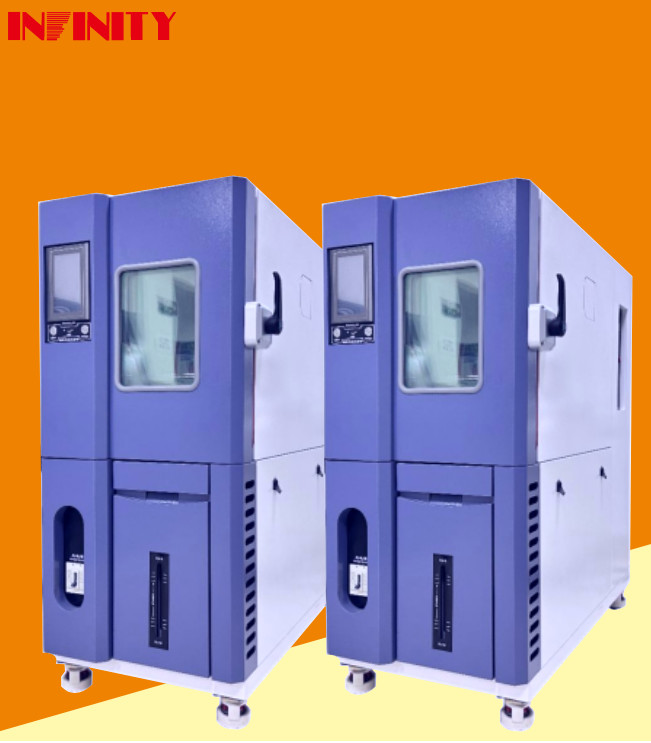

Door Frame Heating Wire Programmable Constant Temperature Humidity Test Chamber
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products. It has the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low Temperature, High Temperature, Constant Wet Heat, Alternating-wet Heat Test Equipment for Environmental Test Equipment of Electrical and Electronic Products Basic Parameter Verification Method". With its high quality and reliable performance, this programmable constant temperature and humidity test chamber is widely used in various industries.
This programmable constant temperature and humidity test chamber is suitable for electrical, electronic, mechanical, and other products, parts, and materials. It can perform high and low temperature, wet and hot tests, and simulate the temperature and humidity change conditions of products, parts, and materials for quality and reliability testing.
In summary, this programmable constant temperature and humidity test chamber is a reliable and high-quality equipment for environmental simulation reliability testing of industrial products. With its precise control and wide range, it can meet the testing requirements of various industries. Choose our constant temperature and humidity test chamber for your product testing needs and ensure the quality and reliability of your products.
The INFINITY IE10 programmable constant temperature and humidity test chamber is a high-quality climatic test chamber designed for environmental simulation reliability testing of industrial products. It is equipped with advanced temperature and humidity control technology, ensuring high accuracy and a wide control range for the testing process. This product meets the requirements of GB5170.2.3.5.6-95, the standard for basic parameter verification of environmental test equipment for electrical and electronic products.
The programmable constant temperature and humidity test chamber is specially designed for the environmental simulation reliability test of industrial products. Its high precision and wide control range make it suitable for various industries, including:
The INFINITY IE10 constant temperature and humidity test chamber is equipped with the latest technology to ensure accurate and reliable testing results. It meets the requirements of GB5170.2.3.5.6-95 and is designed to perform low temperature, high temperature, constant wet heat, and alternating-wet heat tests according to the basic parameter verification method for environmental test equipment of electrical and electronic products. The main features of this equipment include:
| Model | IE10 150L | IE10 225L | IE10 408L | IE10 800L | IE10 1000L | ||||
| Temp. range | -40℃ ～ +150℃ | ||||||||
| Temp. fluctuation | ±0.5℃ | ||||||||
| Temp. uniformity | ≦2.0℃ | ||||||||
| Heating rate | from -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Temp. decrease rate | from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Humidity control range | 20%R.H～98%R.H | ||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
||||||||
| Humidity uniformity | ±3.0％RH(no load) | ||||||||
| Humidity fluctuation | ±1.0％RH | ||||||||
|
|
|||||||||
|
Inside dimensions: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | ||||
|
Outside box size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | ||||
| Warm-keeping box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | ||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electro thermal coated glass can effectively keep heat and prevent condensation. | ||||||||
| Lighting device | 1 LED lighting device, installed on the window. | ||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | ||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | ||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | ||||||||
| Condenser system | air-cooled | ||||||||
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. | ||||||||
| Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | ||||
To place an order for the INFINITY IE10 programmable constant temperature and humidity test chamber, please provide the following information:
We accept TT, PayPal, Moneygram, and other payment methods. The minimum order quantity is 1 set and the delivery time is 20-30 days after order confirmation.
The INFINITY IE10 constant temperature and humidity test chamber is the ideal choice for environmental simulation reliability testing of industrial products. It offers high accuracy and a wide control range, making it suitable for various industries. Its advanced technology and compliance with international standards ensure reliable and accurate testing results. Contact us today to place an order and experience the superior performance of our products.
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Our constant temperature and humidity test chambers are carefully packaged to ensure safe and secure delivery to our customers. Each chamber is packed with protective materials to prevent any damage during shipping.
For international orders, we use strong and durable wooden crates to provide maximum protection during transportation. The chambers are also sealed with moisture-resistant materials to protect them from any external elements that may affect their performance.
Once the chambers are packed and ready for shipping, we work with trusted and reliable shipping companies to ensure timely delivery to our customers. We also offer different shipping options to accommodate our customers' specific needs and requirements.
Our team carefully tracks and monitors each shipment to ensure that it reaches its destination on time and in perfect condition. We also provide all necessary documentation and paperwork for customs clearance, making the shipping process smooth and hassle-free for our customers.
Thank you for choosing our constant temperature and humidity test chambers. We are committed to providing you with high-quality products and excellent service from start to finish.
