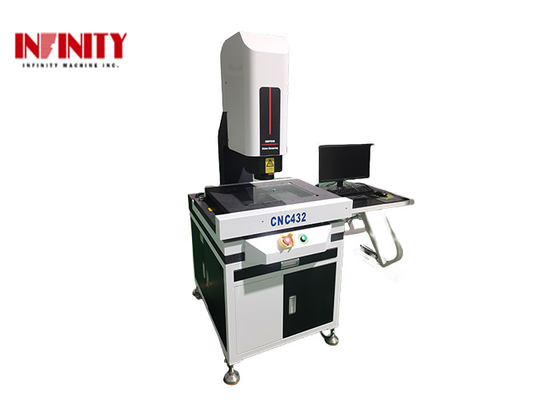

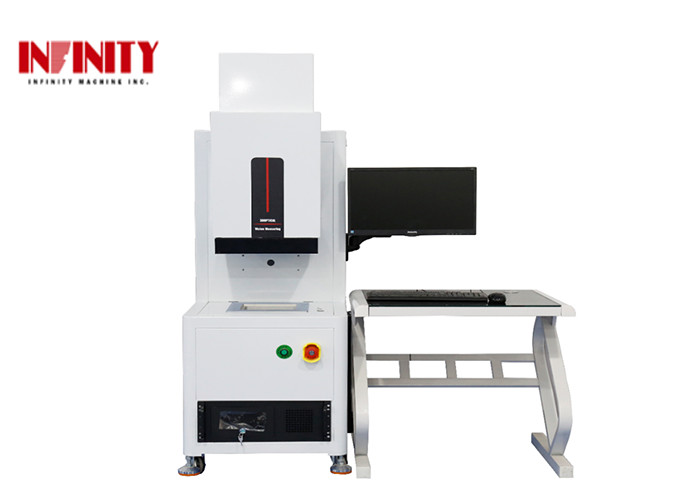

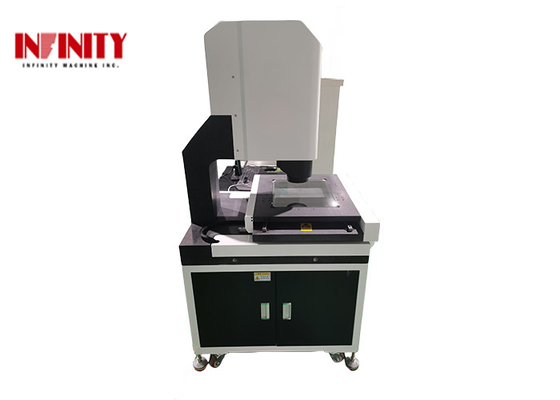

Software Module Movement Control Optical Measuring Instrument 0.0001MM Minimum Display

Optical Measuring Machine Software Module Movement Control Optical Measuring Instrument



                                                       Model Number: IV203

Product Description:

The Optical Measuring Instrument is a high-precision measuring tool designed for accurate and efficient measurement of various objects. It is equipped with independently developed measurement software, making it a reliable and advanced instrument in the field of optical measurement.

The Optical Measuring Instrument is equipped with independently developed measurement software, which has been fine-tuned and tested to ensure accuracy and efficiency. The software allows for easy and intuitive operation, making it suitable for both experienced professionals and beginners.

The Optical Measuring Instrument has a compact and space-saving design with dimensions of 1096x798x1733 mm. This makes it easy to fit into any laboratory or workshop setting without taking up too much space.

The Optical Measuring Instrument offers two options for Z-axis motor control. The first method is through mouse movement control, allowing for precise and smooth movement of the measuring head. The second method is through software module movement control, providing more flexibility and control for specific measurement tasks.

The Optical Measuring Instrument is equipped with a parallel light source, which provides consistent and uniform lighting for accurate measurement results. This surface light feature eliminates any glare or shadows, ensuring clear and precise imaging of the object being measured.

The Optical Measuring Instrument has a sturdy and durable design, with a load-bearing capacity of up to 30kg. This makes it suitable for measuring a wide range of objects, from small and delicate components to larger and heavier parts.

In conclusion, the Optical Measuring Instrument is a top-of-the-line product with advanced features and capabilities. Its independently developed measurement software, compact dimensions, flexible motor control methods, parallel light source, and high load-bearing capacity make it a valuable tool for any measurement needs.



Features:

• Product Name: Optical Measuring Instrument
• Measuring range: 190X135 0mm
• Equipment Type: One-touch Optical Image Measuring Instrument
• CCD image: HD 65MP Color Camera (Haikang)
• XY static accuracy: 3μm
• Power supply: 110V-220V±10% 50/60Hz



Technical Parameters:

Product Name	Optical Measuring Instrument
Z-axis transmission mode	Screw Drive (automatic Program Control)
Dimensions	1096x798x1733 Mm
Lens	Bi-telecentric Lens (Guilin Optical)
Measurement speed	Once Per Second
Base material	High-precision Steel Structure Rack
Measurement software	Independently Developed Measurement Software
Usage environment	Temperature 20±5ºC, Humidity 45-75%. There Is No Vibration That Will Affect The Calibration In The Environment Where The Measuring Machine Room Is Located.
Equipment Type	One-touch Optical Image Measuring Instrument
Power supply	110V-220V±10% 50/60Hz
Minimum display value	0.0001MM



Applications:

The Infinity Machine IV203 Optical Measuring Instrument is a high-precision measuring tool designed for industrial use. It is equipped with advanced technology and a powerful software system, making it an ideal choice for various measurement applications.

• Brand Name: Infinity Machine
• Model Number: IV203
• Place of Origin: Made In China
• CCD Image: HD 65MP Color Camera (Haikang)
• Measurement Speed: Once Per Second
• Computer System: CPU: I7; Memory: 8G; Graphics Card: 2G; Harddisk: 2TB; Monitor: 24-inch; A Set Of Keyboard And Mouse
• Base Material: High-precision Steel Structure Rack
• Measurement Software: Independently Developed Measurement Software

The Optical Measuring Instrument is suitable for a wide range of applications in industries such as aerospace, automotive, electronics, and medical. It can be used for precision measurement of various components, parts, and products, ensuring accuracy and quality control in the manufacturing process.

Here are some specific scenarios where the Infinity Machine IV203 can be used:

• Quality Control: The Optical Measuring Instrument can be used in quality control processes to measure the dimensions, angles, and surface profiles of different parts. It can detect any defects or deviations from the required specifications, ensuring that products meet high-quality standards.
• Production Line: With its fast measurement speed of once per second, the Optical Measuring Instrument is perfect for use on production lines. It can quickly and accurately measure multiple parts, improving efficiency and productivity.
• Reverse Engineering: The high-resolution CCD image and powerful measurement software make the Optical Measuring Instrument ideal for reverse engineering. It can capture precise measurements of existing products, creating a digital model for further analysis and improvements.

• Precision: The Optical Measuring Instrument is designed with a high-precision steel structure rack, ensuring accuracy in measurements up to 0.001mm.
• Efficiency: With its advanced CCD image and measurement software, the instrument can perform measurements quickly, saving time and increasing productivity.
• Easy-to-Use: The Optical Measuring Instrument is user-friendly and comes with a set of keyboard and mouse, making it easy for operators to navigate and control the instrument.
• Reliability: Made with high-quality materials and independently developed software, the Infinity Machine IV203 is a reliable and durable measuring tool.
• Cost-Effective: With its high accuracy, efficiency, and reliability, the Optical Measuring Instrument offers a cost-effective solution for various measurement needs.

Overall, the Infinity Machine IV203 Optical Measuring Instrument is a versatile and reliable tool that can meet the demanding requirements of modern industrial measurement. With its advanced technology and user-friendly features, it is an essential instrument for any manufacturing process.



Customization:

Brand Name: Infinity Machine

Model Number: IV203

Place of Origin: Made In China

Z-axis guide rail: High-precision Linear Slide Rail (Taiwan TBI)

Minimum display value: 0.0001MM

CCD image: HD 65MP Color Camera (Haikang)

Computer system:

• CPU: I7
• Memory: 8G
• Graphics Card: 2G
• Harddisk: 2TB
• Monitor: 24-inch
• A Set Of Keyboard And Mouse

Surface light: Parallel Light Source



Packing and Shipping:

Our Optical Measuring Instrument is carefully packaged to ensure its safe delivery to you. The packaging materials used are of high quality and provide excellent protection against any damage during transit.

• The instrument is first wrapped in multiple layers of bubble wrap to protect it from impact and shock.
• It is then placed in a sturdy cardboard box with foam padding on all sides to provide extra cushioning.
• The box is sealed with high-strength tape to prevent any tampering.
• Finally, the box is labeled with the necessary shipping and handling information.

Once your order is placed, our team will carefully pack and ship your Optical Measuring Instrument to ensure its safe and timely delivery. We offer various shipping options to meet your specific needs.

• For domestic orders, we use reliable and fast ground shipping services.
• For international orders, we offer air or ocean freight shipping options depending on the size and weight of the package.
• All orders are tracked and insured, so you can have peace of mind knowing your package is in good hands.
• We strive to process and ship all orders within 1-2 business days.

At Optical Measuring Instrument, we value the importance of delivering our products in pristine condition. That's why we take great care in packaging and shipping our products to ensure they reach you in perfect condition.



FAQ:

• A: The brand name of this product is Infinity Machine.

Q: What is the model number of this product?

• A: The model number of this product is IV203.

Q: Where is this product made?

• A: This product is made in China.

Q: What type of instrument is Optical Measuring Instrument?

• A: Optical Measuring Instrument is a precision measuring instrument that uses light to measure dimensions and geometric features of objects.

Q: What industries can this product be used in?

• A: This product is commonly used in industries such as manufacturing, automotive, aerospace, and medical.
