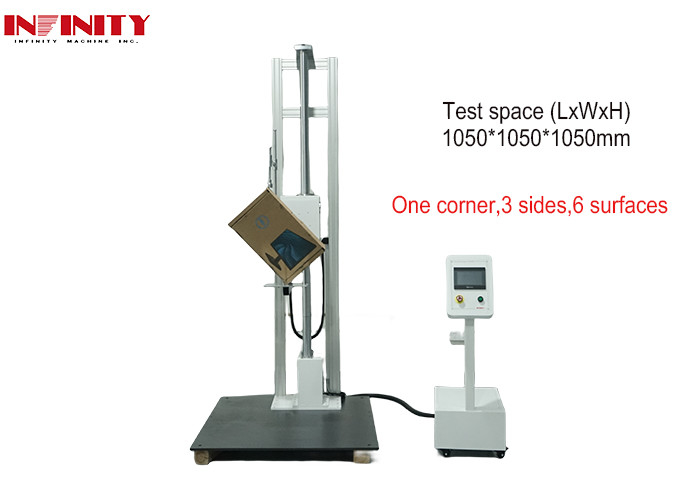

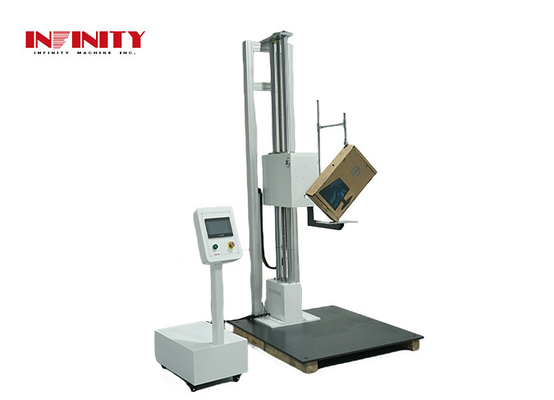

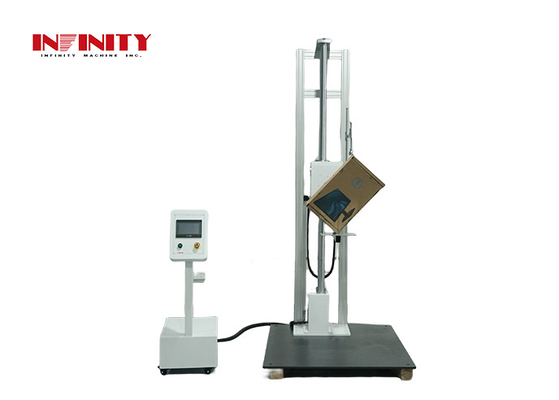

1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester

1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester

1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester
1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester
1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester
Product Details:
Place of Origin: China
Brand Name: Infinity
Certification: CE,ISO
Model Number: ID4150-B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000~100000 PC
Packaging Details: WOOD PACK
Delivery Time: 15-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Dropping Height Range: 300~1500mm Test Space (LxWxH): 1050*1050*1050mm
Power Supply: 220V±10% 50Hz, Single Phase Maximum Load: 50kg
Height Accuracy: ≤2% Of The Setted Value Display: Touch Panel Displayer
High Light:

Touch Screen Carton Drop Testing Equipment

,

Package Carton Drop Testing Equipment

,

50kg Load Package Test Machine

1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester

1050x1050x1050m Touch Screen Control Carton Drop Testing Equipment Package Test Drop Tester 0



What is  one-corner, three-sides and six-surfaces box dropping test ?



1-What is a drop test?



Drop test is a test used to simulate the free drops a product may be subjected to during transportation.

This test is typically used to evaluate a product's ability to withstand accidental impact.

In a drop test, a product is typically placed at a height(usually determined based on the product's weight and likehood of falling)

and then allowed to fall freely.

A drop surface is usually a smooth,hard,rigid surface made of concrete or steel. If there are special requirements,

the type of drop surface can be determined based on product specifications or customer testing specifications.

Through the drop test, you can understand the impact that the product may receive in unexpected situations and evaluate the

toughness and stability of the product structure.

This kind of testing is usually done during the product design stage to ensure that the product can withstand the shocks

and drops it may encounter during transportation,storage and use.



2-What is the purpose of drop test?



The carton drop test is used to simulate factors such as drops that a product may experience during handling,

and to confirm the product's adaptability to resist throwing,presure,and falling during handling,transportation,storage.





3- What is the common standards for drop testing?



During packaging and transportation verification,drop tests appear in any standard.

One-corner,three-sides,six-surfaces are only inlcuded in ISTA1A / ISTA2A, GB/T4857, ASTM D4169.

ISTA Series all have drop tests, for large packags, you must choose the edge test. Different size packing, used different drop testing machine.  When you want to buy a drop machine,please tell us the max size of the packing.





-----------------------------------------------------------------------------------------



Applications:

This Carton Drop Tester is suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.

Features:
  • This tester is with structure design of single arm and double poles: this design can conquer the accident dropping in the Pneumatic design when power is suddenly cut off or the air source is interrupted. It can be up and down stably and no trembling in the process of up and down.
  • Support arm is with electronic control resetting, no need hand resetting, which can avoid the accident by hand resetting operation.
  • Support arm is designed to be Electro withdrawing, and assisted by the pulling spring, which can make sure the testing samples can be free dropping impact by sudden withdrawing of the support arm, the difference between real impact speed and free dropping impact speed is within±1%.
  • Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
  • Impacted base board is steel, and with flat surface.
  •
  • Control box:

1) Touch panel display design: Can display the current height of testing supporter in the process of up and down, the difference between real height and the display is within +/-2%.

2) Height setting control: Micro adjusting control, can rapidly set to the needed testing height.



  • The improved drop tester has lower noise and more convenient to operation.




Specification:

Parameter Value
Dropping height range 300~1500mm
Display Touch panel displayer
Height accuracy ≤2% of the setted value
Maximum load 50kg
Test space (LxWxH) 1050*1050*1050mm
Angle tolerance ≤5°
Motor Panasonic Servo control motor
Dimension (WxDxH) 1400*1500*2250
Weight About 500kg
Power supply 220V±10% 50Hz, Single Phase







Customized Services for Package Test Machine - Infinity ID4150
Brand Name: Infinity
Model Number: ID4150
Place of Origin: China
Certification: CE, ISO
Motor: Panasonic Servo Control Motor
Angle Tolerance: ≤5°
Dropping Height Range: 300~1500mm
Height Accuracy: ≤2% Of The Setted Value
Power Supply: 220V±10% 50Hz, Single Phase
Key Features:
  • Carton Drop Tester
  • Carton Drop Tester
  • Carton Drop Tester



Support and Services:



Package Test Machine Technical Support and Services

Thank you for choosing Package Test Machine for your packaging testing needs. Our team is dedicated to providing you with the best technical support and services to ensure your satisfaction with our product.

Technical Support

Our team of trained technicians is available to assist you with any technical issues or questions you may have about Package Test Machine. You can contact our technical support team via email, phone, or through our online support portal.

We also offer remote technical support, where our technicians can connect to your machine remotely to troubleshoot and resolve any technical issues you may encounter.

On-site Services

In addition to our technical support, we also offer on-site services to assist with installation, training, and maintenance of Package Test Machine. Our experienced technicians will come to your location to ensure proper installation and provide training for your team.

We also offer regular maintenance services to keep your machine running at its best. Our technicians will perform routine maintenance tasks, such as cleaning and calibrating, to ensure optimal performance.

Spare Parts and Warranty

Package Test Machine comes with a one-year warranty, which covers any defects in materials or workmanship. In the unlikely event that you encounter any issues with your machine during the warranty period, our team will provide prompt repairs or replacements.

We also offer a wide range of spare parts for Package Test Machine, ensuring that you have access to high-quality parts whenever you need them.

Training and Resources

At Package Test Machine, we are committed to helping our customers get the most out of our product. We offer comprehensive training programs to ensure that your team is fully equipped to operate and maintain the machine.

In addition, we provide a variety of resources, including user manuals, instructional videos, and FAQs, to assist you in using Package Test Machine effectively.

Thank you again for choosing Package Test Machine. We are dedicated to providing you with the best technical support and services to help you achieve your packaging testing goals.



Packing and Shipping:

.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Infinity.
  • Q: What is the model number of this product?
    A: The model number of this product is ID4150.
  • Q: Where is this product manufactured?
    A: This product is manufactured in China.
  • Q: Does this product have any certifications?
    A: Yes, this product is certified with CE and ISO.
  • Q: What type of package testing can this machine perform?
    A: This machine can perform various types of package testing, including compression, vibration, and impact tests.
