ID1200 Moble Phone Directional Drop Test Equipment For Laptop

ID1200 Moble Phone Directional Drop Test Equipment For Laptop

  • ID1200 Moble Phone Directional Drop Test Equipment For Laptop
  • ID1200 Moble Phone Directional Drop Test Equipment For Laptop
  • ID1200 Moble Phone Directional Drop Test Equipment For Laptop
  • ID1200 Moble Phone Directional Drop Test Equipment For Laptop
ID1200 Moble Phone Directional Drop Test Equipment For Laptop
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE UL
Model Number: ID1200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000~100000 PC
Packaging Details: inner box + master carton, wood pack
Delivery Time: 15-25 working days
Payment Terms: T/T,D/P,L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC PER MONTH
Contact Now
Detailed Product Description
Name: ID1200 Moble Phone Directional Drop Test Equipment For Laptop Implementation Standards:: JIS C 0044 ;IEC 60068-2-32
Maximum Weight Of Specimen Allowed:: 3Kg Maximum Sample Size Allowed:t: (Suitable For 17-inch Notebooks, Maximum Length 40cm)
Drop Medium:: Steel Plate, 19mm Wooden Board, Marble Plate (or Specified) Sample Fixture Method:: Clamping Type
Number Of Falls:: 1~999999 Can Be Set Gas Source:: ≥0.5MPa
High Light:

Moble Phone Directional Drop Test Equipment

,

Drop Test Equipment For Laptop

ID1200 Moble Phone Directional Drop Test Equipment For Laptop

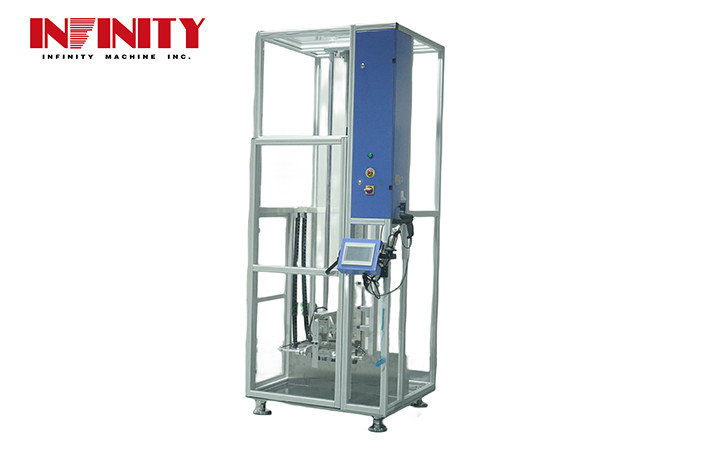

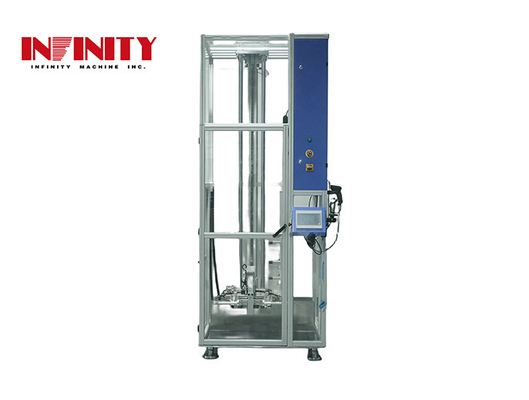

 ID1200 Moble Phone Directional Drop Test Equipment For Laptop 0

Product Description:

Moble Phone Directional Drop Test Equipment is suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products. It can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.


Features:

  • Using AC servo motor + synchronous belt to adjust the drop height, and the height positioning is accurate.
  • It uses a color LCD touch screen + PLC for action control and settings. It can directly set the drop height and automatically stops when it reaches the set height. It can preset the number of drops and has a power-off memory function. All controls are completed on the touch screen: drop and reset. , height setting, times setting, counting, etc.
  • The product is released at a height of 300mm, and the product drop angle is close to the test setting angle.
  • A variety of drop boards are available: steel plates, wooden boards, and marble boards, which are suitable for testing requirements in many countries.
  • Automatic counting (number of falls) function, switchable between maintain fall mode/free fall mode.
  • It is protected by a protective cover all around, and a safety door is used at the entrance to ensure the safety of operators.
  • The software can set and save the compensation height formula, up to 999 groups can be saved. Compensation can be quickly switched when applying different size specimen compensation.

Technical Parameters:

Parameters Value
Implementation standards: JIS C 0044 ;IEC 60068-2-32
Drop height: 300~2000mm(or specified)
Maximum weight of specimen allowed: 3Kg
Maximum sample size allowed: (Suitable for 17-inch notebooks, maximum length 40cm)
Drop medium: Steel plate, 19mm wooden board, marble plate (or specified)
Sample fixture method: clamping type
Number of falls: 1~999999 Can be set
Gas source: ≥0.5MPa
Drop acceleration: -5%(greater than 0.95G)
Machine size (WxDxH): W1200xD1200xH2200mm
Machine weight: About 460Kg
Working power supply: AC220V 5A 50Hz

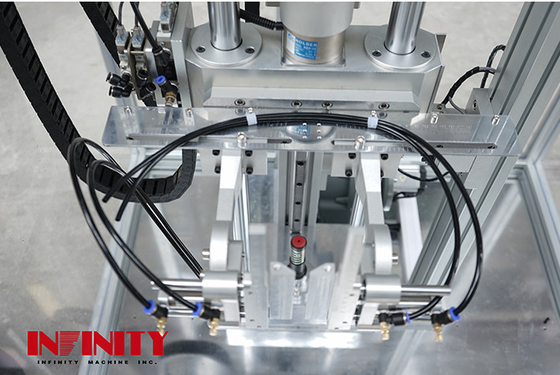

Clamp display:
Clamping method. 0 degree, 45 degree, 90 degree with automatic positioning fixture
ID1200 Moble Phone Directional Drop Test Equipment For Laptop 1
