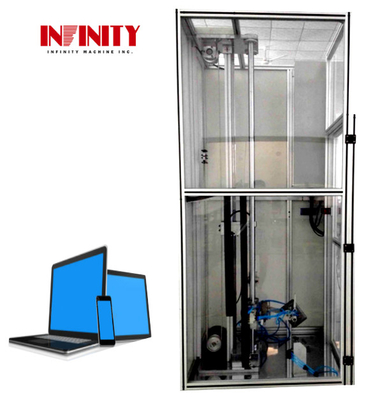

Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm

Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm

  • Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm
Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT3030
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Amount: 2 PCS Test Load: 2Kgf(max)
Drop Height: 0 - 300mm (or Specified) Test Speed: 5 - 25 Cycles/min
Test Cycle: 1~999,999times (cycle) Dimension: W850xH370xD850mm
Weight: About 80kg Power Supply: AC220V 50Hz 3A Or Specified By User
High Light:

Micro Drop Test Machine

,

Repeating Drop Testing Machine

,

300mm Drop Test Machine



Micro Drop Testing Machine for Mobile Phone, Repeating Dropping Test 0 - 300 mm



Model: DT3030



Application:



Apply for micro-drop repeat testing of mobile phone, tablets, electronic dictionary, etc. To check if the products function normal or not after certain cycles tests.

The drop test machine simulates a drop/drop of a carton or finished product, allowing researchers to assess the damage that occurs during any accidental drop. Drop tests can be performed on all angles and sides of the product according to international standards.

Features:



(1) All the testing conditions is inputted by touch panel directly.

(2) Adopt Japan SMC precise pneumatic component, durable using.

(3) Adopt touch panel+PLC as program control.



Specification:



 Model  DT3030
 Test amount  2 PCS
 Test load (max)  2Kgf (max)
 Drop height  0 - 300mm (or specified)
 Test speed  5 - 25 cycles/min
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  850x370x850mm
 Weight  About 80kg
 Air source  ≥0.5MPa
 Power supply  AC220V 50Hz 3A or specified by user



Test Introduction:



1. Faces drop test



Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm 0



2. Sides drop test



Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm 1



3. Corner test



Repeating Micro Drop Testing Machine for Mobile Phone 0-300mm 2
