Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m

Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m

  • Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m
  • Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m
  • Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m
  • Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m
Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Package Carton Drop Impact Tester: Standard export wooden case with operation manual and video inside.
Delivery Time: Package Carton Box Drop Impact Tester: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Package Carton Test Machine Usage: Packaging Testing Machine
Drop Height: 300-2000 Mm Max Size Of Specimen: 800*600*1000mm
Test Load: 100kg Standard: GB4757.5-84, JB/T7407-94, ISO2248-1995
Power: AC380V 50Hz Or Specified By User Warranty: 12 Months
High Light:

Touch Panel Carton Drop Tester

,

Digital Display Carton Drop Tester

,

2m Drop Test Machine

Packaging Carton Drop Tester Touch Panel Control Digital Display Package Box Drop Test Machine 1.5m 2m 3m

Model: DT2200





Purpose:

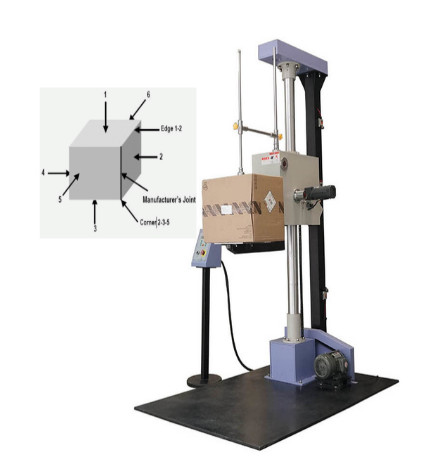

Single Arm Package Carton Drop Tester simulates dropping of the packaged finished products to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely. Packaging carton drop testing machine can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.



Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA

Carton Drop Impact Tester under Vertical Impact for complete and fully loaded package during transport.





Product:

Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m 0





Specification:



Model DT2150 DT2200 DT2300
Dropping height range 300~1500mm 300~2000mm 300~3000mm
Display Digital displayer
Height accuracy ≤2% of the setted value
Maximum load 100kg
Test space (LxWxH) 800x600x1000mm
Angle tolerance ≤5°
Motor 1/2HP
Dimension (WxDxH)mm 1700x1200x2515 1700x1200x2835 1700x1200x3235
Weight About 750kg About 800kg About 900kg
Power supply AC380V 50Hz or specified by user





Application:

Packaging box drop tester is suitable for the drop test of toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components. Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product when it is transported, or the impact strength of the product when it is dropped or the damage when it is dropped.



Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m 1





Package:



Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m 2  Touch Panel Control Digital Display Packaging Carton Drop Tester 1.5m 2m 3m 3
