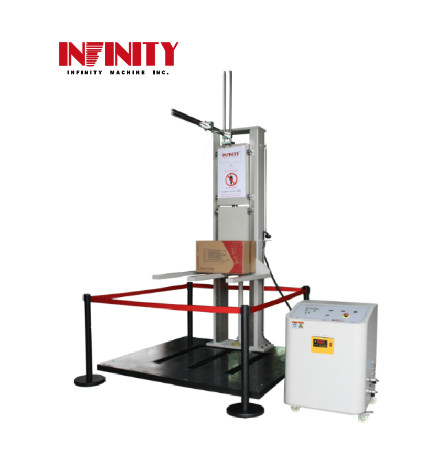

0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television

0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television

0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television
0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television
0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT5100 / DT5120 / DT5150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Samrt TV drop tester: Standard export wooden case with operation manual and video inside.
Delivery Time: Samrt TV drop impact tester: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Dropping Height Range: 300~1500mm/300~2000mm Max Load (kg): 0 ~ 1000 / 1200 / 1500 Mm
Power Consumption (KVA): 2.5 Working Condition: 25°± 3°, 55~85% RH
Product Name: Large Household Appliance Packaging Drop Impact Tester / Zero Height Drop Tester Paper Package Free Fall Drop Tester Application: Package Test
Dropping Height Range (mm): 0~1000/1200/1500mm Testing Way: Edge, Side, Corner
High Light:

Smart Television Package Drop Test Machine


1500mm Package Drop Test Machine


Smart Television Package Drop Tester

Large Package Drop Test Machine for Smart Television I Outdoor Display Screen Package Drop Tester

Large TV Drop Test Machine / TV Drop Tester

Model: DT5100 Series




Large box drop impact test machine is used for drop test of large furniture, office desk and chair, household appliances and packaging etc., including naked drop (without packaging) and packaging drop (with packaging). Large packaging is rather heavy and hard to move up, the top surface and sides are less possible to drop, the drop height for test is low, thus this white household appliances drop tester is required for test drop. This machine is specially used to test damage of packaging products after drop, and mainly used for assessing the drop bearing capacity of packaging product during transportation, loading and unloading, and further improving and perfecting the packaging design.


Structure of machine:


1. Employ clamping roller double guide rails guide structure effectively to avoid derailing during lifting and dropping process with safety performance greatly improved;


2. Employ the hydraulic lifting and descending with electronic control with simple and convenient operation. Just press “lifting” or “descending” on the control console;


3. Employ dedicated trip device (during the course of applying for national patent, the patent pending number is.: 200880796320.1, any imitation shall be punished according to relevant laws) which makes the drop frame be released at one moment, so as to ensure the packaging products can vertically strike the base plate in the form of free-fall motion;


4. Safety protection design: employ the design of double buttons to control drop. The operator is required to use both hands to press the drop buttons to prevent faulty operation;


5. Digital display height: employ precision lever type grating ruler to synchronously collect the height change of hoisting appliance. Current height and set upper limit height can be displayed at real-time. Once reaching the upper or lower limit height, it automatically stops to protect the machine;


6. It applies to drop test for large and heavy packaging products because it is vertically lifted from zero height. Loading and unloading the products are convenient and fast, and drop test of lower height such as edges, surfaces and angles can be realized. The drop height can be started from zero.


7. Employ CKD hydraulic buffer to absorb the impact energy produced by instantaneous drop of drop frame, so as to prevent bad effect on the packaging products of secondary pulse and rigid impact damage on drop frame;




Model DT5100 DT5120 DT5150
Max Load (kg) 200kg 200kg 300kg
Dropping height range (mm) 0~1000mm 0~1200mm 0~1500mm
Max size of testing sample L(mm) 1000 1200 1200
W(mm) 1000 1200 1200
H(mm) 1000 1200 1200
Base size L(mm) 1900 1900 2300
W(mm) 1600 1800 2200
H(mm) 60 60 60
Testing way Edge, side, corner

Size of testing

support table

L(mm) 1900 1900 2300
W(mm) 1800 1800 2200
H(mm) 2800 3100 3400
Machine weight (kg) 2400 2800 3400
Power consumption (KVA) 2.5
Power supply AC 380V 15A or specified by user
Working condition 25°± 3°, 55~85% RH


Product Show:


0 - 1000 / 1200 / 1500mm Package Drop Test Machine For Smart Television 0



1. How to choose the most suitable large package drop testing machine from INFINITY MACHINE INC.?

Our professional team will provide specialized suggestion to you when we received your testing requirements.


2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-25 working days.


3. Do you accept customization service?

Yes, of course, we are not only offer standard machines, but also provide customized service according to your request. If you have any testing requirements, please contact us.


4. Can we visit your factory before order?

Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.


5. Do you have customers in our country?

Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.


6. How about your warranty?

Generally, we will provide 12 months warranty for testing machines.


7. How about the packing for testing machine, are there have safe protected during transportation?

Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.


8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.


9. How to install and use the testing equipments?

We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
