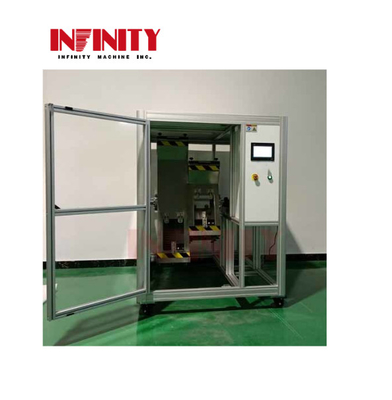

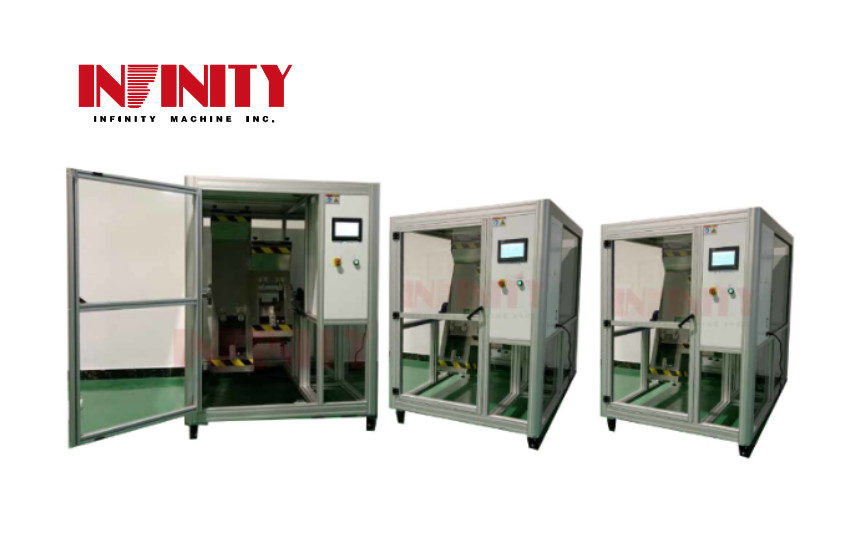

IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone

IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone

IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone
IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone
IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: BD1050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Free Drop Tumble Tester: Standard export wooden case with operation manual and video inside.
Delivery Time: Free Fall Tumble Tester: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Tumble Tester : 50 sets per month
Contact Now
Detailed Product Description
Test Amount: 2 Set, 3 Set, 4 Set Drop Width: 350mm
Drop Height: 500mm Or 1000mm Test Speed: 5~20 Times /min
Test Cycle: 1~999,999times (can Set) Dimension: 1300x1200x1500mm
Weight: 350kg Power Supply: AC220V 50Hz 5A Or Specified By User
High Light:

GB/T2324.8 Free Fall Tumble Tester

,

IEC 60068-2-32 Tumble Tester

,

Free Fall Tumble Drop Testing Machine

IEC 60068-2-32 Basic Environmental Testing Procedures Free Fall Tumble Tester



Model: BD1050





Application:



The rolling drop impact test system is a device designed for small consumer electronics products, which can be used to perform continuous rotary drop tests on mobile phones, cameras, tablets, Bluetooth speakers, chargers, headphones, watches, pads, electronic dictionaries, CDS, MP3, MP4, MP5, remote controls, adapters and other products.



The system offers a variety of test methods, including single drum, double drum, three drum and four drum drop tests, and also supports custom drum drop impact test equipment according to customer requirements. Through these tests, manufacturers can assess the performance of the product in the event of unexpected drops and rollover, including the durability of the housing, the stability of the internal components, and the overall reliability of the product. This helps to improve product quality and reduce damage caused by falls, while also helping to ensure the consumer experience and product safety.



The flexibility and customizability of the rolling drop impact test system makes it an indispensable tool in the design and production of small electronic products.



IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 0 IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 1

IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 2 IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 3





Standards:

Free drop repeated tumble test machine complies with IEC60068-2-32, GB/T2324.8 and other test standards.



Specification:



 Products  Free Fall Tumble Drop Test Machine
 Model  BD1050
 Test amount  2 set, 3 set or 4 set
 Drop width  350mm
 Drop height  500mm or 1000mm
 Test speed  5~20 times /min
 Test cycle  1~999,999times (can set)
 Dimension (WxDxH)  1300x1200x1500mm
 Weight  350kg
 Power Supply  AC220V 50Hz 5A or specified by user



IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 4 IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 5





Operating Interface:



Touch panel control is more easier and more convienient for operating.





Working Video:





IEC 60068-2-32 GB/T2324.8 Free Fall Tumble Tester For Mobile Phone 6






FAQ:



1. How to choose the most suitable repeated free fall tumble tester from INFINITY MACHINE INC.?

Our professional team will provide specialized suggestion to you when we received your testing requirements.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-20 working.



3. Do you accept customization service?

Yes, of course, we are not only offer standard machines, but also provide customized service according to your

request. If you have any testing requirements, please contact us.



4. Can we visit your factory before order?

Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.



5. Do you have customers in our country?

Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.



6. How about your warranty?

Generally, we will provide 12 months warranty for testing machines.



7. How about the packing for testing machine, are there have safe protected during transportation?

Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.



8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging

- balance payment - packing - delivery - customer receiving - after service.



9. How to install and use the testing equipments?

We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
