|Place of Origin:||Made in China|
|Brand Name:||Infinity Machine|
|Minimum Order Quantity:||1|
|Packaging Details:||Batteries Free Fall Testing Machine: Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Battery Free Drop Testing Equipment: Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|Products:||Mobile Phone Contolled Drop Testing Machines||Model:||DT2000|
|Usage:||Lab Drop Testing, Falling Down Testing||Product Name:||Speaker Drop Test Machine|
|Application:||Drop Test Battery, Handset, Smartphone, Camera, Battery, Power Bank Ect.||Drop Height:||400~2000 Mm|
|Power Supply:||220V 50Hz||Warranty:||12 Months|

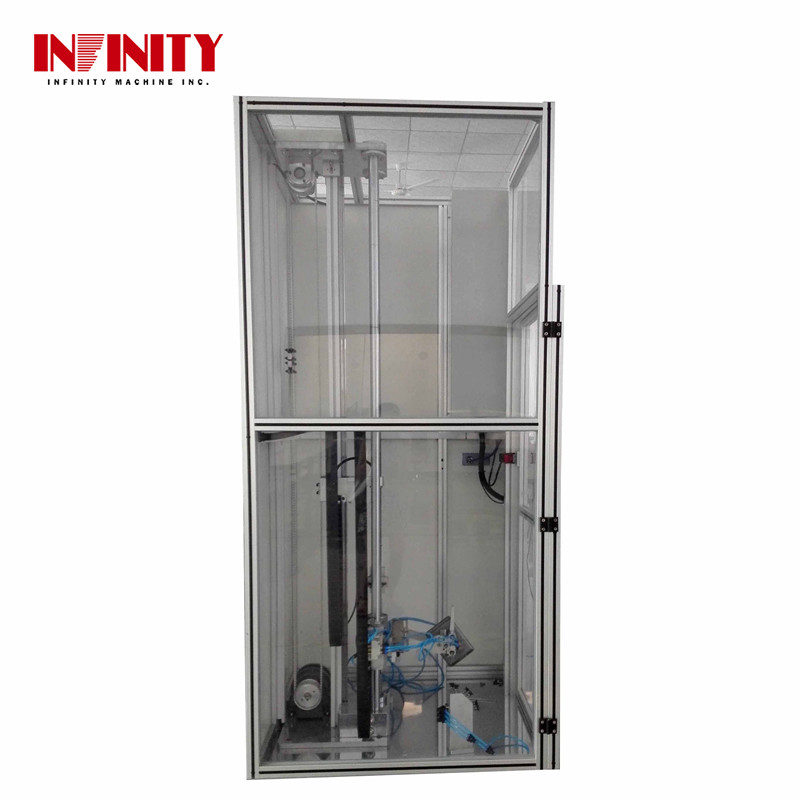

2000mm Free Fall Drop Tester,
IEC 60068-2-32 Free Fall Drop Tester,
IEC Free Fall Drop Test Machine
Standard: IEC 60068-2-32
|Max sample weight||2kg|
|Drop height setting||Touch panel setting and display|
|Min release height||300mm|
|Power supply||AC220V 50Hz 3A or 110V 60Hz 6A|
|Drop bases||Steel, Wood, Granite|
|Sample fixing||Sucker or Clamper|
Handset Battery Free Fall Test Device is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control etc..
Mobile Phone Free Drop Test Machine is the wide-ranging using in the manufacturers for speaker, earphone, mobile phones, tablets, remote concrol.
a. High Precision Smartphone Battery Free Drop Tester adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.
b. Music Speaker Box Battery Free Drop Test Equipment adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.
c. Notebook Battery Free Fall Test Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.
d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.
e. Communication Device Battery Controlled Free Drop Test Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, the tester can be triggered when it locks, that can guarantee the security.
f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.
g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.
h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.
i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.
j. Battery Controlled Drop Tester Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.
Sucker sucking angle: 0°,45°, 90°:
To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.
To use color LCD touchpanel controller.
With acceleration testing device( First design in China): Chinese and English Interface, easy operation, strong performance.
After testing, auto display the drop speed.
Three vacuum suckers freely switchable.
After drop, Auto return to sample loading position.
Drop height, Sample loading height can be set, drop times display/Reset
Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.
