Min 300mm Lab Bluetooth Speaker Controlled Drop Testing Machine

Reliability Quality Test Bluetooth Speaker Controlled Drop Testing Machine, Speaker Controlled Drop Test Device for Lab

Model: DT2000

Standard: IEC 60068-2-32

Specification:

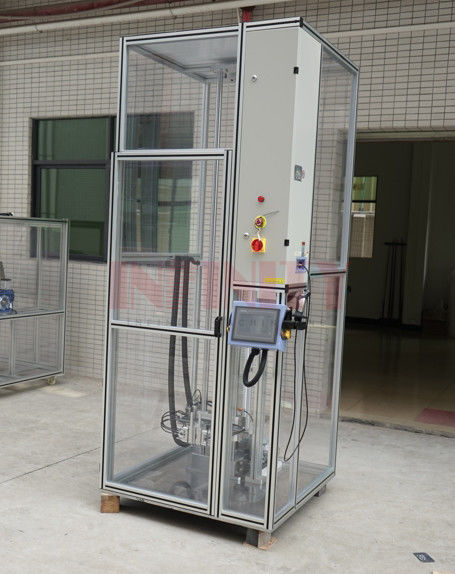

Machine Structure:

a. High Precision Controlled Fall Drop Tester adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.

b. Music Speaker Box Drop Test Equipment adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.

c. Sound Device Drop Tester Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.

d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.

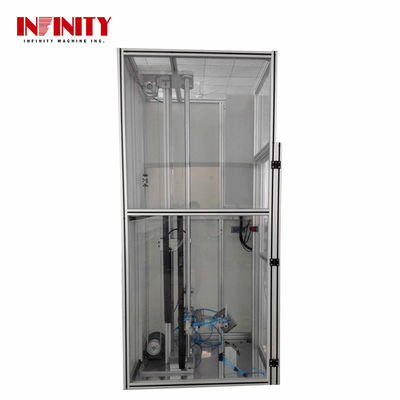

e. Portable Loudspeaker Drop Testing Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, , the tester can be triggered when it locks, that can guarantee the security.

f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.

g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.

h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.

i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.

j. Mini Loudspeaker Drop Tester Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.

Sucker sucking angle: 0°,45°, 90°:

To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.

To use color LCD touchpanel controller.

With acceleration testing device( First design in China):Chinese and English Interface, easy operation, strong performance.

Software Specialties:

After testing, auto display the drop speed.

Three vacuum suckers freely switchable.

After drop, Auto return to sample loading position.

Drop height, Sample loading height can be set, drop times display/Reset

Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.

Application:

Speaker Controlled Drop Test Device is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control etc..

Mini Loudspeaker Controlled Drop Impact Test Machine is the wide-ranging using in the manufacturers for speaker, earphone, mobile phones, tablets, remote concrol.
