Place of Origin: | Made in China |
Brand Name: | Infinity Machine |
Certification: | CE, ISO |
Model Number: | DT2200 series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Bottle Drop Impact Resistance Testing Equipments: Standard export wooden case with operation manual and video inside. |
Delivery Time: | Bottle Drop Impact Resistance Test Equipments: Shipped in 15 days after payment |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | Bottle Drop Impact Resistance Test Equipment | Usage: | Drop Testing, Drop Impact Resistance Of Blow-molded Thermoplastic Containers |
---|---|---|---|
Drop Height: | 300-2000 Mm | Max Size Of Specimen: | 800*600*1000mm |
Test Load: | 100kg | Standard: | GB4757.5-84, JB/T7407-94, ISO2248-1995 |
Material: | Good Quality Steel | Power: | AC380V 50Hz Or Specified By User |
Warranty: | 12 Months | Manual: | Paper Manual Or Video Manual |
Color: | OEM Or As Picture's Colors | ||
Highlight: | ASTM D2463 Drop Impact Test Equipment,100kg Load Drop Impact Test Equipment,ASTM D2463 Drop Impact Tester |

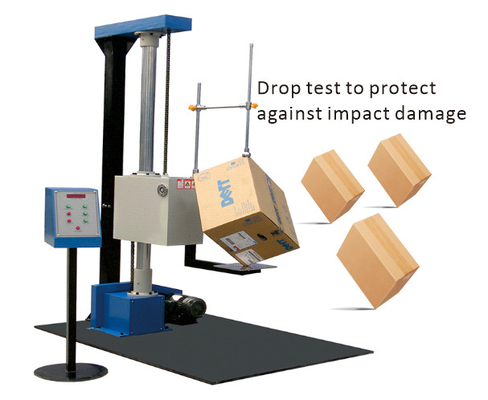

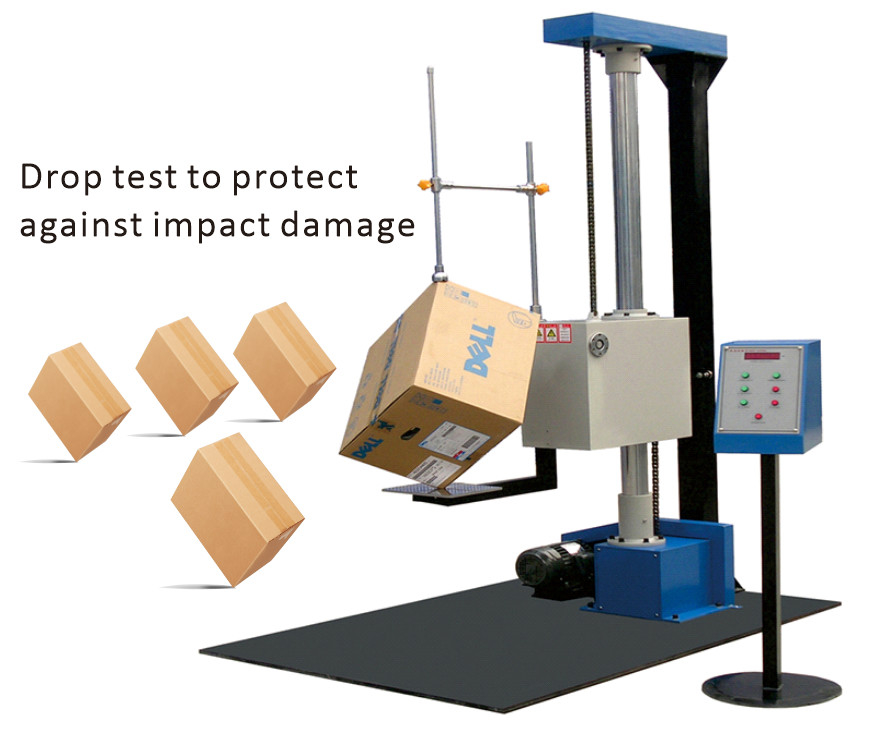

Model: DT2200
Purpose:
Toys packages Drop Impact Resistance Testing Equipments simulates dropping of the packaged finished products (toys) to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation.
During dropping, the carrier will rotate to allow the packed products to fall freely. Products drop testing machine can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.
Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA
Plastic Bottle Drop Testing Machine is under vertical impact for complete and fully loaded package during transport.
Application:
Drop impact testing equipment is suitable for the drop impact resistance of blow-molded thermoplastic containers, toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components.
Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product(toys) when it is transported, or the impact strength of the product(toys) good or damage when it is dropped.
Specification:
Model | DT2150 | DT2200 | DT2300 |
Dropping height range | 300~1500mm | 300~2000mm | 300~3000mm |
Display | Digital displayer | ||
Height accuracy | ≤2% of the setted value | ||
Maximum load | 100kg | ||
Test space (LxWxH) | 800x600x1000mm | ||
Angle tolerance | ≤5° | ||
Motor | 1/2HP | ||
Dimension (WxDxH)mm | 1700x1200x2515 | 1700x1200x2835 | 1700x1200x3235 |
Weight | About 750kg | About 800kg | About 900kg |
Power supply | AC380V 50Hz or specified by user |
Package:
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
