ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84 JB/T7407-94

ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84 JB/T7407-94

ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94
ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94
ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Cosmetics Carton Drop Testing Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Cosmetics Parcel Drop Impact Test Machine: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Cosmetics Box Drop Impact Testing Machine Usage: Packaging Testing Machine
Drop Height: 300-2000 Mm Max Size Of Specimen: 800*600*1000mm
Test Load: 100kg Standard: GB4757.5-84, JB/T7407-94, ISO2248-1995
Power: AC380V 50Hz Or Specified By User Warranty: 12 Months
Highlight:

Cosmetics Package Carton Drop Impact Tester

,

ASTM D4169 Carton Drop Impact Tester

,

ASTM D4169 Drop Impact Testing Machine

Cosmetics Package Free Drop Impact Testing Equipment, ASTM D4169 Cosmetics Box Free Drop Test Machine

Model: DT2200





Purpose:



ISTA Cosmetics Package Drop Impact Testing Machine simulates dropping of the packaged finished products to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely. Packaging carton drop testing machine can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.



Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA

Cosmetics Carton Box Drop Impact Test Equipment under Vertical Impact for complete and fully loaded package during transport.

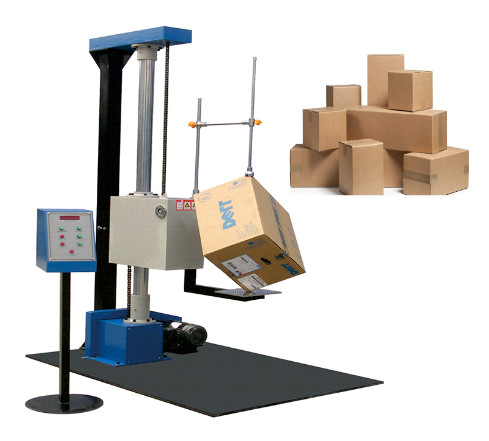

Product:

ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 0

Specification:



Model DT2150 DT2200 DT2300
Dropping height range 300~1500mm 300~2000mm 300~3000mm
Display Digital displayer
Height accuracy ≤2% of the setted value
Maximum load 100kg
Test space (LxWxH) 800x600x1000mm
Angle tolerance ≤5°
Motor 1/2HP
Dimension (WxDxH)mm 1700x1200x2515 1700x1200x2835 1700x1200x3235
Weight About 750kg About 800kg About 900kg
Power supply AC380V 50Hz or specified by user





Application:

Packaging Container Free Drop Impact Test Equipment are suitable for the drop test of toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components. Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product when it is transported, or the impact strength of the product good or damage when it is dropped.



ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 1   ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 2





Package:



ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 3  ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 4

Our workshop:

ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 5



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 6

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 7

ASTM D4169 Cosmetics Package Carton Drop Impact Tester GB4757.5-84  JB/T7407-94 8



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
