| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | DT2200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Drop Testing Machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Carton Drop Testing Machines: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Package Drop Testing Machines | Usage: | Packaging Testing Machine |
|---|---|---|---|
| Drop Height: | 300-2000 Mm | Max Size Of Specimen: | 800*600*1000mm |
| Test Load: | 100kg | Standard: | GB4757.5-84, JB/T7407-94, ISO2248-1995 |
| Power: | AC380V 50Hz Or Specified By User | Warranty: | 12 Months |
| High Light: | ASTM D4169 Carton Drop Tester,ISTA Amazon Carton Drop Tester,Digital Display Package Drop Tester |
||

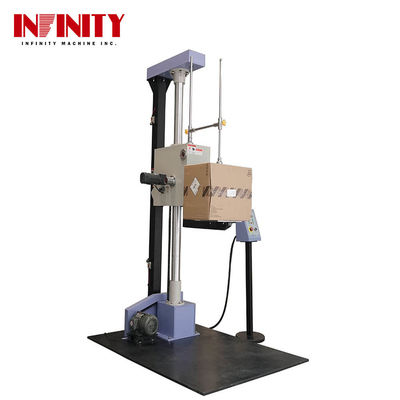

Model: DT2200
Purpose:
ISTA Package Carton Drop Testing Machines simulates dropping of the packaged finished products to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely. Packaging carton drop testing machine can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.
Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA
Carton Drop Test Machines under Vertical Impact for complete and fully loaded package during transport.
Product:
Specification:
| Model | DT2150 | DT2200 | DT2300 |
| Dropping height range | 300~1500mm | 300~2000mm | 300~3000mm |
| Display | Digital displayer | ||
| Height accuracy | ≤2% of the setted value | ||
| Maximum load | 100kg | ||
| Test space (LxWxH) | 800x600x1000mm | ||
| Angle tolerance | ≤5° | ||
| Motor | 1/2HP | ||
| Dimension (WxDxH)mm | 1700x1200x2515 | 1700x1200x2835 | 1700x1200x3235 |
| Weight | About 750kg | About 800kg | About 900kg |
| Power supply | AC380V 50Hz or specified by user | ||
Application:
Packaging Container Drop Testing Machines is suitable for the drop test of toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components. Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product when it is transported, or the impact strength of the product good or damage when it is dropped.
Package:
Please Send Inquiry to Us.
