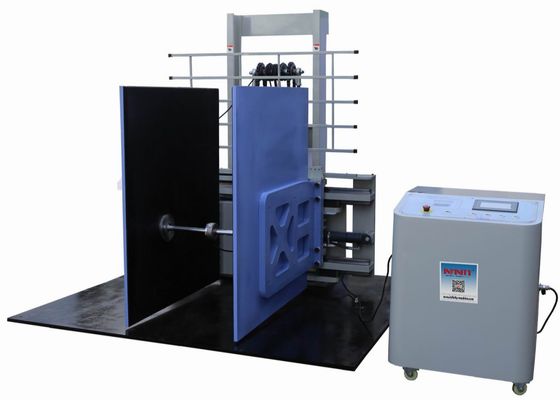

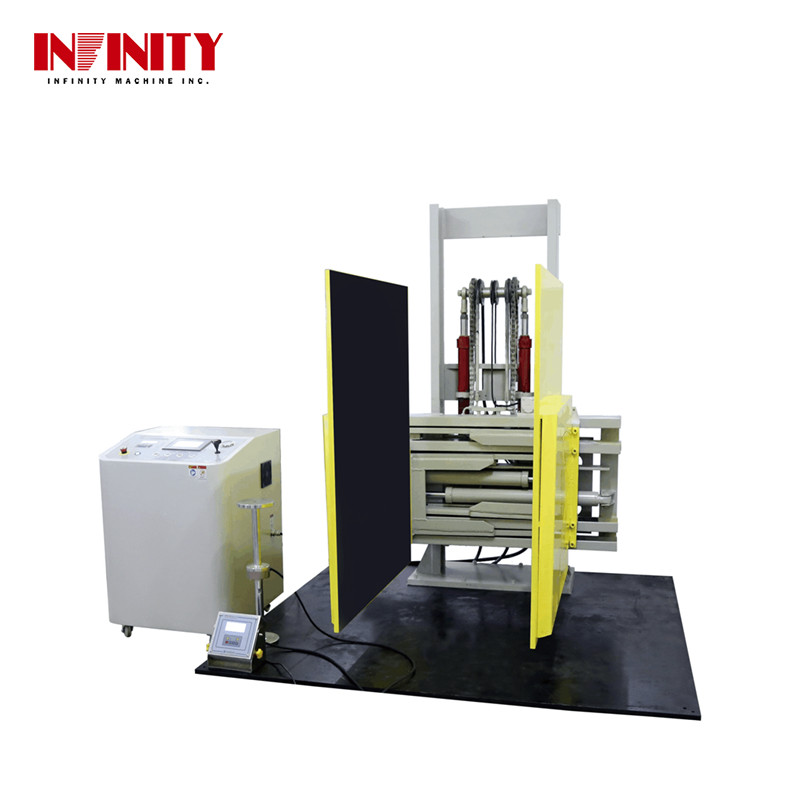

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm
ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm
ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: S6440
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Simulated Forklift Clamping Test Machine: Standard export wooden case.
Delivery Time: Simulated Forklift Clamping Test Machine: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Simulated Forklift Clamping Test Machine: 20 sets per month
Contact Now
Detailed Product Description
Test Standards: ASTM D6055-96 METHOD, ISTA ,LTP-2001,GB/T 4857.4-2008 Warranty: 1 Year
Maximum Clamping Space: W2000 * D1200 * H1200mm Minimum Clamping Space: W630 * D1200 * H1200mm
Baseboard Width: No Slower Than 1800 * 1800mm Clamping Speed: 10~300mm/min, Adjustable
Lifting Space: 0~1000mm, Adjustable Colour: White
High Light:

Simulated Forklift Clamp Force Testing Machine

,

ISTA Clamp Force Testing Machine

,

ASTM Clamp Force Tester

ASTM ISTA Package Carton Simulated Forklift Clamping Test Machine  Model:S6440

Applications:



Packing Carton Simulated Forklift Clamping Test Machine is designed to measure the deflections of product packages and protective capacity of packages for product when suffering level pressure in the process of transportation and storage to improve the quality of product package.





Test standards:



Meet the requirements of ASTM D6055-96 METHOD, ISTA Packaging Test EHP Cold, LTP-2001 Clamping test,

GB/T 4857.4-2008 Basic Experiment of Packaging and Transporting Packages,

ISTA (International Safety Transit Association) 1A Packaging Performance of Independent Packaging Products That is No Heavier Than 1501b (68kg),

ASTM Standard D 4169 Standard Operating Specification for Shipping Containers and System Protection Performance test,

ASTM Standard D 6055 Standard Test Method for Compositional Load and Mechanized Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 6179 Standard Test Method for Compositional Load and Rash Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 999, Standard Test Method for Shock Test of Shipping Containers,

ASTM Standard D 5445 Geographical Symbols for Standard Operational Actions in Cargo Transport.





ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 0

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 1



ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 2



Weight of maximum test piece 500Kg (can be discussed)
Clamping pressure 400-3000 pounds(adjustable)
Force calibrator Force sensor and digital display calibrating the clamping force
Unit(switchable) Between Kg, kn and Lb
Force value accuracy National standard class 1.6
Clamping panel dimension 1200*1500mm, thickness of no less than 25mm
Clamp plate requirements Deformation under the maximum pressure working state ,the two plates are parallel, while each plate and the floor are vertical to each other.
Clamping space(W*D*H) 600~2100*1200*1400mm(can be discussed)
Baseboard dimension W2200*D2000*H20mm
Clamping speed 10~300nn/min(adjustable)
Lifting space 0~1000mm(adjustable)
Safety device Overload protection, overvoltage protection. limit protection and sudden power-off protection
Control Human-computer interface with touch screen is used or the controller that controlled by PLC program with convenient operation and stable performance
Drive mode Hydraulic drive
Power AC380V 50Hz 3KW or specified bu user
Dimension W2200*D2000*H2050mm
Control box dimension W750*D800*H1000mm
Weight About 3200kg





Package:

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 3ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 4

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 5



Our workshop:

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 6



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 7

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 8

ASTM ISTA Simulated Forklift Clamp Force Testing Machine 300mm/min 1000mm 9



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
