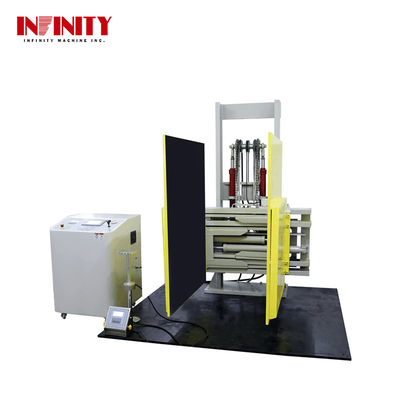

ISTA Hydraulic Drive Package Carton Box Clamping Force Tester

ISTA Hydraulic Drive Package Carton Box Clamping Force Tester

  • ISTA Hydraulic Drive Package Carton Box Clamping Force Tester
  • ISTA Hydraulic Drive Package Carton Box Clamping Force Tester
ISTA Hydraulic Drive Package Carton Box Clamping Force Tester
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: S6440
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Box Clamp Test Machine: Standard export wooden case.
Delivery Time: Box Clamp Handling Tester: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Box Clamp Handling Test Machine: 20 sets per month
Contact Now
Detailed Product Description
Test Standards: ASTM D6055-96 METHOD, ISTA ,LTP-2001,GB/T 4857.4-2008 Warranty: 1 Year
Maximum Clamping Space: W2000 * D1200 * H1200mm Minimum Clamping Space: W630 * D1200 * H1200mm
Baseboard Width: No Slower Than 1800 * 1800mm Clamping Speed: 10~300mm/min, Adjustable
Lifting Space: 0~1000mm, Adjustable Colour: White
High Light:

Package Carton Box Clamping Force Tester

,

ISTA Clamping Force Tester

,

Hydraulic Drive Clamp Force Tester

ASTM ISTA Carton Box Clamp Handling Tester, Package Carton Box Clamp Handling Test Machine



Model:S6440



Applications:



Packaging Carton Clamp Testing Equipment is designed to measure the deflections of product packages and protective capacity of packages for product when suffering level pressure in the process of transportation and storage to improve the quality of product package.





Test standards:



Meet the requirements of ASTM D6055-96 METHOD, ISTA Packaging Test EHP Cold, LTP-2001 Clamping test,

GB/T 4857.4-2008 Basic Experiment of Packaging and Transporting Packages,

ISTA (International Safety Transit Association) 1A Packaging Performance of Independent Packaging Products That is No Heavier Than 1501b (68kg),

ASTM Standard D 4169 Standard Operating Specification for Shipping Containers and System Protection Performance test,

ASTM Standard D 6055 Standard Test Method for Compositional Load and Mechanized Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 6179 Standard Test Method for Compositional Load and Rash Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 999, Standard Test Method for Shock Test of Shipping Containers,

ASTM Standard D 5445 Geographical Symbols for Standard Operational Actions in Cargo Transport.





ISTA Hydraulic Drive Package Carton Box Clamping Force Tester 0

ISTA Hydraulic Drive Package Carton Box Clamping Force Tester 1



ISTA Hydraulic Drive Package Carton Box Clamping Force Tester 2



Weight of maximum test piece 500Kg (can be discussed)
Clamping pressure 400-3000 pounds(adjustable)
Force calibrator Force sensor and digital display calibrating the clamping force
Unit(switchable) Between Kg, kn and Lb
Force value accuracy National standard class 1.6
Clamping panel dimension 1200*1500mm, thickness of no less than 25mm
Clamp plate requirements Deformation under the maximum pressure working state ,the two plates are parallel, while each plate and the floor are vertical to each other.
Clamping space(W*D*H) 600~2100*1200*1400mm(can be discussed)
Baseboard dimension W2200*D2000*H20mm
Clamping speed 10~300nn/min(adjustable)
Lifting space 0~1000mm(adjustable)
Safety device Overload protection, overvoltage protection. limit protection and sudden power-off protection
Control Human-computer interface with touch screen is used or the controller that controlled by PLC program with convenient operation and stable performance
Drive mode Hydraulic drive
Power AC380V 50Hz 3KW or specified bu user
Dimension W2200*D2000*H2050mm
Control box dimension W750*D800*H1000mm
Weight About 3200kg
