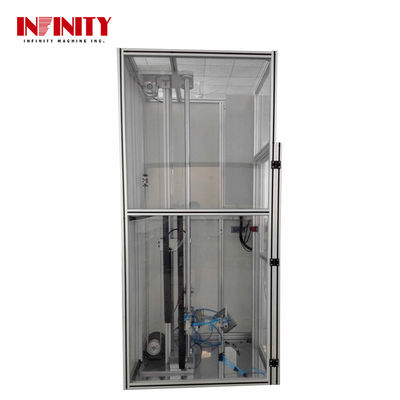

High Precision Lab Mobile Phone Drop Tester Servo Control

High Precision Lab Mobile Phone Drop Tester Servo Control

  • High Precision Lab Mobile Phone Drop Tester Servo Control
High Precision Lab Mobile Phone Drop Tester Servo Control
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Cellphone Drop Tester Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Telephone Drop Tester Machine: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Smartphone Drop Tester Machine: 200 sets per month
Contact Now
Detailed Product Description
Products Name: Mobile Phone Drop Tester Machine Model: DT2000
Drop Height: 400~2000mm Max Sample Weight: 2kg
Drop Height Setting: Touch Panel Setting And Display Min Release Height: 300mm
Counter: 0~999,999 (settable) Weight: About 420kg
Dimension: W1000xD1180xH2415mm Power Supply: AC220V 30A Or Specified By User
High Light:

Servo Control Phone Drop Tester

,

Smartphone Drop Tester

,

High Precision Mobile Phone Drop Tester

Servo Control Phone Drop Tester, Smartphone Drop Teser, Mobile Phone Drop Tester, Lab Drop Tester



Model: DT2000





Machine Structure:



a. High Precision Cell Phone Drop Tester Machine adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.



b. Hanset Drop Tester Machine adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.



c. Mobile Device Drop Tester Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.



d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.



e. Automatic Telephone Drop Tester Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, , the tester can be triggered when it locks, that can guarantee the security.



f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.



g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.



h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.



i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.



j. Telefono Auto Drop Tester Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.



High Precision Lab Mobile Phone Drop Tester Servo Control 0





Standard: IEC 60068-2-32





Specification:



Products  Directional Mobile Phone Drop Tester Machine
 Model  DT2000
 Drop height  300~2000mm
 Max sample weight  2kg
 Drop height setting  Touch panel setting and display
 Min release height  300mm
 Counter  0~999,999 (settable)
 Air source  ≥0.5MPa
 Tester size  W1000xD1180xH2415mm
 Weight  About 420kg
 Power supply  AC220V 50Hz 3A or 110V 60Hz 6A
 Drop bases  Steel, Wood, Granite
 Sample fixing  Sucker or Clamper





Application:



Directed Cellphone Drop Tester Machine is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control ETC.

Servo Control Mobile Phone Drop Testing Machine is the wide-ranging using in the manufacturers for mobile phones and tablets, such as ZTE, Foxconn, Liteon, Compal, Quanta, Salcomp, AAC, Gree, BYD Holitech,Ofilm, Foxlink ETC.









Sucker sucking angle: 0°,45°, 90°:



High Precision Lab Mobile Phone Drop Tester Servo Control 1

To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.





High Precision Lab Mobile Phone Drop Tester Servo Control 2



To use color LCD touchpanel controller.



With acceleration testing device( First design in China):Chinese and English Interface, easy operation, strong performance.



 High Precision Lab Mobile Phone Drop Tester Servo Control 3



Software Specialties:



After testing, auto display the drop speed.

Three vacuum suckers freely switchable.

After drop, Auto return to sample loading position.

Drop height, Sample loading height can be set, drop times display/Reset





Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.



High Precision Lab Mobile Phone Drop Tester Servo Control 4
