Automatic Servo Control Phone Drop Testing Machine 400~2000mm Height

Servo Control Phone Drop Testing Machine, Automatic Smartphone Drop Testing Machine, Mobile Phone Drop Testing Machine

Model: DT2000

Standard: IEC 60068-2-32

Specification:

Application:

Directed Cellphone Drop Testing Machine is to evaluate the product performance after unintentional drop, it is suitable to do test for all kinds of consuming electronic products, such as the mobile phone, tablet, e-reader, telephone, e-dictionary , remote control ETC.

Servo Control Mobile Phone Drop Testing Machine is the wide-ranging using in the manufacturers for mobile phones and tablets, such as ZTE, Foxconn, Liteon, Compal, Quanta, Salcomp, AAC, Gree, BYD Holitech,Ofilm, Foxlink ETC.

Machine Structure:

a. High Precision Cell Phone Drop Testing Machine adopts AC servo motor and synchronous pulley for the drop height adjusting, can guarantee the height precision, and long durability.

b. Hanset Drop Testing Machine adopts the color touchpanel+ PLC to control and set the motion, can set the drop height directly, it will auto stop when it reaches the set height, it can preset the drop times and has power-off memory function, all the controls can be done in the touch panel: drop, reset, height setting, drop times, and counting.

c. Mobile Device Drop Testing Machine is to use the SMC vacuum sucker for the samples sucking, the edges, corner can faces impact can be done.

d. Tested sample will be released at the height of 300mm, the tested sample drop gesture is close to the original set gesture.

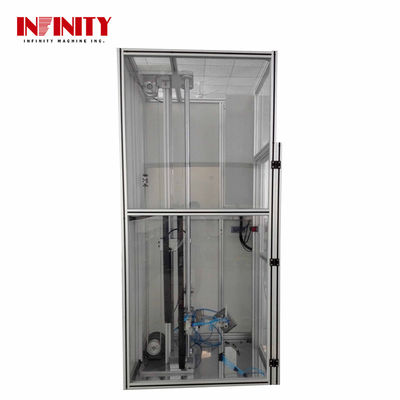

e. Automatic Telephone Drop Testing Machine is used aluminum alloy frame and transparent PMMC as the whole sealing enclosure , it is installed with the Omron safety lock, , the tester can be triggered when it locks, that can guarantee the security.

f. All the pneumatic parts are from SMC, can make sure the high performance and long durability.

g. Various drop bases are available: steel base, wood base, granite base, that is to meet the various impact medium requirements.

h. Auto count(Drop cycles) function function, Auto drop mode and the manual drop mode are switchable.

i. The drop friction can be lowest because it uses the Japan THK high precision low friction sliding rail.

j. Telefono Auto Drop Testing Machine has special handle controller, it is convenient to control the Start, Stop, and Reset during the testing.

Sucker sucking angle: 0°,45°, 90°:

To use PMMA to make the fence to prevent the tested Sample from bounding out of the drop base area.

To use color LCD touchpanel controller.

With acceleration testing device( First design in China):Chinese and English Interface, easy operation, strong performance.

Software Specialties:

After testing, auto display the drop speed.

Three vacuum suckers freely switchable.

After drop, Auto return to sample loading position.

Drop height, Sample loading height can be set, drop times display/Reset

Several customers adopted high speed camera, laser distance meter to verify the accuracy of drop speed and acceleration.
