Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: DT3030
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Micro Drop Tester Apparatus Standard export wooden case with operation manual and video inside.
Delivery Time: Phone Light Drop Test Apparatus: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Products: Mobile Phone Drop Test Apparatus Test Load: 1Kgf, 2Kgf(max)
Drop Height: 0 - 300mm (or Specified) Test Speed: 5 - 25 Cycles/min
Test Cycle: 1~999,999times (cycle) Dimension: W850xH370xD850mm
Weight: About 80kg Power Supply: AC220V 50Hz 3A Or Specified By User
Test Amount: 2pcs Application: Fall Drop Testing, Light Drop Testing, Micro Drop Testing
High Light:

Communication Devices Micro Drop Test Machine

,

Free Fall Light Drop Test Machine

,

Lab Phone Micro Drop Test Machine

Servo Control Micro Drop Test Machine for Lab, Free Fall Light Drop Test Machine, Mobile Phone Micro Drop Test Machine



Model: DT3030







Specification:



Products Mobile Communication Devices Micro Drop Test Machine
 Model DT3030
 Test amount  2 PCS
 Test load (max)  2Kgf (max)
 Drop height  0 - 300mm (or specified)
 Test speed  5 - 25 cycles/min
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  850x370x850mm
 Weight  About 80kg
 Air source  ≥0.5MPa
 Power supply  AC220V 50Hz 3A or specified by user



Application:



Mobile Phone Devices Micro Drop Test Machine is apply for micro-drop repeat testing of mobile phone, tablets, electronic dictionary, etc. To check if the products function normal or not after certain cycles tests.



Features:



(1) All the testing conditions is inputted by touch panel directly.

(2) Adopt Japan SMC precise pneumatic component, durable using.

(3) Adopt touch panel+PLC as program control.

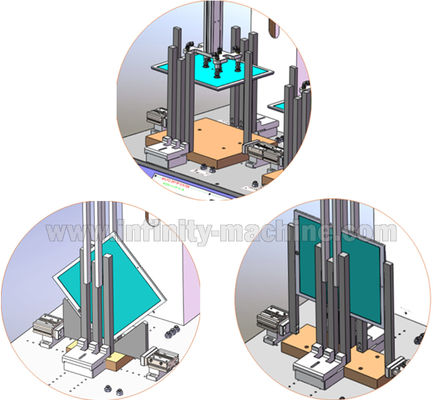

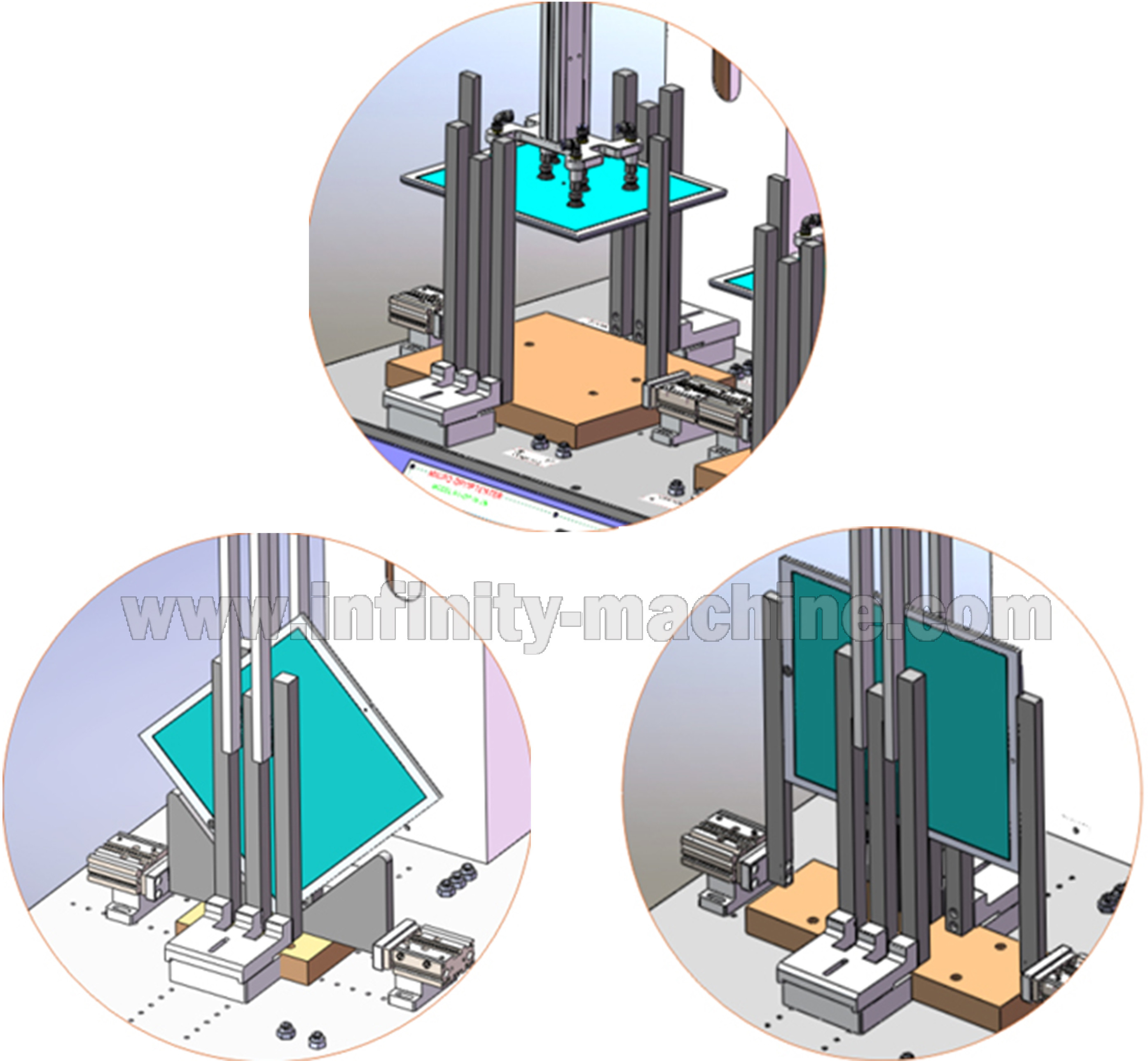

Test Introduction:



1. Faces drop test



Lab Communication Devices Micro Drop Test Machine Servo Control 0



2. Sides drop test



Lab Communication Devices Micro Drop Test Machine Servo Control 1



3. Corner test



Lab Communication Devices Micro Drop Test Machine Servo Control 2
