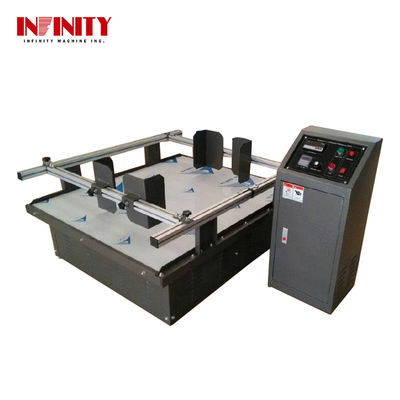

Simulation Vehicle Transport Vibration Test Machine 100~300rpm Frequency

Simulation Vehicle Transport Vibration Test Machine 100~300rpm Frequency

    • Simulation Vehicle Transport Vibration Test Machine 100~300rpm Frequency
    • Simulation Vehicle Transport Vibration Test Machine 100~300rpm Frequency
  • Simulation Vehicle Transport Vibration Test Machine 100~300rpm Frequency

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8413

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Simulation Vibration Test Machine: Standard export wooden case with operation manual and video inside.
    Delivery Time: Simulation Vibration Tester Machine: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Vibration Frequency: 100~300rpm Max. Load: 100kg / 1000kg Optional 2000kg
    Effective Area Of Working Table: 1000x1000mm Dimension: 1100x1300x650mm
    Product Name: Simulation Vibration Tester Application: Package Box
    Vibrating Manner: Cycling Type Motor: 1HP (750W)
    High Light:

    300rpm Frequency Vibration Tester Table

    ,

    Simulation Transportation Vibration Tester

    ,

    Vehicle Transport Vibration Table Testing Equipment

    Vibration Tester Table, Simulation Vehicle Transport Vibration Test Machine, Simulation Transportation Vibration Tester



    Model: RS-8413



    Application:



    Package Transportation Simulation Vibration Tester, which simulates a transporation environment to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment, electronic parts, houseware, IT, communication, furniture, gift,computer, automobile components, etc., under simulated transport packaging in compliance with American and EU transport standard.



    Features:



    1. Good performance.

    2. Digital display for vibration frequency

    3. Low noise: with synchronous noiseless belt transmission.

    4. Cycling vibration system: in compliance with USA & EURO shipping standards.

    5. To use slideway for testing sample loading and unloading: easy and safe operation.

    6. Heavy slot steel with vibration damping rubber for bottom plate of the machine, safe and stable working.





    Standard:



    Simulation vibration tester machine meets EN71, ISTA-1A/1B, ASTM3580, GB/T4857.7, ISO2247 international shipping standards.





    Specification:



     Products  Vibration tester machine
     Model  RS-8413
     Vibrating frequency  100~300rpm
     Vibrating amplitude  25.4mm (1 Inch)
     Timer  0~999.99hours
     Vibrating manner  Cycling type
     Max. load  100kg
     Effective area of working table  1000x1000mm
     Motor  1HP (750W)
     Main unit dimension (WxDxH)  1100x1300x650mm
     Weight  About 300kg
     Power supply

     AC220V 10A or specified
