2000lbs Horizontal Compression Clamping Force Tester

ASTM Package Container Clamp Testing Machine ISTA 6-Amazon 2000lbs Compression Horizontal Clamping Tester Equipment

Model: S6440

Specification:

1. Weight of maximum test piece: 1000kg;

2. Clamping pressure: 400-3000 pounds, adjustable;

3. Force calibrator: force sensor and digital display calibrating the clamping force, unit switchable between Kg, KN and Lb;

4. Force value accuracy: National Standard Class 1.6;

5. Clamping panel dimension: 1200 × 1200mm, thickness of no less than 25mm;

6. Clamp plate requirements: it is guaranteed that the two clamp plates maintain smooth without deformation under the maximum pressure working

    state, the two plates are parallel, while each plate and the floor are vertical to each other;

7. Maximum clamping space: no less than W2000 × D1200 × H1200mm;

8. Minimum clamping space: no more than W630 × D1200 × H1200mm;

9. Baseboard width: no slower than 1800 × 1800mm

10. Clamping speed: 10～300mm/min, adjustable;

11. Lifting space: 0～1000mm, adjustable

12. Power supply: 380V/50Hz

13. Safety device: overload protection, overvoltage protection, limit protection, instantaneous conquassation protection and sudden power-off

      protection;

14. Control: human-computer interface with touch screen is used for the controller that controlled by PLC program with convenient operation and

      stable performance;

15. Drive mode: hydraulic drive;

16. Manual operating arm analogs forklift’s actual operation action to control clamping, stretching, hoisting and lowering action, control panel may

      realize continuous and automatic action and single step repetition;

17. Both vertical and horizontal offsets between clamp plate and test piece can be set, repeatedly continuous and periodical clamp test can be

      realized according to setup parameters, test period can be adjusted from 1 to 99 at will;

18. Clamp duration can be set with control program from 0 to 600s at will;

19. Control panel and clamp arm are required to be installed separately for the equipment and the distance from control panel to clamp arm shall

      be more than 2 meters;

20. Baseplate shall parallel to assembling floor so as to install the test piece.

Test standards:

Compression horizontal clamping tester machine meet the requirements of ASTM D6055-96 METHOD, ISTA Packaging Test EHP Cold, LTP-2001 Clamping test,

GB/T 4857.4-2008 Basic Experiment of Packaging and Transporting Packages,

ISTA (International Safety Transit Association) 1A Packaging Performance of Independent Packaging Products That is No Heavier Than 1501b (68kg),

ASTM Standard D 4169 Standard Operating Specification for Shipping Containers and System Protection Performance test,

ASTM Standard D 6055 Standard Test Method for Compositional Load and Mechanized Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 6179 Standard Test Method for Compositional Load and Rash Transport of Large-scale Shipping Containers or Crates,

ASTM Standard D 999, Standard Test Method for Shock Test of Shipping Containers,

ASTM Standard D 5445 Geographical Symbols for Standard Operational Actions in Cargo Transport.

Application:

Package container compression horizontal clamping testing machine mainly applies to the detection of the bearing capacity of the product package clamped by forklift clamps during the transport process, and the evaluation of the protective capacity of product package to the inner packaged goods through the simulation test.

Picture:

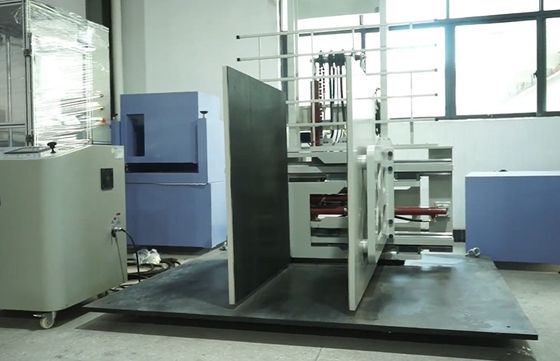

ISTA 6-AMAZON Package carton compression horizontal clamping test eqiupment
