| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | V8010 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vibration shake tester equipment: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Vibration Frequency: | 100~300rpm | Max. Load: | 100kg / 1000kg Optional 2000kg |
|---|---|---|---|
| Effective Area Of Working Table: | 1000x1000mm | Dimension: | 1100x1300x650mm |
| Product Name: | Vibration Table Testing Equipment | Application: | Package Box |
| Vibrating Manner: | Cycling Type | Motor: | 1HP (750W) |

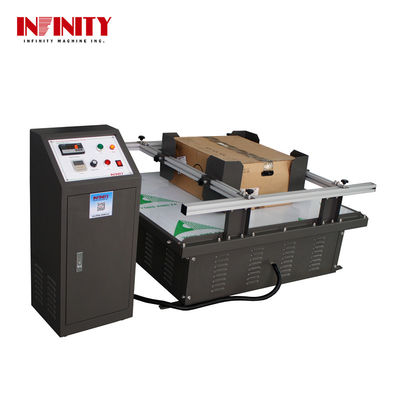

Model: V8010
Features:
1. Good performance.
2. Digital display for vibration frequency
3. Low noise: with synchronous noiseless belt transmission.
4. Cycling vibration system: in compliance with USA & EURO shipping standards.
5. To use slideway for testing sample loading and unloading: easy and safe operation.
6. Heavy slot steel with vibration damping rubber for bottom plate of the machine, safe and stable working.
Standard:
Package carton shaking test machine meets EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.
Specification:
| Products | Vibration tester machine | ||
| Model | V8010 | ||
| Vibrating frequency | 100~300rpm | ||
| Vibrating amplitude | 25.4mm (1 Inch) | ||
| Timer | 0~999.99hours | ||
| Vibrating manner | Cycling type | ||
| Max. load | 100kg | ||
| Effective area of working table | 1000x1000mm | ||
| Motor | 1HP (750W) | ||
| Main unit dimension (WxDxH) | 1100x1300x650mm | ||
| Weight | About 300kg | ||
| Power supply |
AC220V 10A or specified |
||
Application:
Package carton vibration table testing equipment apply for conveyance test of toys, electronic parts, houseware, IT, communication, furniture, gift, package in compliance with USA & EURO shipping standards.
