Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz
Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz
Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max Load: 100kg Dropping Height Range: 300~1500mm Adjustable
Dimension Of Equipment: 1755x1235x2415mm Dimension Of Supporting Arm: 240x290x8mm
Max Dimension Of Sample: W600xD800xH1000m Power Of Lift Motor: 0.75KW
Motor Power: 1/2HP Power Supply: AC 380V 50Hz
Name: GB4757.5-84 300~1500mm Hight Single Arm Package Carton Box Drop Impact Tester With Digital Display Test Space: 800*600*1000mm
High Light:

drop weight tester

,

drop test equipment

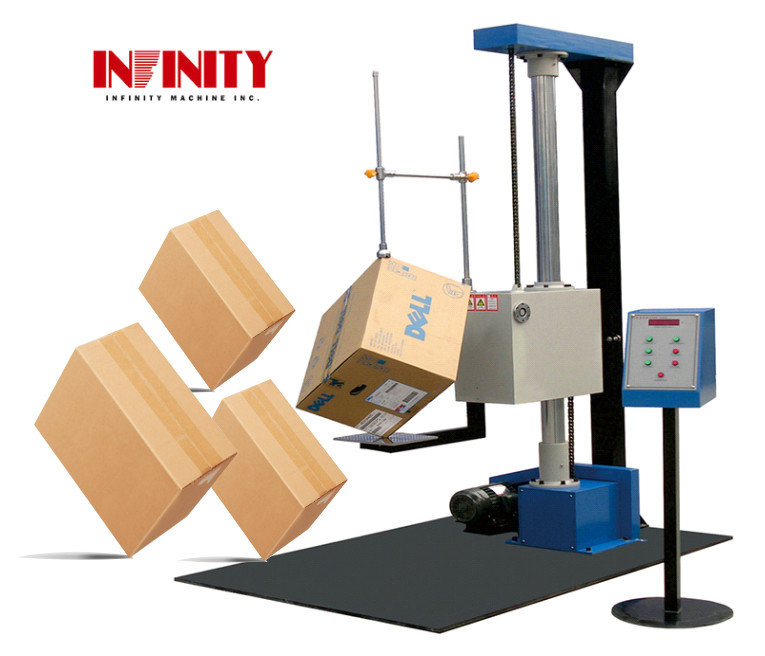

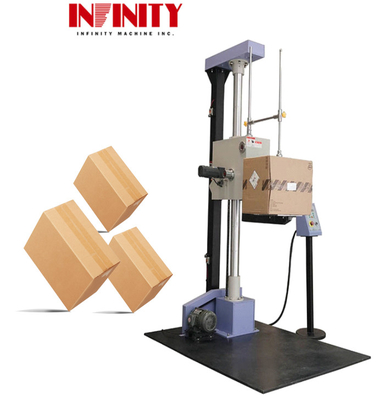

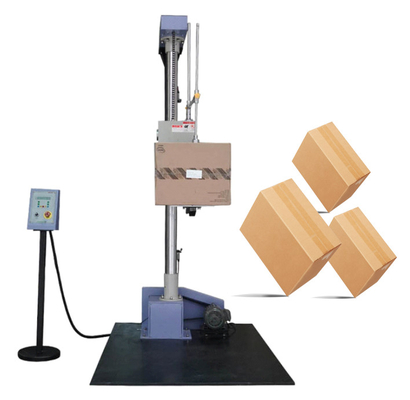

Single Arm Package Carton Box Drop Testing Machine With Digital Display  Model: RS-315



Application:



This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height.



This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 0

Specification:



 Model  RS-315
 Dropping height range  300~1500mm
 Display  Digital displayer
 Height accuracy  ≤2% of the setted value
 Maximum load  100kg
 Test space (LxWxH)  800x600x1000mm
 Angle tolerance  ≤5°
 Motor  1/2HP
 Dimension (WxDxH)mm  1700x1200x2515
 Weight  About 750kg
 Power supply  AC380V 50Hz or specified by user



Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 1

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 2

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 3

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 4

Our factory:

Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 5



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 6

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.





Single Arm Package Carton Box Drop Testing Machine With Digital Display 0.75KW AC 380V 50Hz 7
