| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS - V Series |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Name: | High-frequency Vibration Test Bench | Standards: | MIL, ASTM, IEC, ISO,BS, JIS |
|---|---|---|---|
| Size Of Power Amplifier （LxWxH）: | 720x545x1625 | Rated Displacement: | 25 |
| Vibrating Manner: | Cycling Type | Standard Application: | IEC68-2-6, GB/T13310-1991, GB/T2423.10 |
| Colour: | Blue | Warranty: | 1 Year |
| High Light: | packaging testing equipments,packaging testing instruments |
||

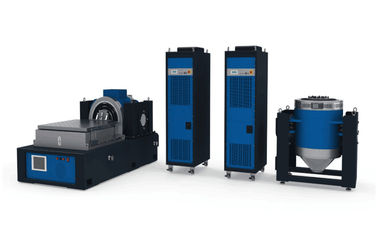

High-frequency Vibration Test Bench for Large-scale Household Appliances Transportation Vibration Simulation Experiment
Model:RS-V Series
Purpose:
The vibration test is to simulate the varied vibration environment encountered during the manufacturing, assembling, transporting and application stage of products, applied to certify the capacity of products in withstanding the environmental vibration. The vibration can be divided to the free vibration and forced vibration. The free vibration is a system under no any external force exerted to it and it vibrates at one or multiple natural frequencies. The natural frequency is the dynamic character of a system that counts on system mass and stiffness; and the forced vibration is occurred under certain external forced exerted to the system. Most structures would make certain level of vibration while external force is exerting on it, therefore we must carefully consider the vibration behavior while making engineering design task.
Features:
The main purpose of perform vibration test is to display out the potential flaw hidden in a product; let the flawless products pass through the screen process and the flawed products appear in earlier stage to repair of remove them in order to promote the reliability of products. This test model also can be applied to analyze the integrity of specimen and/or study its dynamic character.
Standards: MIL, ASTM, IEC, ISO,BS, JIS.
Specification:
| Model | RS-V100 | RS-V150 | RS-V200 | RS-V300 | RS-V600 | RS-V1000 | |
| System main spec | Rated sine vibration force(N) | 980 | 1470 | 1960 | 2940 | 5880 | 9800 |
| Random thrust | 980 | 1470 | 1960 | 2940 | 5880 | 9800 | |
| Impact thrust(bmx) | 1960 | 2940 | 3920 | 5880 | 11760 | 19600 | |
| Rated Frequency range(Hz) | 5-4500 | 5-4000 | 5-3000 | ||||
| Rated Acceleration(m/s2) No-load | 490 | 735 | 980 | 1176 | |||
| Rated speed(m/s) | 1.75 | 1.15 | 1.75 | 1.1 | 1.5 | 1.8 | |
| Rated displacement | 25 | ||||||
| Max Testing load(Kg) | 70 | 120 | 200 | 120 | |||
| Consumption power(KVA) | 4.5 | 5.5 | 7.5 | 17 | 20 | ||
| Voltage(V) | 3∮ 380V±10% AC50Hz | ||||||
| Vibration body | The weight of the moving parts(Kg) | 2 | 2.7 | 5.6 | 8.3 | ||
| Table top size(mm) | ∮110 | ∮150 | ∮200 | ∮200 | |||
| Table weight(Kg) | 320 | 450 | 630 | 940 | |||
| Table size(LxWxH)(mm) | 660x550x650 | 720x550x650 | 790x680x660 | 830x690x825 | |||
| Power amplifier | Max output power(KVA) | 1 | 2 | 3 | 8 | 10 | |
| Weight of Power amplifier(Kg) | 210 | 230 | 240 | 310 | 340 | ||
Size of power amplifier | 720x545x1625 | ||||||
| Vibration controller( Optional) | SDVC-2 SDVC-3 RDVC-2 RDVC-3 | ||||||
| Cooling method | Cooling method | ||||||
| Standard application | IEC68-2-6, GB/T13310-1991, GB/T2423.10 | ||||||
Horizon sliding table | See below | ||||||
Optional Horizon sliding table:
| Model | Table outside size | The upper limit frequency(Hz) | Table weight |
| Rs0303 | 300x300x30 | 2000 | 8.3 |
| Rs0404 | 400x400x32 | 1800 | 15.6 |
| Rs0505 | 500x500x25 | 1000 | 18.5 |
| Rs0606 | 600x600x35 | 2000 | 26.1 |
| Rs0707 | 700x700x35 | 1500 | 48.8 |
| Rs0808 | 800x800x45 | 2000 | 83.5 |
| Rs1010 | 1000x1000x50 | 1500 | 144.6 |
| Rs1212 | 1200x1200x50 | 1200 | 204 |
| Rs1515 | 1500x1500x50 | 1200 | 320 |
| Rs2020 | 2000x2000x50 | 500 | 564 |
| Comments | If there are special requirement for the horizon sliding table, we can do the custom-making. | ||
