Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box

Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box

  • Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
  • Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
  • Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
  • Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
  • Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8401 / RS-8401A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity(optional): 10kN,20kN,50kN Unit(switchable): 1/250,000
Stroke Resolution: 0.001mm Motor: AC Servo Motor/AC Frequency Control Motor
Main Unit Dimension (W*D*H): 1750*1000*2000mm Or 1950*1200*2000mm Main Unit Weight: About 1250kg Or 1550kg/About 1350kg Or 1650kg
Power: AC220V 5A Or Specified By User Warranty: 1 Year
High Light:

packaging testing instruments

,

packaging testing equipment

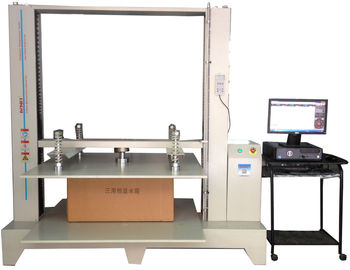

 Honeycomb Box Compression Testing Machine / Servo Control Compression Tester for Paper Box



Model: RS-8401 / RS-8401A



Application:



Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.



Features:



High stability:

Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.



High precision:

Adopt highly precise explosion-proof loadcell,repeat tolerance: ±0.01%F.S.



Professional control software:

Servo motor control and computer professional software control. can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .



Specification:



 Model  RS-8401
 Capacity (optional)  10KN, 20KN, 50KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
 Load resolution  1/250,000
 Load accuracy  ±1%
 Test space  1000x1000x1200mm, 1200x1200x1200mm or 1500x1500x1500mm
 Test speed  0.001~200mm/min
 Stroke resolution  0.001mm
 Software  Special close-loop control software
 Motor  AC servo Motor
 Dimension (WxDxH)  1750x1000x2000mm or 1950x1200x2000mm
 Weight  1250Kg or 1550kg
 Power supply  AC220V 5A or specified by user



Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box 0

Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box 1

Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box 2

Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box 3

Honeycomb Box Package Testing Equipment Servo Control Compression Tester for Paper Box 4
