Economic Electronic Product Tester / Headphone Tensile Testing Machine

Economic Electronic Product Tester / Headphone Tensile Testing Machine

Economic Electronic Product Tester / Headphone Tensile Testing Machine

Product Details:

Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8008H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Measuring Tension Capacity: 0~200N Digital Gauge Resolution: 0.01N
Load Unit: Kg、N、Lb (changeable) Measuring Speed: 15~300mm/min
Measuring Stroke: 0~300mm Machine Dimension: Around W650 X D220 X H 260mm
Machine Weight: Around 35kg Power Supply: 1∮ AC220V 3A Or Specified

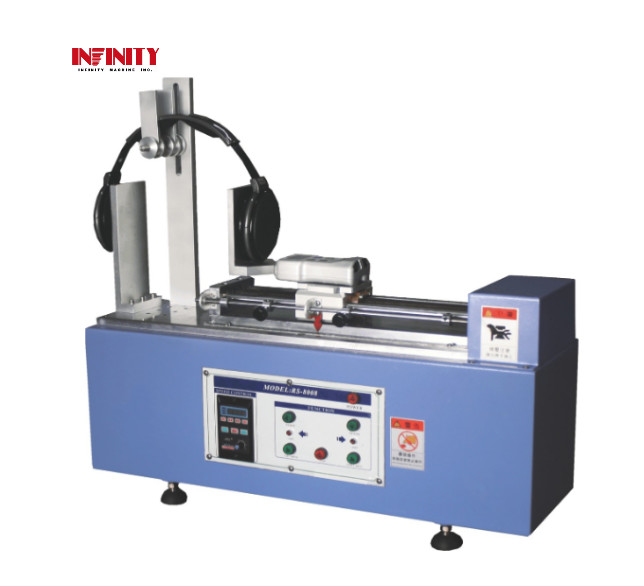

Economic Electronic Product Tester / Headphone Tensile Testing Machine



Model: RS-8008H



Application:



 Apply for headphone tensile test. clamping the headphone, fasten one end of earphone, headband clamping on support rod, the other end of

 earphone fix on the fixture of the digital tensile gauge, control the screw ball move right, the digital tensile gauge will show the tensile data (can

 reserve the max. tensile), by this way to check the relation between tensile distance and tensile once user pull back the headphone onto the head.



Feature:



Adopt Taiwan precision AC miniwatt speed adjustable motor driver, screw ball, can display the testing speed;

Adopt the calibrated scale, can show the data, refer to headband pull-push stroke;

Mechanical stroke limiting protection function.



Specification:



 Measuring tensile capacity  0~200N
 Digital gauge resolution  0.01N
 Load unit  Kg,N,Lb (changeable)
 Measuring speed  15~300mm/min
 Measuring stroke  0~300mm
 Machine dimension  Around W650 x D220 x H 260mm
 Machine weight  Around 35kg
 Power supply  1∮AC220V 3A or designated
