| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8008H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Measuring Tension Capacity: | 0～200N | Digital Gauge Resolution: | 0.01N |
|---|---|---|---|
| Load Unit: | Kg、N、Lb (changeable) | Measuring Speed: | 15～300mm/min |
| Measuring Stroke: | 0～300mm | Machine Dimension: | Around W650 X D220 X H 260mm |
| Machine Weight: | Around 35kg | Power Supply: | 1∮ AC220V 3A Or Specified |
| High Light: | phase rotation tester,electrical testing machine |
||

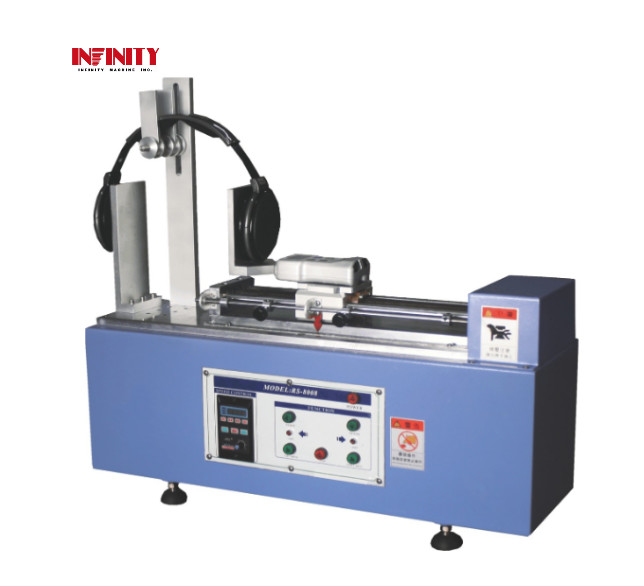

Economic Electronic Product Tester / Headphone Tensile Testing Machine
Model: RS-8008H
Application:
Apply for headphone tensile test. clamping the headphone, fasten one end of earphone, headband clamping on support rod, the other end of
earphone fix on the fixture of the digital tensile gauge, control the screw ball move right, the digital tensile gauge will show the tensile data (can
reserve the max. tensile), by this way to check the relation between tensile distance and tensile once user pull back the headphone onto the head.
Feature:
Adopt Taiwan precision AC miniwatt speed adjustable motor driver, screw ball, can display the testing speed;
Adopt the calibrated scale, can show the data, refer to headband pull-push stroke;
Mechanical stroke limiting protection function.
Specification:
| Measuring tensile capacity | 0～200N |
| Digital gauge resolution | 0.01N |
| Load unit | Kg,N,Lb (changeable) |
| Measuring speed | 15～300mm/min |
| Measuring stroke | 0～300mm |
| Machine dimension | Around W650 x D220 x H 260mm |
| Machine weight | Around 35kg |
| Power supply | 1∮AC220V 3A or designated |
