Insertion And Extraction Force Testing Machine 0.1-1200mm/Min Test Speed Range For Plug Pull Testing

Insertion And Extraction Force Testing Machine 0.1-1200mm/Min Test Speed Range For Plug Pull Testing

Product Description:

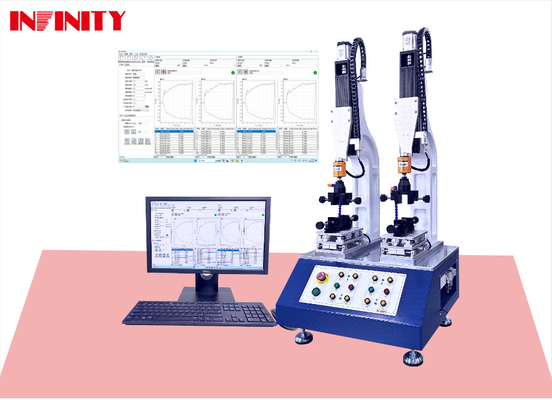

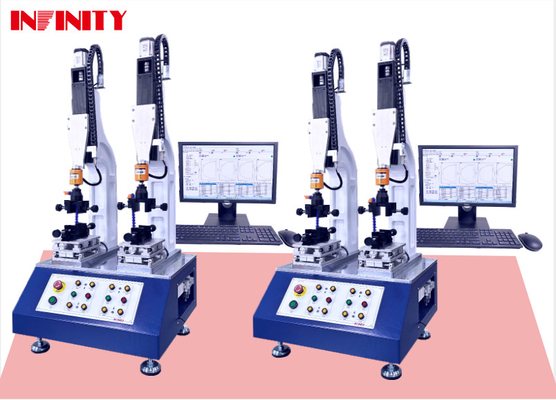

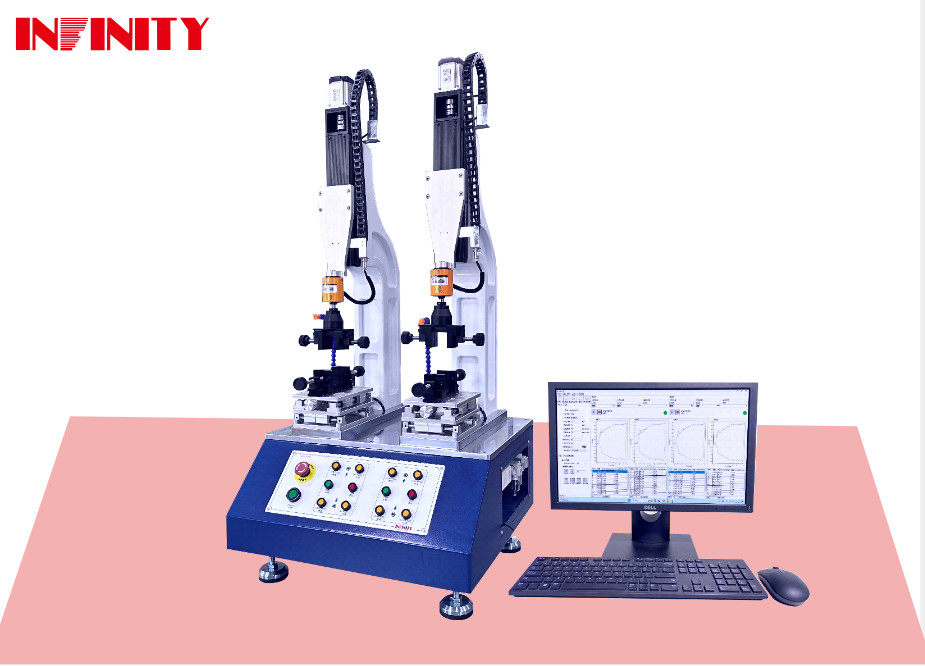

The Insertion and Extraction Force Testing Machine - IF5112 Series is a state-of-the-art testing equipment designed for testing the force value of various products. It is a dual-station insertion extraction force tester that can accurately measure the force value of up to 0.5KN (50Kg F). This machine is perfect for quality control and product development purposes, providing reliable and precise results.

• Dual-station Insertion Extraction Force Tester
• Two-station Plug and Pull Force Testing
• Connector Insertion and Extraction Force Testing Machine
• Maximum test trip of 150mm
• Force value sensor capacity of 0.5KN (50Kg F)

The IF5112 Series Insertion and Extraction Force Testing Machine has a compact and sturdy design, with dimensions of 1426*618*1437mm. It is equipped with a high-quality force value sensor that can accurately measure the force value of up to 0.5KN (50Kg F). The machine weighs approximately 185 Kg, making it easy to transport and install in any testing facility.

This dual-station insertion extraction force tester is specially designed for testing the force value of various products. It is commonly used in industries such as electronics, automotive, medical, and consumer goods. The two-station plug and pull feature make it suitable for testing the force value of connectors, switches, and other electronic components. The maximum test trip of 150mm allows for testing of different sizes of products, providing versatility and convenience.

• Accurate and reliable force value measurement
• Highly versatile and suitable for various industries
• Easy to use and operate
• Compact and sturdy design for long-term use
• Provides precise results for quality control and product development purposes

The IF5112 Series Insertion and Extraction Force Testing Machine is a top-of-the-line testing equipment that offers accurate and reliable force value measurement. Its compact and sturdy design, along with its versatile features, make it an essential tool for industries that require precise force testing. With its maximum test trip of 150mm and force value sensor capacity of 0.5KN (50Kg F), this dual-station insertion extraction force tester is an ideal choice for quality control and product development purposes. Invest in the IF5112 Series Force Testing Machine and ensure the quality and reliability of your products.

Features:

• Product Name: Insertion and Extraction Force Testing Machine
• Test station: 2 Slot
• Force value accuracy: ±0.3%
• Application: The Equipment Is Used For The USB Interface Of Various Electronic Products To Pull The Force And Pressure Test, And Obtains The Friction Force And The Result After The Pressure Test, So As To Evaluate Whether The Product Meets The Manufacturing Requirements.
• Displacement measurement accuracy: ±0.05mm
• Features:
  • Real-time Display Of The Current Force Value And Displacement Changes
  • Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
  • Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
  • The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
  • Open Force Value Protection Function
    • A Protection Value Is Set According To The Conventional Test Force
    • When Operation Or Point Movement Will Automatically Stop Moving
    • To Reduce Damage To The Equipment And Precision Samples
  • The Test Method Management Logic Is Clear
  • The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
  • The Test Data Is Stored In A Local Database For Easy Access And Query
  • The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English)
  • The Report Can Be Automatically Generated Without Input
  • Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
  • Meet The Independent Control And Independent Testing Of 2 Groups Of Products
• Key Features:
  • Plug and Pull Force Machine
  • Dual-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine
  • Double Station Insertion Extraction Force Test Machine

Technical Parameters:

Applications:

Brand Name: INFINITY

Model Number: IF5112

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 300 sets / month

Force value sensor capacity: 0.5KN (50Kg F)

Features:

• Real-time Display Of The Current Force Value And Displacement Changes
• Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
• Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
• The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
• Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples
• The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
• The Test Data Is Stored In A Local Database For Easy Access And Query
• The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input
• Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
• Meet The Independent Control And Independent Testing Of 2 Groups Of Products

Displacement Measurement Accuracy: ±0.05mm

Test Speed Accuracy: ±0.5%

Machine Weight: About 185 Kg

Application and Scene:

The INFINITY IF5112 Insertion and Extraction Force Testing Machine is the perfect solution for testing the insertion and extraction force of connectors. It is suitable for various industries, such as electronics, automotive, communication, and more. This machine is specifically designed to accurately measure and record the force required to insert and extract connectors, ensuring the quality and reliability of products.

The machine can be used in a variety of scenarios, including:

• Dual-station Insertion Extraction Force Tester: With its dual-station design, the IF5112 allows for simultaneous testing of two connectors, increasing efficiency and productivity.
• Dual-station Plug and Pull Force Testing: The IF5112 is also suitable for plug and pull force testing, making it a versatile machine for various testing needs.
• Connector Insertion and Extraction Force Testing Machine: This machine is specifically designed for testing the force required for inserting and extracting connectors, making it an essential tool for connector manufacturers.
• Double Station Insertion Extraction Force Test Machine: With its double station design, the IF5112 allows for testing of two different connectors at the same time, improving efficiency and reducing testing time.

With its high precision and user-friendly interface, the INFINITY IF5112 Force Testing Machine is a must-have for any company or industry that requires accurate and reliable force testing. Made in China and certified with CE and ISO, this machine is of top quality and has a minimum order quantity of just 1 unit. Contact us now to negotiate a price and place your order!

Customization:

Brand Name: INFINITY

Model Number: IF5112

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 300 sets / month

Test speed accuracy: ±0.5%

Maximum test trip: 150mm

Force value accuracy: ±0.3%

Machine weight: About 185 Kg

Application: The Equipment Is Used For The USB Interface Of Various Electronic Products To Pull The Force And Pressure Test, And Obtains The Friction Force And The Result After The Pressure Test, So As To Evaluate Whether The Product Meets The Manufacturing Requirements.

• Double Station Insertion Extraction Force Test Machine
• Dual-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine

Packing and Shipping:

The Insertion and Extraction Force Testing Machine is packaged in a sturdy cardboard box with foam padding to protect it during shipping. The box is labeled with the product name and specifications for easy identification.

The Insertion and Extraction Force Testing Machine is shipped via a trusted courier service to ensure safe and timely delivery. The package will be tracked and a tracking number will be provided to the customer for easy monitoring of the shipment.

For international orders, the package will be accompanied by all necessary customs documentation to facilitate smooth clearance through customs.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is INFINITY.
• Q: What is the model number of this product?
  A: The model number of this product is IF5112.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What certifications does this product have?
  A: This product is certified with CE and ISO.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1.
• Q: Can the price be negotiated?
  A: Yes, the price for this product is negotiable.
• Q: How is this product packaged?
  A: This product is packaged with clear sheet, sponge, and wood carton.
• Q: How long is the delivery time for this product?
  A: The delivery time for this product is 20-30 days after the order is confirmed.
• Q: What payment methods are accepted for this product?
  A: This product can be paid for with TT, PayPal, Moneygram, and other methods.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is 300 sets per month.
