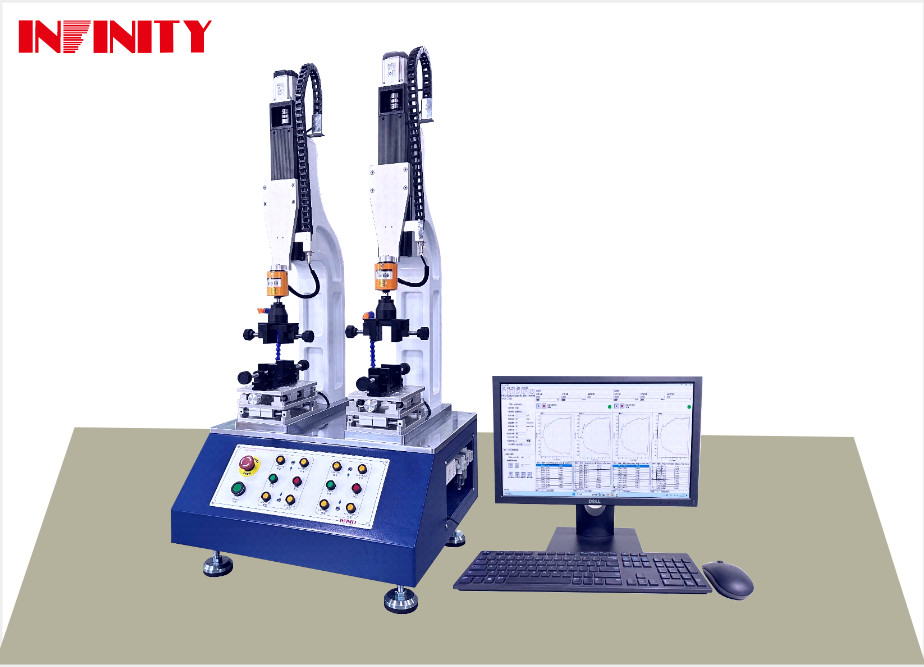

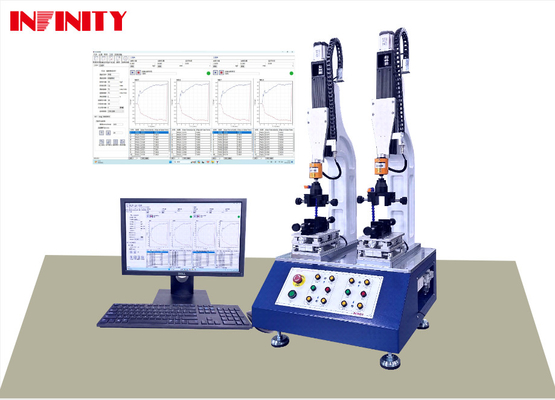

High Precision Two-Station Plug And Pull Force Testing Connector Insertion And Extraction Force Testing Machine
Product Description:
Force Testing Machine
The Force Testing Machine is a high-precision testing equipment designed for measuring the force and displacement of connectors during insertion and extraction processes. It is equipped with advanced technology and features to ensure accurate and reliable results.
Product Attributes:
- Displacement measurement accuracy: ±0.05mm
- Force value sensor capacity: 0.5KN (50Kg F)
- Maximum test trip: 150mm
- Test station: 2 Slot
- Force value accuracy: ±0.3%
The Force Testing Machine is designed to meet the highest standards of accuracy and precision in force and displacement measurements. With its advanced features and capabilities, it is the perfect choice for industries that require precise testing of connectors.
Key Features:
- Dual-station Plug and Pull Force Testing: The Force Testing Machine is equipped with two testing stations, allowing for simultaneous testing of two connectors. This saves time and increases efficiency.
- Connector Insertion and Extraction Force Testing: The machine is designed to accurately measure the force required for inserting and extracting connectors, providing valuable data for product development and quality control.
- Dual-station Insertion Extraction Force Tester: With its dual-station design, the machine can perform both insertion and extraction force testing, making it a versatile and cost-effective testing solution.
The Force Testing Machine is an essential tool for industries such as electronics, automotive, and aerospace, where the reliability and performance of connectors are critical. With its high accuracy and advanced features, it is the ideal choice for all your force testing needs.
Features:
- Product Name: Force Testing Machine
- Power: AC220V 5A 50Hz
- Force value sensor capacity: 0.5KN (50Kg F)
- Machine weight: About 185 Kg
- Displacement decomposition degree: 0.001mm
- Force value accuracy: ±0.3%
- Dual-station Insertion Extraction Force Tester
- Two-station Plug and Pull Force Testing Connector
- Insertion and Extraction Force Testing Machine
- Double Station Insertion Extraction Force Test Machine
Technical Parameters:
| Project |
Specifications |
| Test station: |
2Slot |
| Force value sensor capacity: |
0．5KN(50Kg f ) |
| Force value accuracy: |
±0.3% |
| Displacement measurement accuracy: |
±0.05mm |
| Displacement decomposition degree: |
0．001mm |
| Maximum test trip: |
150mm |
| Test speed range: |
0．1~1200mm/min |
| Test speed accuracy: |
±0.5% |
| Unit size (WxDxH): |
1426x 618x 1437mm |
| Machine weight: |
About 185 Kg |
| Power: |
AC220V 5A 50Hz |
|
Applications:
INFINITY Force Testing Machine - IF5112 Series
Product Description:
The INFINITY IF5112 Series Force Testing Machine is a high-quality and efficient machine designed for testing the force and displacement changes of various connectors. It is suitable for use in a variety of industries, including electronics, automotive, aerospace, and more. With its advanced features and user-friendly interface, this force testing machine is the perfect choice for all your testing needs.
Product Attributes:
- Brand Name: INFINITY
- Model Number: IF5112
- Place of Origin: MADE IN CHINA
- Certification: CE, ISO
- Minimum Order Quantity: 1
- Price: Negotiate
- Packaging Details: Clear sheet+sponge+wood carton
- Delivery Time: 20-30 days after order confirmed
- Payment Terms: TT, PAYPAL, Moneygram, and more
- Supply Ability: 300 sets/month
- Product number: IF5112 Series
- Power: AC220V 5A 50Hz
- Features: Real-time Display Of The Current Force Value And Displacement Changes, Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram. Language Has Simplified/Traditional/English Three Operation Interface Can Be Switched, The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers. Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples. The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information. The Test Data Is Stored In A Local Database For Easy Access And Query. The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input. Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents. Meet The Independent Control And Independent Testing Of 2 Groups Of Products.
- Test speed range: 0.1~1200mm/min
- Displacement measurement accuracy: ±0.05mm
Product Application:
The IF5112 Series Force Testing Machine is designed for testing the force and displacement changes of various connectors, making it suitable for use in the following applications and industries:
- Electronic connectors testing
- Automotive connectors testing
- Aerospace connectors testing
- Industrial connectors testing
- Medical connectors testing
- Military connectors testing
Product Features:
- Real-time display of the current force value and displacement changes
- Can display force-displacement (kgf-mm) or force-time (kgf-time) curve diagram
- Language has simplified/traditional/English three operation interface can be switched
- Force value unit can be switched between N, Lb, Gf, and Kgf, suitable for global customers
- Open force value protection function to reduce damage to equipment and samples
- Clear test method management logic with correctness check of parameters and error information
- Test data is stored in a local database for easy access and query
- Header content of the report can be modified at any time (both Chinese and English)
- Report can be automatically generated without input
- Data report, curve report can be printed and exported as Word, Excel, PDF, and other format documents
- Can meet the independent control and independent testing of 2 groups of products
Application Scenario:
The IF5112 Series Force Testing Machine can be used in a variety of scenarios, including the following:
- Quality control testing in production lines
- Research and development laboratories
- Product testing centers
- Supplier qualification testing
- Product certification testing
Product Package:
The IF5112 Series Force Testing Machine comes with a clear sheet, sponge, and wood carton packaging to ensure safe and secure transportation.
Delivery and Payment:
Delivery time for the IF5112 Series Force Testing Machine is 20-30 days after order confirmation. We accept various payment methods such as TT, Paypal, Moneygram, and more. Price is negotiable depending on the quantity ordered.
Ordering Information:
To place an order for the IF5112 Series Force Testing Machine, please provide the following information:
- Brand Name: INFINITY
- Model Number: IF5112
- Place of Origin: MADE IN CHINA
- Quantity
- Required certification (CE, ISO)
- Preferred packaging details
- Delivery time
- Payment method
Customization:
INFINITY Force Testing Machine IF5112
Brand Name: INFINITY
Model Number: IF5112
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 300 sets / month
Test speed range: 0.1~1200mm/min
Test speed accuracy: ±0.5%
Power: AC220V 5A 50Hz
Maximum test trip: 150mm
Force value sensor capacity: 0.5KN(50Kg F )
Customized Services for INFINITY Force Testing Machine IF5112
Our IF5112 force testing machine comes with the following features:
- Dual-station Insertion Extraction Force Tester
- Two-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine
- Dual-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine
In addition to these standard features, we also offer customized services to meet your specific testing needs. Our team of experts will work closely with you to understand your requirements and provide tailor-made solutions. Our customized services include:
- Specialized test speed range
- Higher test speed accuracy
- Customized power supply options
- Extended test trip capacity
- Increased force value sensor capacity
Don't see what you need? Contact us and we will work with you to create a custom solution for your force testing needs.
Packing and Shipping:
Packaging and Shipping
The Force Testing Machine is carefully packaged and shipped to ensure its safe delivery to our customers. The packaging process includes:
- Wrapping the machine in a protective layer to prevent scratches and damage during transit.
- Placing the machine in a sturdy cardboard box with sufficient padding to absorb any impact during shipping.
- Sealing the box with strong tape to secure its contents.
- Attaching a shipping label with the customer's address and other necessary information.
We use trusted shipping carriers to deliver the Force Testing Machine to our customers, ensuring timely and reliable delivery. Tracking information will be provided to the customer so they can monitor their package's progress. We also offer expedited shipping options for an additional cost, for those who require their machine to be delivered urgently.
FAQ:
- Q: What is the brand name of this product? A: The brand name of this product is INFINITY.
- Q: What is the model number of this product? A: The model number of this product is IF5112.
- Q: Where is this product made? A: This product is made in China.
- Q: What certifications does this product have? A: This product is certified with CE and ISO.
- Q: What is the minimum order quantity for this product? A: The minimum order quantity for this product is 1 set.
- Q: Is the price of this product negotiable? A: Yes, the price of this product is negotiable.
- Q: How is this product packaged? A: This product is packaged with clear sheet, sponge, and wood carton.
- Q: How long is the delivery time for this product? A: The delivery time for this product is 20-30 days after order confirmed.
- Q: What are the payment terms for this product? A: The payment terms for this product include TT, PayPal, Moneygram, and other methods.
- Q: What is the supply ability of this product? A: The supply ability of this product is 300 sets per month.
