| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Models: | IE10A 150L ,IE10A 225L, IE10A 408L, IE10A 800L ,IE10A 1000L |
|---|---|---|---|
| Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat | Temperature Range: | -70℃ ～ +150℃ |
| Temperature Fluctuation: | ±0.5℃ | Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
| Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |

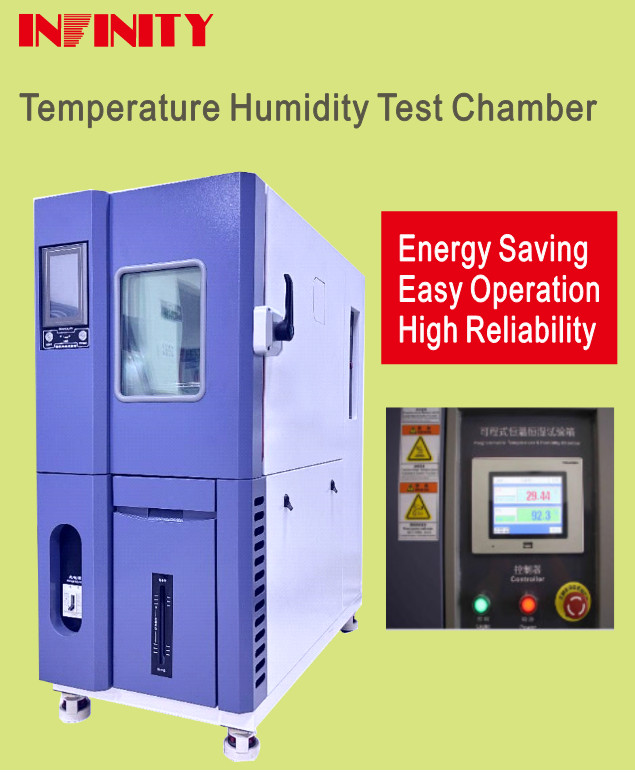

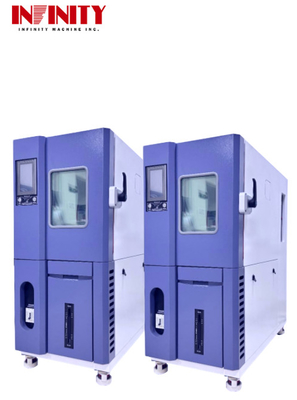

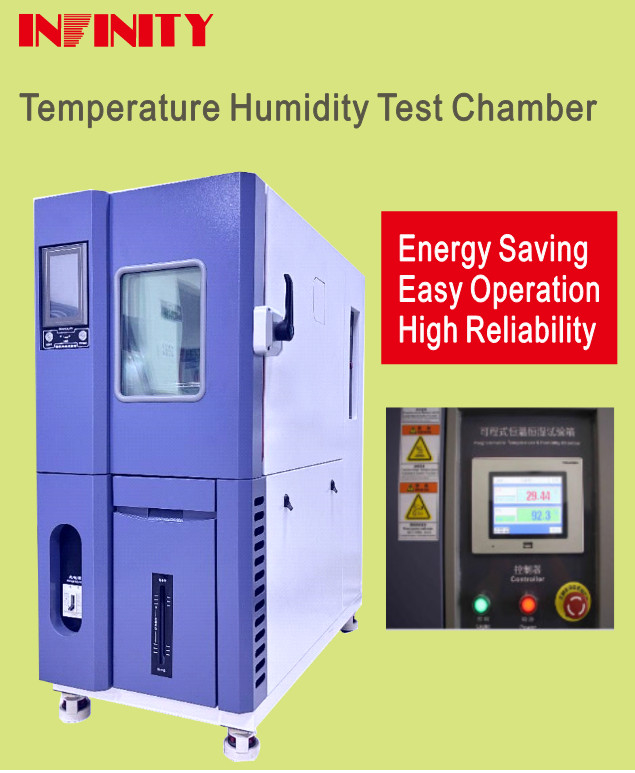

±0.5C Temperature Fluctuation Constant Temperature Humidity Test Chamber for Performance
A Climatic Test Chamber is an essential equipment for industries that require precise temperature and humidity control for their products. Our Programmable Constant Temperature and Humidity Test Chamber is designed to provide accurate and stable testing conditions for a wide range of products. It is suitable for various industries such as electronics, pharmaceuticals, automotive, and more.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
Looking for a reliable Climatic Test Chamber to meet your specific testing needs? Look no further than the INFINITY IE10A - a top-of-the-line Programmable High & Low Temperature humidity Test Chamber that guarantees precise and consistent results.
Our constant temperature and humidity test chamber is designed and manufactured in our state-of-the-art facility in China, ensuring top-notch quality and performance. It is also CE and ISO certified, giving you the assurance of its safety and reliability.
We have a minimum order quantity of 1 unit, and our prices are negotiable. Our Packaging Details include a Clear sheet, sponge, and a sturdy wood carton to ensure safe delivery. With a Delivery Time of 20-30 days after order confirmation, you can expect to receive your customized test chamber in a timely manner.
We offer flexible Payment Terms, including TT, PAYPAL, Moneygram, and more, making it easier for you to complete your purchase. Our Supply Ability is 200 sets per month, ensuring that we can meet the demands of our customers.
Our constant temperature and humidity test chamber boasts impressive features, including a Temperature decrease rate of From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃), and a Temperature fluctuation of ±0.5℃. The Sample holder is made of Stainless Steel and has 2 layers that are Height Adjustable and can bear a weight of 30kg per layer. The humidity uniformity is ±3.0％RH (no Load), ensuring accurate and reliable results. The power requirements for our test chamber are AC220V;50Hz;5.5kw-13kw.
Trust INFINITY for all your Climatic Test Chamber needs. Contact us today to discuss your specific requirements and get a customized solution that meets your exact needs.
Our constant temperature and humidity test chamber is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials used are of high quality and provide adequate protection during transportation.
Each unit is first placed in a sturdy wooden crate and then wrapped in multiple layers of bubble wrap to prevent any damage during handling and shipping.
For international shipments, we use strong and durable wooden pallets to further ensure the safety of the product during long-distance transportation.
Our shipping team works closely with trusted and reliable freight forwarders to arrange for the most efficient and timely delivery of our products.
Once the product is ready for shipment, we provide our customers with a detailed packing list and all necessary shipping documents for smooth customs clearance.
For added convenience, we also offer the option of express shipping for urgent orders.
At Constant Temperature and Humidity Test Chamber, we take great pride in our packaging and shipping process, ensuring that our products reach our customers in perfect condition.
