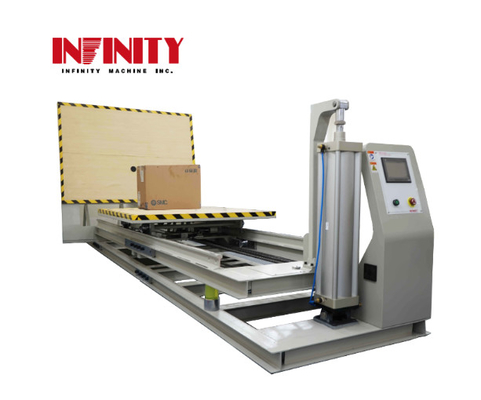

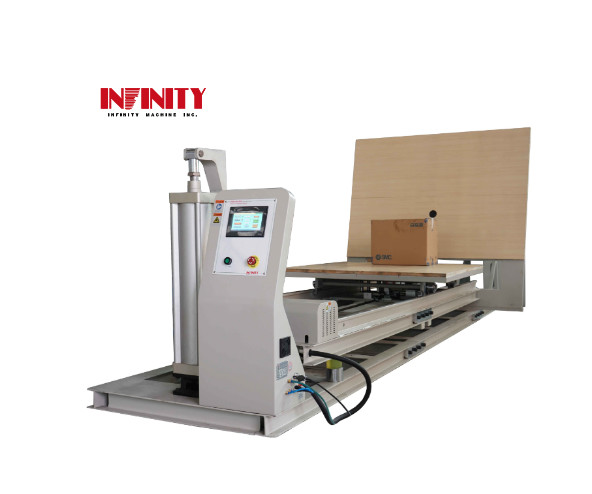

GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test

GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test

  • GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test
  • GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test
GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-15-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max. Load: 200Kg (or Customized) Specimen Max. Dimension: L1400xW1400xH2000mm
Controller: LCD Panel Max. Slide Space: 2000mm (or Customized)
Impact Speed Range: 1.305~2.68m/s Impact Plate Size: W2000×H2200 Mm
Impact Speed Resolution: ≤±5% Inclined Angle: 0~25° Cylinder Adjusting,deviation ±1°
High Light:

impact resistance tester

,

impact test equipment



Inclined Plane Impact Tester



Model: RS-15-200



Application:



This machine simulated products package impact resistance capability, such as products carrying, shelf pileup, motor slider, fork load and unload, products shipping, etc.. also used for many scientific research institution, university, package testing center, package manufacture, forwarder company to do inclined plane impact test.



Standards:



GB/T 4857.11-2005,GB/T1019.2008,ISTA 1A



Feature:



Can locate motor tackle flexible, easy to get needed speed changing value;

Low tackle height, good for specimen installation;

Can adjust the plane to horizontal, easy to fix the specimen;

Can remote control the machine, make sure user’s security;

Fix the machine onto the floor, easy installation and operation;

Impact plane can fix a impact block, height adjustable;

Adopt touchable panel to control.



Specification:



 Max. load  200Kg (or customized)
 Specimen max. dimension  L1400xW1400xH2000mm
 Angle between impact plane and orbit  plane  90°±1°
 Max. slide space  2000mm (or customized)
 Impact speed range  1.305~2.68m/s
 Impact plate size  W2000×H2200 mm
 Impact speed resolution  ≤±5%
 Inclined angle  0~25° cylinder adjusting,deviation ±1°
 Controller  LCD panel
 Power supply  Three phase 380V,50/60Hz or specified by user
 Working condition  Temperature: 0~45℃,humidity ≤85% (Non-condensate)
 Machine dimension  L4600×W2200×H2600mm



GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test 0



GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test 1



GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test 2



GB/T 4857 200kg Package Impact Testing Machine with Inclined Plane Impact Test 3
