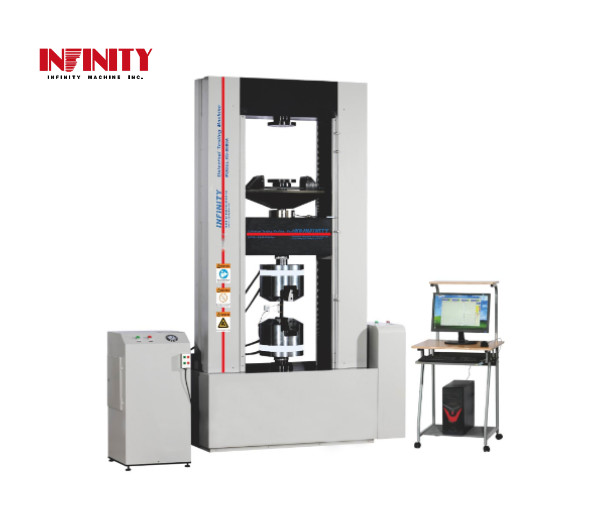

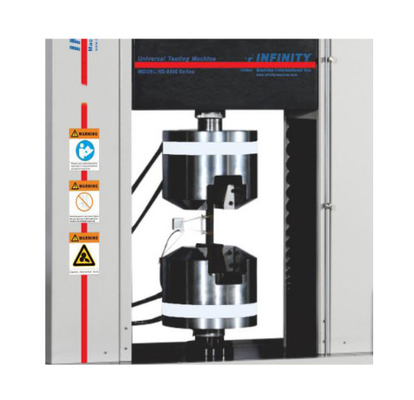

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002 600MM

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002 600MM

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM
600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM
600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8000A-600KN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max. Force: 600KN Measurement Accuracy: Class 0.5
Tensile Test Space: 600mm Effective Width: 600mm
Test Speed: 0.001~250mm/min Measurement Range: 0.2%~100%FS
Dimension: W1300×D900×H2550mm Weight: 3200Kg
High Light:

utm universal testing machine

,

universal test equipment

600KN Force UTM / Universal Testing Machines Controlled by Computer GB/T228 -2002



Model: RS-8000A-600KN



Purpose:



Controlled by a computer, the microcomputer-controlled electronic universal testing machine is widely applied in mechanical property tests of metal bar materials, metal pipes, metal sheet metal, metal profiled bars and composite materials and also applied in stretch, compression, stripping, shearing, avulsion, and bending tests equipped with special fixtures.



Many data can be printed and graphic output can be compared according to different data with high control precision and user-friendly operation; adopting modular design, all kinds of accessory fittings has a complete range of articles and can be matched flexibly. The machine is mainly applied in tests of stretch, compression, bending and other mechanical properties and can also realize constant stress, creep deformation, loosening, axial direction, radial direction and other multi -circulation tests.



Tensile strength, yield strength, elongation, specific elongation stress, specific stress elongation, elasticity modulus and other parameters can be automatically solved according to GB, JIS, ASTM, DIN and other standards.



Standard:



The testing machine is manufactured according to the standards including Electronic Universal Testing Machines (GB/T 16491-2008), General Requirements for Testing Machines (GB2611 -2007), Detection of Force Measuring System in Tensile and Compression Testing Machine, Technical Condition of Extensometer (JB6146-2007), and General Rules for the Examination of the Certificate of Manufacture Metrological Appliance (JJF1246-2010).



Testing Standard:



To meet Metallic Materials-Tensile Testing-Method of Test at Ambient Temperature (GB/T228 -2002), Metallic Materials- Bending Property Testing- Method of Test (GB/T14452-93) and other standard testing requirements.



Testable item:



Extensile test (standard configuration with clamps)

Stripping test (selective configuration with clamps)

Compression test (standard configuration with clamps)

Tearing test (selective configuration with clamps)

Bending test (selective configuration with clamps)

Shear test ((selective configuration with clamps)

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 0

Specification:



 Model  RS-8000A-600KN
 Max.force.  600KN
 Measurement accuracy  Class 0.5
 Tensile test space  600mm
 Effective width  600mm
 Test speed  0.001~250mm/min
 Measurement range  0.2%~100%FS
 Resolution ratio of indicating value  1/250000 of the maximum test force
 Deformation indication error accuracy  within the range of ±0.5% of indicating values
 Measurement range of deformation  0.2%~100%FS
 Deformation resolving power  1/500000 of the maximum deformation
 Displacement measurement accuracy  within the range of ±0.5% of indicating values
 Regulating range of control velocity  0.05%~5%FS/S
 Control accuracy  within ±0.5%, when velocity is ≥0.05%FS/S
 Test deformation parameter  within ±0.5%, when velocity is ≥0.05%FS/S
 Cross beam displacement parameter  within ±1%, when velocity is <0.01mm/min; within ±0.2%,  when the velocity is ≥0.01mm/min
 Control range of constant force, constant  deformation, and constant displacement  5%-100%FS
 Control accuracy of constant force,  constant deformation, and constant  displacement  A. when the velocity is ≥10%FS, it is within ±0.1%; B.  when the velocity is <10%FS, it is within ±1%



Software:



1. Software name: material test T7.02

(1) The stress-strain scope automatically shifts; testing speed automatically transforms, and automatically returns after completing tests.

(2) It has overload, over-current, overvoltage, under-voltage, over-speed, route and other multiple protections.

(3) Data results are derived in a crystal report form based on national standards at present.

(4) Language of software operating system: simplified English.

(5) Strength, displacement, stress and all other units can be calibrated as required in tests.



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 1



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 2



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 3



2. Software Feature:

High-accuracy: ±0.25%, high resolution; 1/500,000, the highest in the industry;

Programmable control: to realize load, location, deformation, time and other cycle control; (professional edition)

Adopt PHI-LIPS 32-bit ARM chips superior to DSP processing technology in the industry;

Collect and update curves and record test data at real time and many Report output printing forms;

Can do a retentivity (constant force) test; (professional edition)

Can do product low-cycle (repeated) fatigue tests; (professional edition)



3. Control mode:

(1) Computer software shall be set up with setting velocity, setting load breakage (fraction), run time and many other control modes

(2) Specially equipped manual operation box: used for location when it is convenient to revise and installing test pieces

(3) Automatically judge material fracture, conquassation and automatic stop and power return can be set up.



4. Curve category: vertical and horizontal coordinates of curves can be arbitrarily set.

Load-displacement, load-time, displacement-time.

Stress-strain, strain-time, stress-time.



5. Test data that can be provided:

Maximum strength, minimum strength, fracture value, top and bottom yield strength, tensile strength, compressive strength, elasticity modulus, elongation, maximum and minimum in stripping interval, average value etc. (Clients shall select before ordering)



Test report:



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 4



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



Our workshop:

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 5



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 6

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 7

600KN Force UTM Universal Testing Machines Controlled by Computer GB/T228 -2002  600MM 8



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
