| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-6900A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Driving Method Of Z Axis: | Servo Motor Of Japanese Panasonic | Max Load Of Z Axis: | 5kgf, 10kgf, 20kgf, 50kgf,100kgf |
|---|---|---|---|
| Range Of Driving: | 0~150mm | Test Range Of Load: | 0~100kgf (max) |
| Resolution Of Load: | 0.01kgf | Max Size Of Specimen: | W400xD250mm |
| Weight: | About 250kg | Size Of Machine: | W1400xD780xH1700mm |
| Highlight: | keyboard key tester,button pull test machine |
||

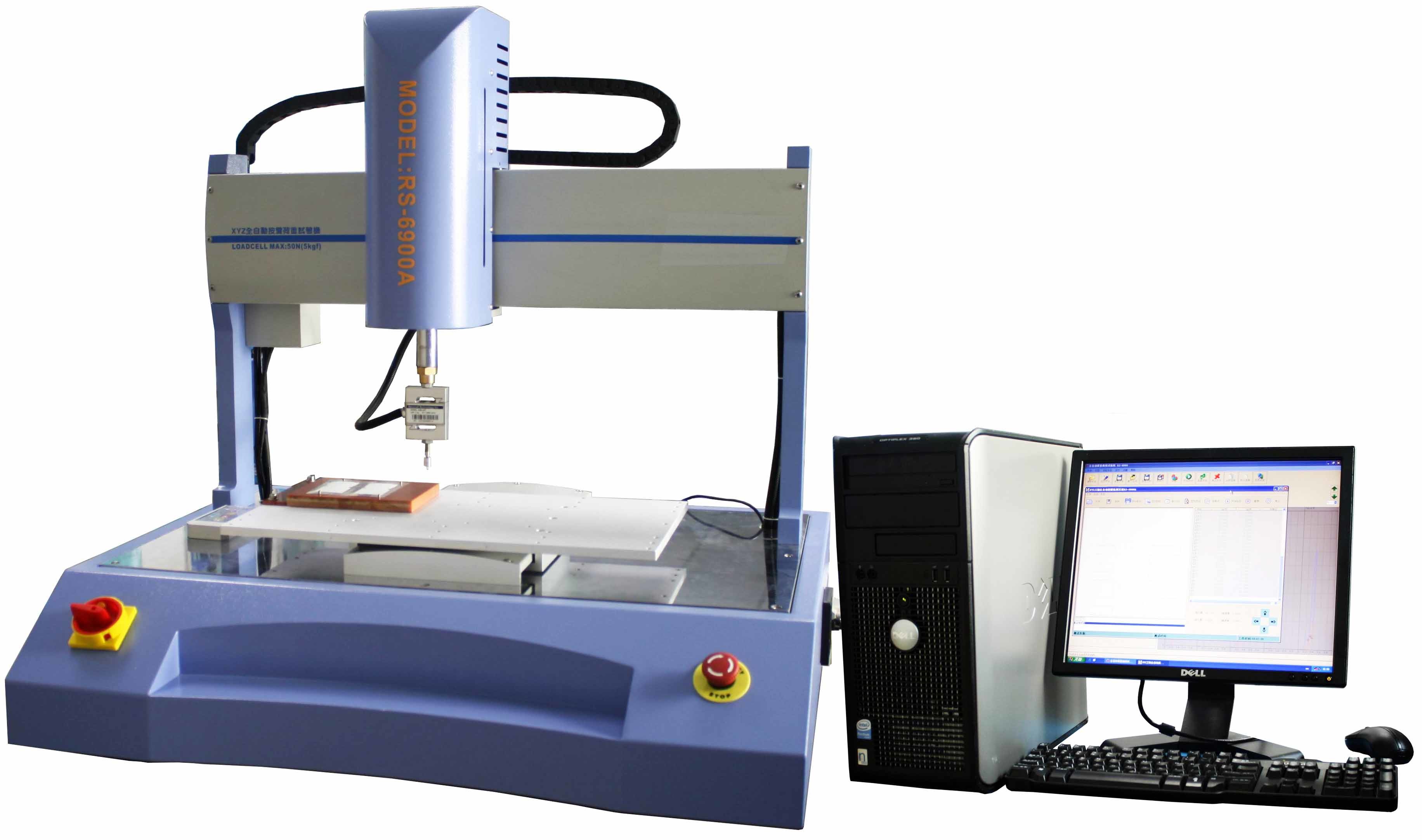

Servo Control Multi-function Keystroke Testing Machine 3points / 4points Test
Model: RS-6900A
Application:
This servo control Multi-function tester is suitable for the keystoke testing, the compression for product outer shell and LCD screen, the testing of optional 3 points bending, 4points bending. This tester can make the operational platform to work in the expected track by the movement controller, electrical motor and moving platform; the test software can automatically collect the data of load vs displacement, and create Load vs displacement curve accordingly, automatically save the testing data and automatically judge Pass or Failure.
Specialties:
1. The X-Y coordinate for testing the specimen can be manually selected in the computer software or directly input the AUTOCAD file in the system to get the coordinate . Can save the tested movement track and call to use next time, the data saving has no limit. These increase the testing efficiency and the accuracy of the coordinate.
2. Z axis is controlled by Micro measuring controller; collecting the data of the load on key by precise load cell made by U.S. TRANSCELL. This testing machine adopts high rigid steel as structure, and the surface treatment is with surface polishing and chromium electroplated.
3. X,Y,Z axis adopt servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and long durability.
Typical Application:
1. Can do the multi-points compression testing for product outer shell, LCD screen, and whole unit( can set the several tested points to be the coordinate, and it can auto test according to the coordinate, can set the compression load, compression time).
2. Can do the key stoke multi-point curve testing,
3. Can do the 3points bending, and 4points bending testing, the testing is controlled by software.
Technical parameters:
| Model | RS-6900A |
| Max load of Z axis | 100kgf |
| Driving method of Z axis | Servo motor of Japanese Panasonic |
| Range of driving(up and down) | 0~150mm or specified by user |
| Resolution of displacement | 0.001mm |
| Accuracy of displacement | ±0.03mm |
| Test range | 2Kgf, 5Kgf, 10Kgf, 20Kgf, 50Kgf, 100kgf ( optional ) |
| Unit (switchable) | gf, Kgf, N, Lb |
| Load accuracy | ±0.5﹪ |
| Resolution of load | 0.01gf(0.098mN) |
| Range of test speed | 0.1~200mm/min |
| Driving method of X-Y axis | AC Servo Motor |
| Control way | X: (right and left) Y: (forward and backward) |
| Driving range | X:0~460mm Y:0~200mm |
| Resolution of displacement | 0.001mm |
| Accuracy of displacement | ±0.05mm |
| Range of moving speed | 0.1~12000mm/min |
| Max size of specimen | W400xD250mm |
| Size of main unit | W1400xD780xH1700mm |
| Weight | About 250kg |
| Power supply | AC220V 10A or specified by user |
Picture:
