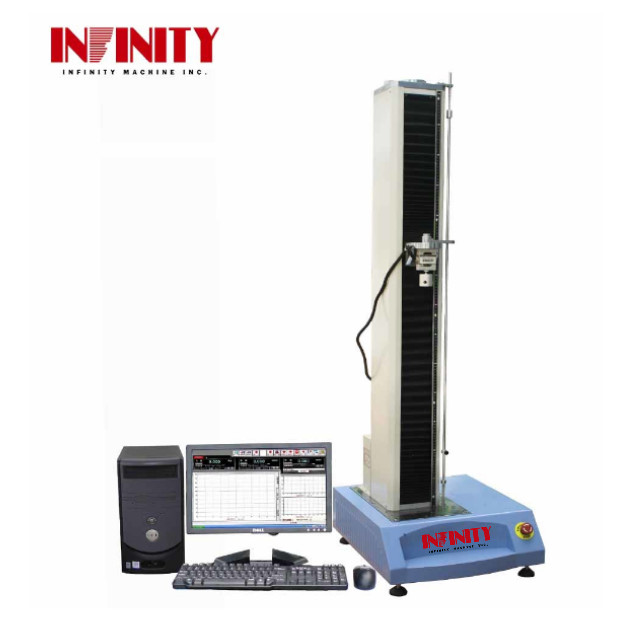

Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330

Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330

  • Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330
  • Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330
Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN Max. Stroke: 1000mm
Effective Width: 130mm Test Speed: 0.001~500mm/min
Speed Accuracy: ±0.5% Motor: AC Servo Motor
Software: Standard Software Power Supply: AC220V 10A Or Specified By User
Weight: About 140Kg Dimension: 500x600x1550mm
High Light:

computerized universal testing machine

,

universal test equipment



Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330



Model: RS-8010



Purpose:



This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable & thread, textile, net rope, non-woven fabrics ect nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, stretching, compression, bending, peeling, cutting, tearing tests.

RS-8010 is used for laboratory precise test, can do many data analyse and printing special sports)



Standards:



ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A- Single-Coated Tapes at 180° Angle)



ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method F-Single Coated Tapes at 90° Angle)



ASTM D1894-06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting



Typical applications:



1. Rubber tape peeling test at 90 / 180 °

2. Rubber / plastic tensile test

3. Plastic bending test

4. Wire / sheet tensile / bending test

5. Fabric tearing test

6. Drink package compression / bursting test



Applications:



Rubber tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal, paper, plastic, textile, wood, communication.



Specification:



 Model  RS-8010
 Purpose

 Test room for precision test, control by computer

 Capacity (optional)  50N,100N,200N,500N,200N, 1KN, 2KN, 5KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
 Load resolution  1/500,000
 Load accuracy  ±0.25%
 Stroke (exclude the grips)  650mm or 1000mm (optional)
 Effective width  130mm
 Test speed  0.001~500mm/min
 Load range  rangless
 Speed accuracy  ±0.5%
Stroke resolution  0.001mm
 Motor  AC servo Motor
 Software  Standard software
 Transmission rod  High accuracy ball screw

 Main unit dimension (WxDxH)

 500x600x1280mm (stroke at 650mm) or 500x600x1550mm  (stroke at 1000mm)

 Main unit weight  About 140Kg
 Power supply  AC220V 10A or specified by user



Package:



Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330 0



Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330 1



Servo Control Electronic Universal Testing Machine 5KN Capacity ASTM D3330 2
