| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8000P |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 4KN | Stroke: | 400mm |
|---|---|---|---|
| Effective Width: | 1000mm | Motor: | AC Servo Motor |
| Software: | Special Control Software | Weight: | 550 Kg |
| Dimension: | 1400x750x1650mm | Power Supply: | AC220V 10A Or Specified By User |
| High Light: | universal test machine,compression test equipment |
||

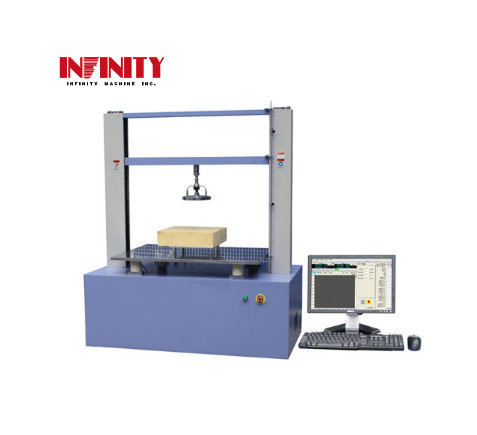

Polyfoam Compressive Strength Testing Machine Hardness Test Programmable
Model: RS-8000P
Application:
It is suitable for foam (foamed plastic) or auto seat sponge to do compression and fatigue test; it is also suitable for foamed plastic hardness (indentation method) test. It adopts programmable control software and servo motor drive, satisfying A, B and C three test methods stipulated by GB/T10807-2006, and it can output dedicated report according to the standard.
Standard:
GB/T10807-2006 “flexible foam polymeric material hardness test (compression method)”
ISO 2439: 1997,ASTM D3674, JISK6400-2004
Features:
1. It adopts 4 high precision load cells to test load, which is more accurate.
2. It adopts special sensor to automatically align zero, which is better in repeatability.
3. Test space is as big as 1000750mm, satisfying finished product test on auto seat.
4. Random delivery for various foam test clamps, satisfying requirements of all kinds of tests.
5. It has dedicated testing software, satisfying testing requirement of CI/lag loss ratio and automatically completing the whole testing process after aligning zero.
Specification:
| Model | RS-8000P |
| Capacity (optional) | 4KN ( 4x1000N or specified by user ) |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 |
| Load resolution | 1/500,000 |
| Load accuracy | ±0.5% |
| Stroke (exclude the grips) | 400mm or specified by user |
| Effective width | 1000mm |
| Test speed | 0.001~600mm/min |
| Speed accuracy | ±0.5% |
| Stroke resolution | 0.001mm |
| Motor | AC servo Motor |
| Software | Special control software |
| Load range | Rangless |
| Transmission rod | High accuracy ball screw |
| Main unit dimension (WxDxH) | 1400x750x1650mm |
| Main unit weight | 550 Kg |
| Power supply | AC220V 10A or specified by user |
Grip:
