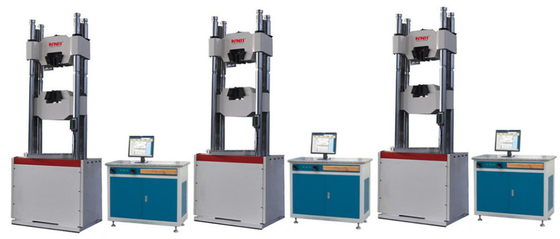

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity IN-2000EY 40KN~2000KN

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity IN-2000EY 40KN~2000KN

  • High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN
  • High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN
High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IN-2000EY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 2000KN (200T) Effective Range: 40KN~2000KN
Force Accuracy: ±1% Deformation Testing Accuracy: ±0.5%
Max Moving Speed Of Piston: 60mm/min. Displacement Measurement Resolution: 0.01mm
The Max Tension Space: 1000mm The Max Compression Pace: 900mm
Flat Sample Clamping Thickness: 0~60mm Flat Sample Clamping Width: 100mm
High Light:

computerised universal testing machine

,

hydraulic testing machine

,

Microcomputer Tensile Testing Machine

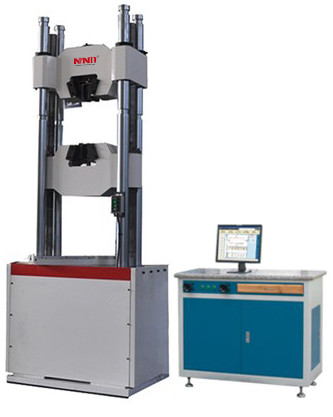

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity



Model: IN-2000EY (200T)



Purpose:



Microcomputer screen display hydraulic UTM mainly adopts four-standard column main machine of underneath-type oil cylinder, used for tensile, compression, bending and shearing test for metal and non-metal materials. It applies to various fields including metallurgy, construction, light industry, aviation, aerospace, material, institutions of higher education and scientific institutions, etc.

Its test operation and data process meet requirements of standard GB228-2002 “Material in room temperature: test method of metal tensile”.

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 0

Specification:



 Model  IN-2000EY
 Capacity  2000KN (200T)
 Testing force effective range  40KN~2000KN
 Force accuracy  ±1%
 Deformation measurement

 Gauge length of standard configuration is  50mm,  maximum  deformation is 10mm

 Deformation testing accuracy  ±0.5%
 Max moving speed of piston  60mm/min.
 Displacement measurement resolution  0.01mm
 The Max tension space  1000mm
 The Max compression pace  900mm
 Flat sample clamping thickness  0~60mm
 Flat sample clamping width  100mm
 Clamping diameter of Round specimen   φ15~φ70mm
 Compression plate  204mmX204mm
 Support roller space of bending  test  450mm
 Width of support roller  160mm
 Piston stroke  250mm
 Diameter of pivot  50mm
 Clamping way  Hydraulic clamping
 Amplifier

 Programmable amplifier plug-in mounted inside the PC,

 automatic zero setting and calibrating

 Dimension

 Machine:1400x850x3300mm

 Oil source: 1140x700x930mm

 Weight  About 7500kg
 Power supply  Three phases AC380V 50Hz or specified by user

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 1
Description Schemes:



1. The main machine:

The main machine adopts underneath type of oil cylinder, tensile space is above the main machine, compression and bending space is between the lower cross beam and working station.

Solid four-standard column and two-lead screw structure design, so the whole machine has strong stability.

Movable cross-beam is designed with unique clearance elimination mechanism, avoiding test error caused by cross-beam stress of B type machine.

There designs a sliding plate of 10mm between jaw and jaw splint, effectively extending service life of jaw splint.

Test space can be divided into three segments for adjustment according to length of specimen, the highest point is suitable for the use of peripheral equipment like high temperature furnace.



2.Drive system:

Lower cross beam lifting adopts hydraulic motor, chain, and lead screw pair drive to realize adjustment of tensile and compression space. No matter in the state of adjusting space or in the test process, it both reaches operation if zero clearance.



Screen display software:



It conforms to more than 30 relevant regulations of national standards, like GB228-2002,GB228-2010.



         High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 2    High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 3





1. Computer control system: it has advantages of high integration level, stable performance and convenient adjustment. Can carry out real-time

    collection for test data and real-time dynamic display for test characteristics curve; test data file can be saved by the method of Access

    common database or SQLserve large database, which is convenient for achieving users’ resource sharing and network management, and

    reanalysis.

    This software have an easy access to various word2000 reports users defined, solving the problem that different users or one same user has

    different requirements for the reports in different times, and it can deal with original data of test force, displacement and time and their derived

    curves.

2. Batch test can realize classified display for curve, and curve follows automatically.

3. Monitoring test process: can realize real-time display for various parameters like test force, displacement and curves in the test.

4. Hierarchical management function for software permissions: to improve safety of software and data, this software can realize hierarchical

    management function by setting different passwords protection.

5. Result representation function: after finishing and saving test, users can open it at any time in the future and reanalyze test data according

    to need.

6. Result contrast function: can observe various test curve at the same time, and can realize Characteristics contrast of specimen to be analyzed

    by superposition and fractionated gain of various curves.

7. Force interface: force channel interface and test software can equip all kinds of sensors according to users’ need, and can conduct mark,

    parameters modification and normal test.



Basic configuration of system:



1. Main machine of tester (Main machine adopts underneath type of oil cylinder)

2. Integrated oil source

2.1 High-pressure pump

3. Two-path programmable amplifier, resolution is 1/300,000

4. High-precision load cell

5. Guyed displacement measurement system

6. Full set attachment grips include: tensile fixture & compression fixture & bending fixture

7. Dedicated control software

8. Lenovo computer

9. HP A4 ink-jet printer

10. Technical data: Operation manual

Our workshop:

High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 4



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



High Pressure Hydraulic Tensile Testing Machine With 2000 KN Capacity  IN-2000EY  40KN~2000KN 5

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
