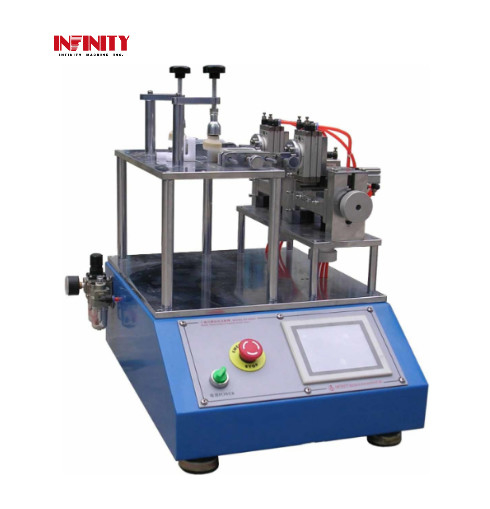

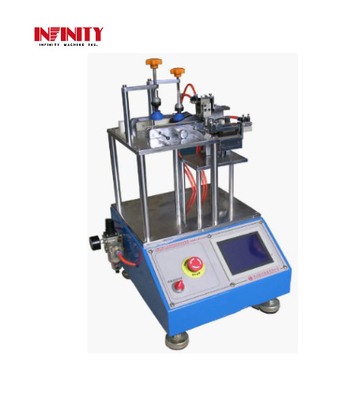

Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations

Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations

  • Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations
  • Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations
Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6600 / RS-6600G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Adjust Range: X-axis:0~10mm, Y-axis:0~45mm, Z-axis: 0~45mm Test Speed: 5~40times /min
Clamp Range: W100xH35xL120mm Dimension: 440x600x500mm
Weight: 45kg Power Supply: AC220V 50Hz 3A Or Specified By User
High Light:

phase rotation tester

,

electronic tester



Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations



Model: RS-6600 / RS-6600G



Application:



Apply for the insert and drawing test of all kinds of connectors like network card, Mobile charger & headset, touchpen, CD/MP3, USB, to check the connector quality by N times testing.



Feature:



Adopt touching screen and PLC control, English interface, easy operation and long life time.

With X-Y axis center adjusting device, make sure the precision of testing.

Can take insert & drawing testing and the rotating testing at the same time.



Specification:



 Model  RS-6600  RS-6600G
 Test item  2 set mobile phone charger insert  & drawing test  2 set of headset of mobile phone  insert & drawing test
 Test adjust range  X-axis:0~10mm, Y-axis:0~45mm, Z-axis: 0~45mm
 Test speed  5~40times /min
 Clamp range  W100xH35xL120mm
 Test cycle setting  1~999999times (can set)
 Dimension (WxDxH)  440x600x500mm
 Weight  45kg
 Power supply  AC220V 50Hz 3A or Specified by user





Fixture:



Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations 0
