Home ProductsKeyboard Button Tester

Mobile Phone Keystroke Force Measurement Equipment with Eight Station

Mobile Phone Keystroke Force Measurement Equipment with Eight Station

  • Mobile Phone Keystroke Force Measurement Equipment with Eight Station
  • Mobile Phone Keystroke Force Measurement Equipment with Eight Station
Mobile Phone Keystroke Force Measurement Equipment with Eight Station
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8330C-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Amount: 8 Stations Test Load: 100gf-2000gf (or Specified)
Test Speed: 1-60 Times/min Or 30-240 Times/min Adjustable Table Height: 0-100mm
Dimension: 1350x460x1100mm Weight: 260kg
Test Cycle: 1~999999times (cycle) Power Supply: AC220V 50Hz 5A Or Specified By User
High Light:

force testing machine

,

button pull test machine



Mobile Phone Keystroke Force Measurement Equipment with Eight Station



Model: RS-8330C-8



Purpose:



This equipment is applied for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.



Features:



1. 3 & 5 & 8 testing stations can be optional.

2. Every testing station is independent control & working: times/conduct/on/off/speed &etc.

3. Every testing station can test 3 keys at one time, pressure is adjustable and with calibrating system to control the hitting force.

4. Adopt Japan Panasonic motor driver, with low noise and long testing life time.



Specification:



 Model  RS-8330C-8
 Test amount  8 stationa
 Test load  100gf~2000gf (or specified)
 Test speed  1~60times/min or 30~240times/min (or specified)
 Test cycle  1~999999times (cycle)
 Adjustable table height  0~100mm
 Dimension (WxDxH)  1350x460x1100mm
 Weight  260 kg
 Power Supply  AC220V 50Hz 5A or specified by user



Picture:

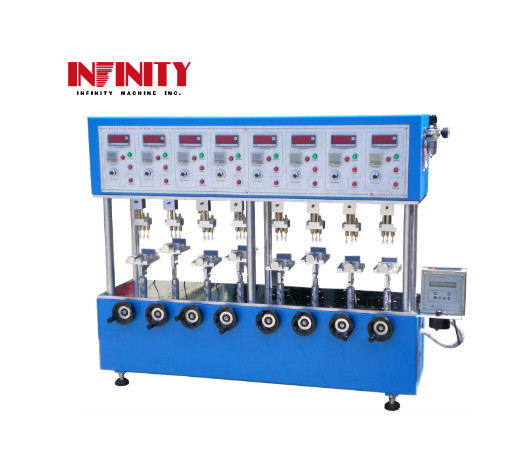

Mobile Phone Keystroke Force Measurement Equipment with Eight Station 0

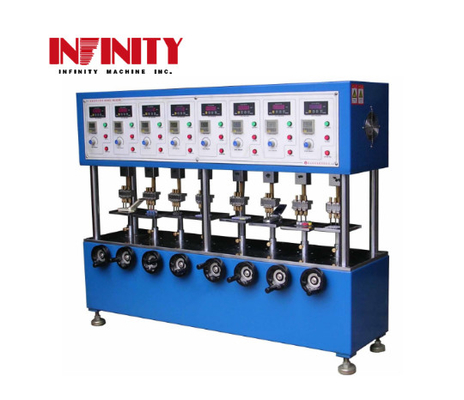

Mobile Phone Keystroke Force Measurement Equipment with Eight Station 1
