Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz

Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz

Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Amount: 1 Pcs Test Load: 100gf~2000gf (or Specified)
Test Speed: 1~60times/min Or 30～240times/min Test Cycle: 1~999,999times (cycle)
Dimension: 420x480x550mm Weight: 55kg
Adjustable Table Height: 0~100mm Power Supply: AC220V 50Hz 5A Or Specified By User
Highlight:

keyboard key tester

,

button pull test machine



Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz



Model: RS-8330





Purpose:



Apply for key life time test of mobile, telephone, in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life time testing.





Features:



Can test mechanical life span & electrical life span (on/off conductive test)

Every testing station is independent control & working: times/conduct/on/off/speed & etc.

Every testing station can test 3 keys at one time, pressure is adjustable, and with calibrating system to control the hitting force.



Specification:



 Model  RS-8330
 Test amount  1set
 Test load  100gf~2000gf (or specified)
 Test speed  1~60times/min or 30～240times/min (or specified)
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  420x480x550mm
 Weight  55 kg
 Adjustable table height  0~100mm
 Power supply  AC220V 50Hz 5A or specified by user

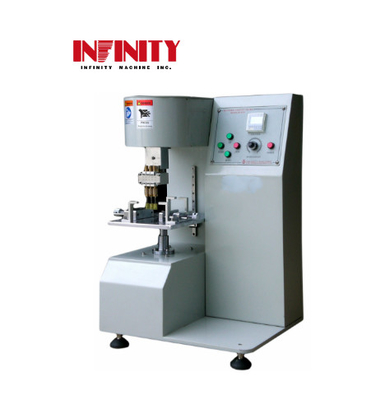

Picture:



Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz 0
